50
6. Inspection/Maintenance

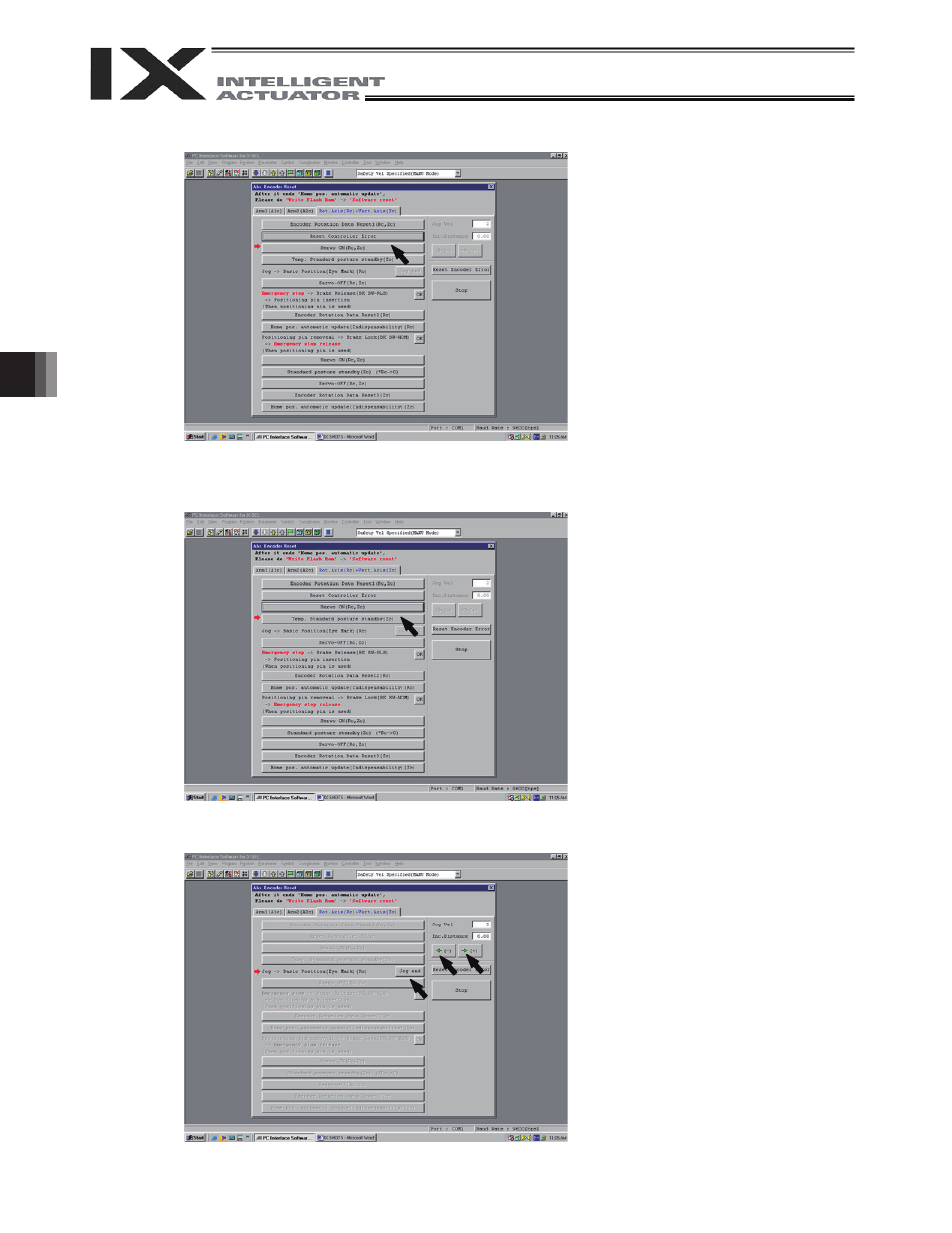

(3) Click the “Servo ON” button.
(4) Click the “Temp. Standard posture standby” button.
x The vertical axis returns to its home position. Exercise caution so as not to be injured by the axis during
movement.
(5) Jog the rotational axis to the reference position (see reference position drawing in step 8), and click the “Jog
end” button.
