21

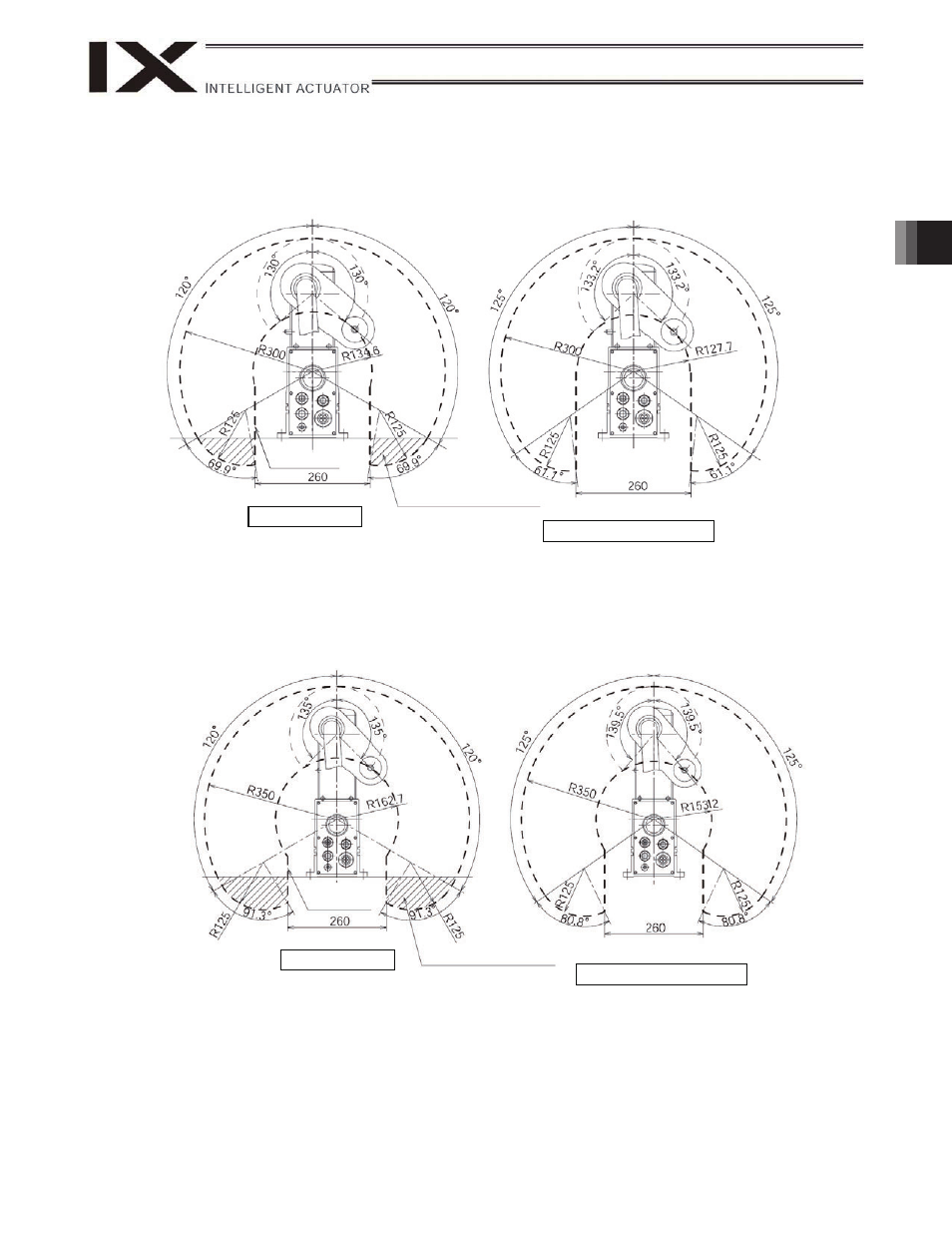

3. Robot Operation
Area
3 Robot Operation Area
IX-TNN3015H, IX-UNN3015H
IX-TNN3515H, IX-UNN3515H
Area of prohibited entry
Area of prohibited entry
Movement range
Range of mechanical stopper
Line of contact
with base
Pay attention to contact with
the mounting wall surface
Area of prohibited entry
Area of prohibited entry
Movement range
Range of mechanical stopper
Line of contact
with base
Pay attention to contact with
the mounting wall surface
