Cable Connection Locations

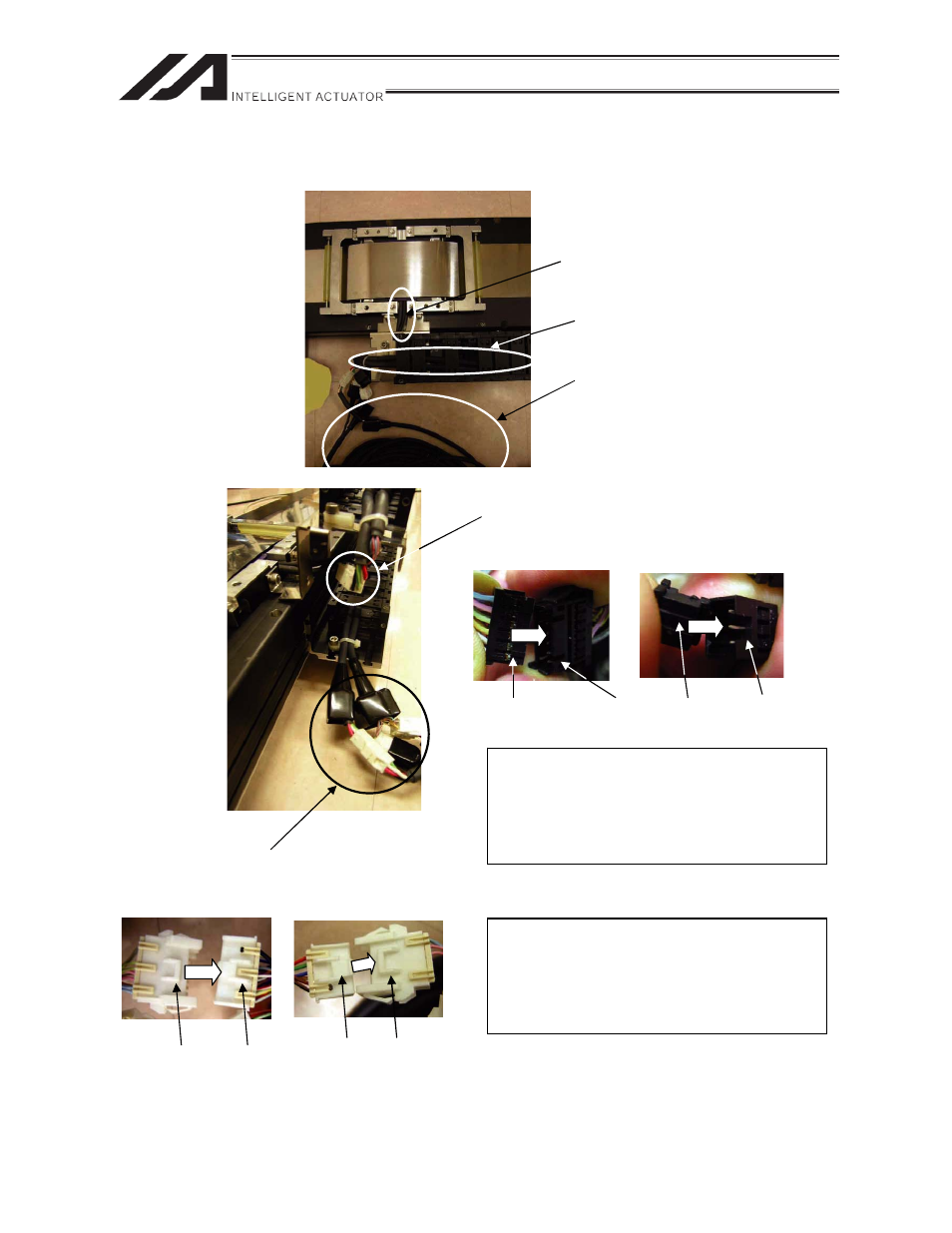

The connection locations of cables on the LSA-W21 linear servo actuator are shown below.
Cable in the slider
Encoder cable/motor cable
in the cable track
Encoder extension cable
Motor extension cable
Location where the cable in the slider is connected
to the encoder cable/motor cable in the cable track
(The cables are connected in the case. Remove the
case cover to access the connection location.)
Projection Cutout Projection Cutout
(Note) One side of each connector has a
cutout in the case of a male connector,
or a projection in the case of a female
connector. Insert the male connector
into the female connector after
confirming the connecting direction.
Location where the encoder cable/motor cable
in the cable track are connected to the encoder
extension cable/motor extension cable
(Note) One side of each connector has a
projection in the case of both a male
connector and female connector. Insert
the male connector into the female
connector after confirming the
connecting direction.
Projection Projection Projection Projection
