7.1 Installing the Actuator
Install the actuator on a machined surface or other flat surface of equivalent precision.
This linear actuator can be affixed on its top or bottom side.
Reamed holes for accepting positioning pins are provided at the back of the base.

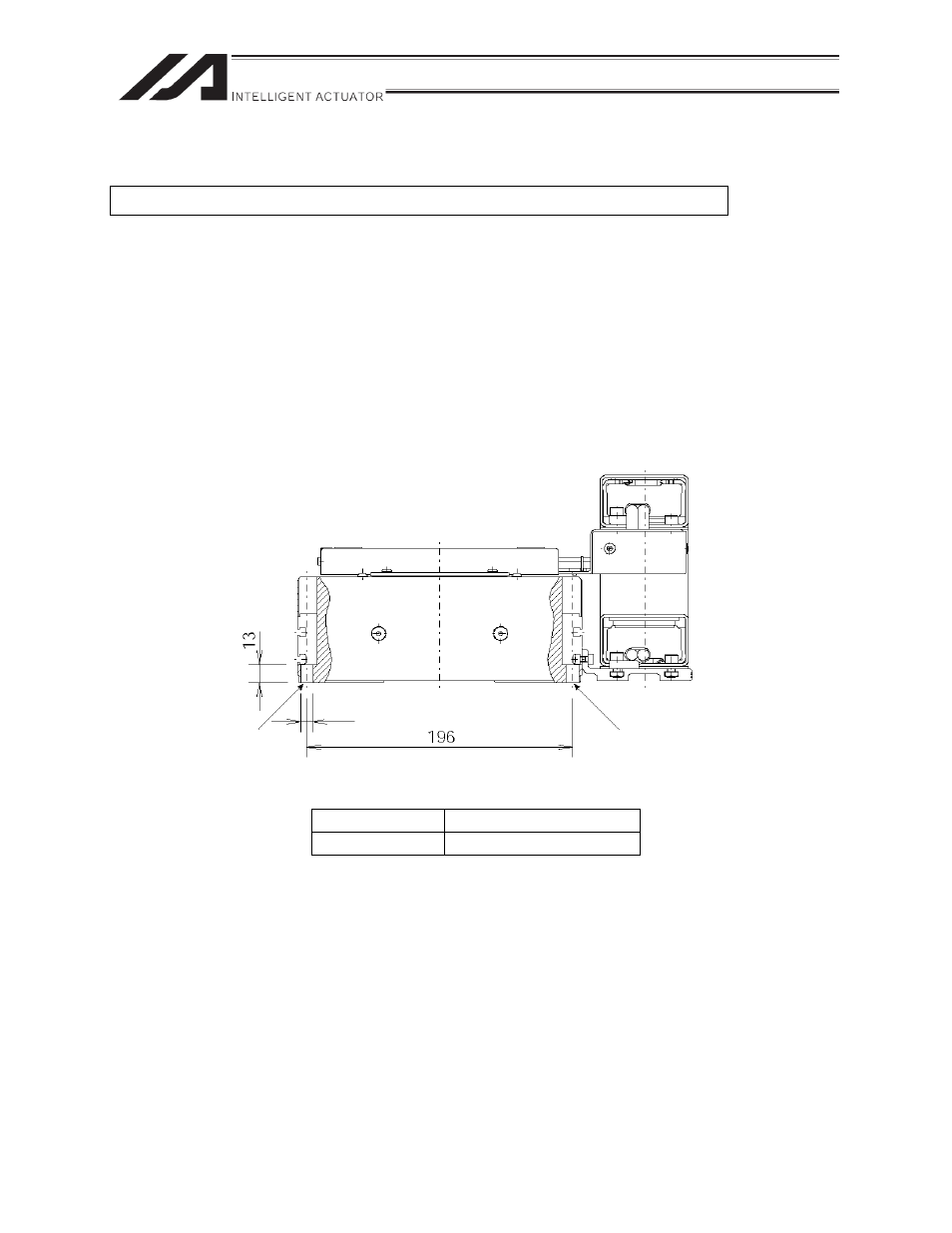

7.1.1 Affixing the Actuator on the Top Side of the Base
 The actuator base has through mounting holes. Use these holes to install the actuator.
When installing the actuator, use M8 bolts of strength category 10.9 or above, together with the supplied
dedicated washers.
Reamed holes for accepting positioning pins are also provided at the back of the base.
Applicable bolt Remarks
M8 Use a dedicated washer.
Through mounting hole Through mounting hole
