12
7.5 Installing a Load on the Slider
 The slider has tapped holes that can be used to affix a load.
The procedure to affix a load on the slider shall conform to the actuator installation procedure.
 Even when the slider is affixed to move the actuator body, the actuator is also installed using the tapped
holes.
 Two reamed holes are provided in the slider. Use these holes if the load must be installed/removed
repeatedly. To fine-tune the squareness, etc., use one of these reamed holes in the slider.
 Keep the screw-in depth to 20 mm or less.
 Do not screw in the bolts to a length exceeding the above value, as it will damage the side cover or other
part of the actuator.
Caution: When installing the load, do not let viscous substances such as adhesives and
paints attach to the stainless sheet or apply force only to a specific part of the
actuator to dent the affected part. They can lead to slider malfunction or sheet
damage.

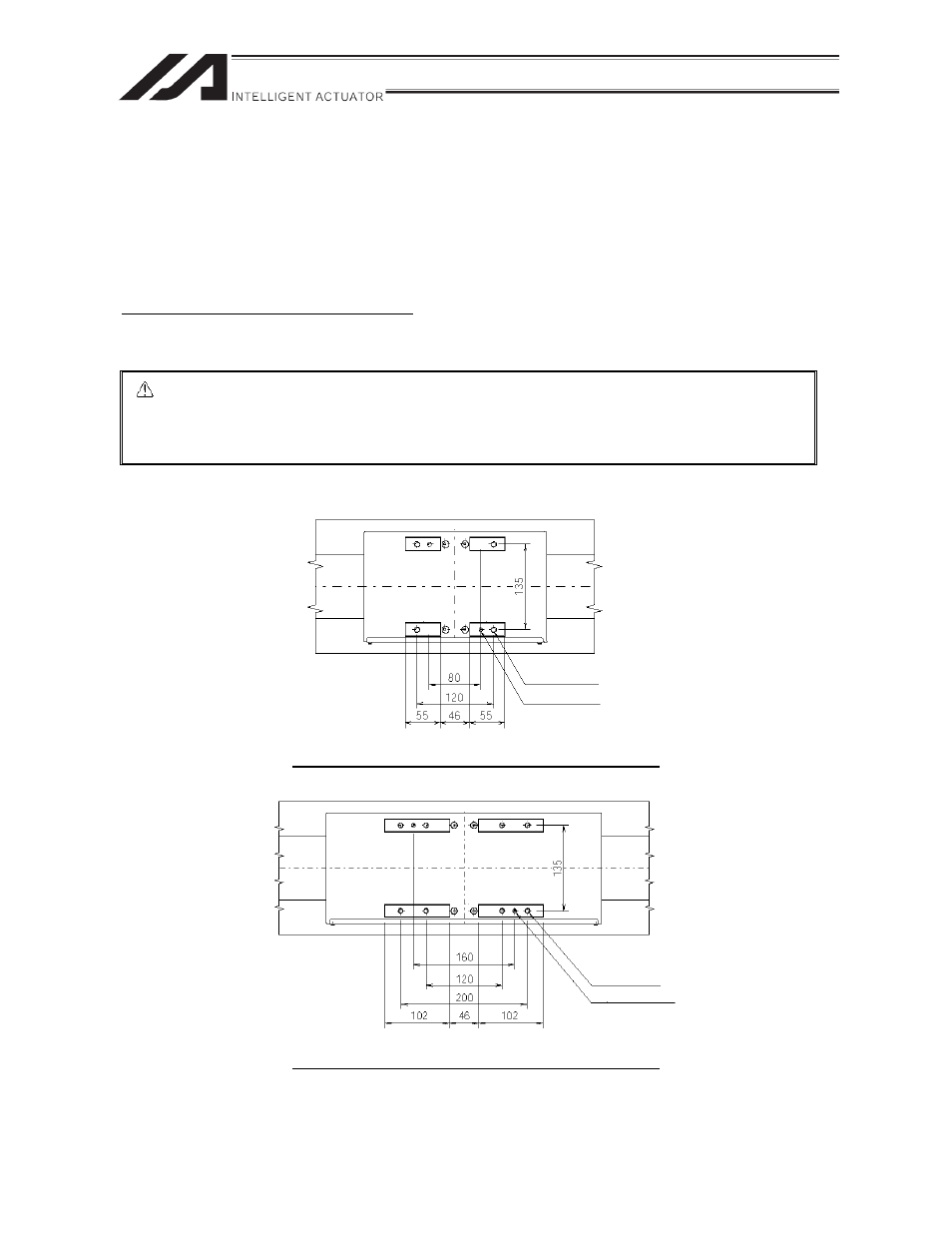

Installation dimensions for LSA-W21SS/LSA-W21SM slider
Installation dimensions for LSA-W21HS/LSA-W21HM slider
4-M8, depth 20
2-
6H7, depth 10
8-M8, depth 20
2- 6H7, depth 10
