4. Caution for Operation
49
4. Caution for Operation䎃
x

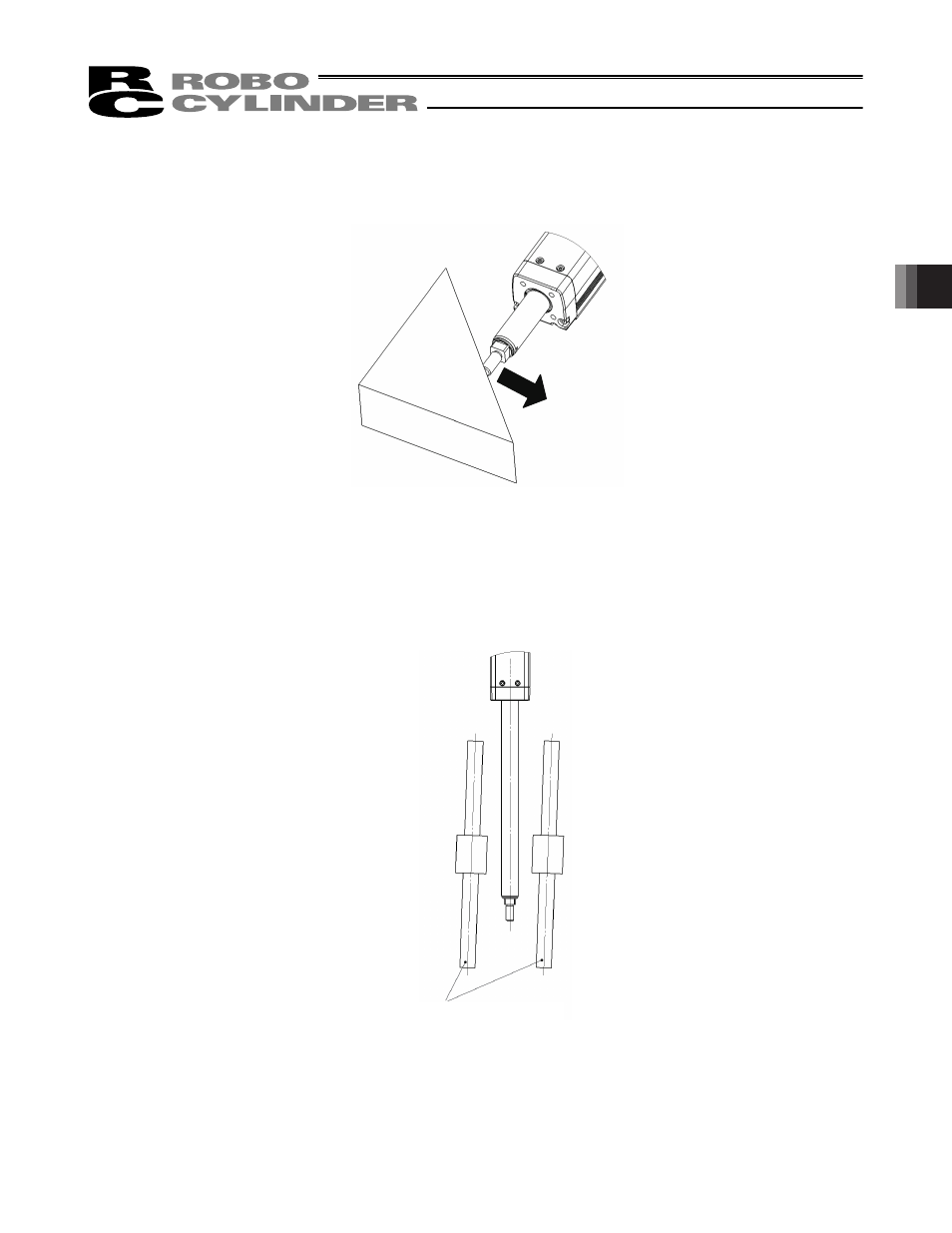

When the reaction force against the pressing operation is the side㵨way force, make sure it would not exceed
the allowable load.
x
When connecting the rod to external guides, be careful on the parallelism of the guides to the rod. When
connecting and fixing the rod to external guides, be careful not to apply excess side㵨way load to the rod
because of the assembly variation. For the connection of the rod and guides, have a component such as a free
joint to accept the assembly variation.
External Guide
Be careful on the direction of the reaction force against the pressing operation.
