9

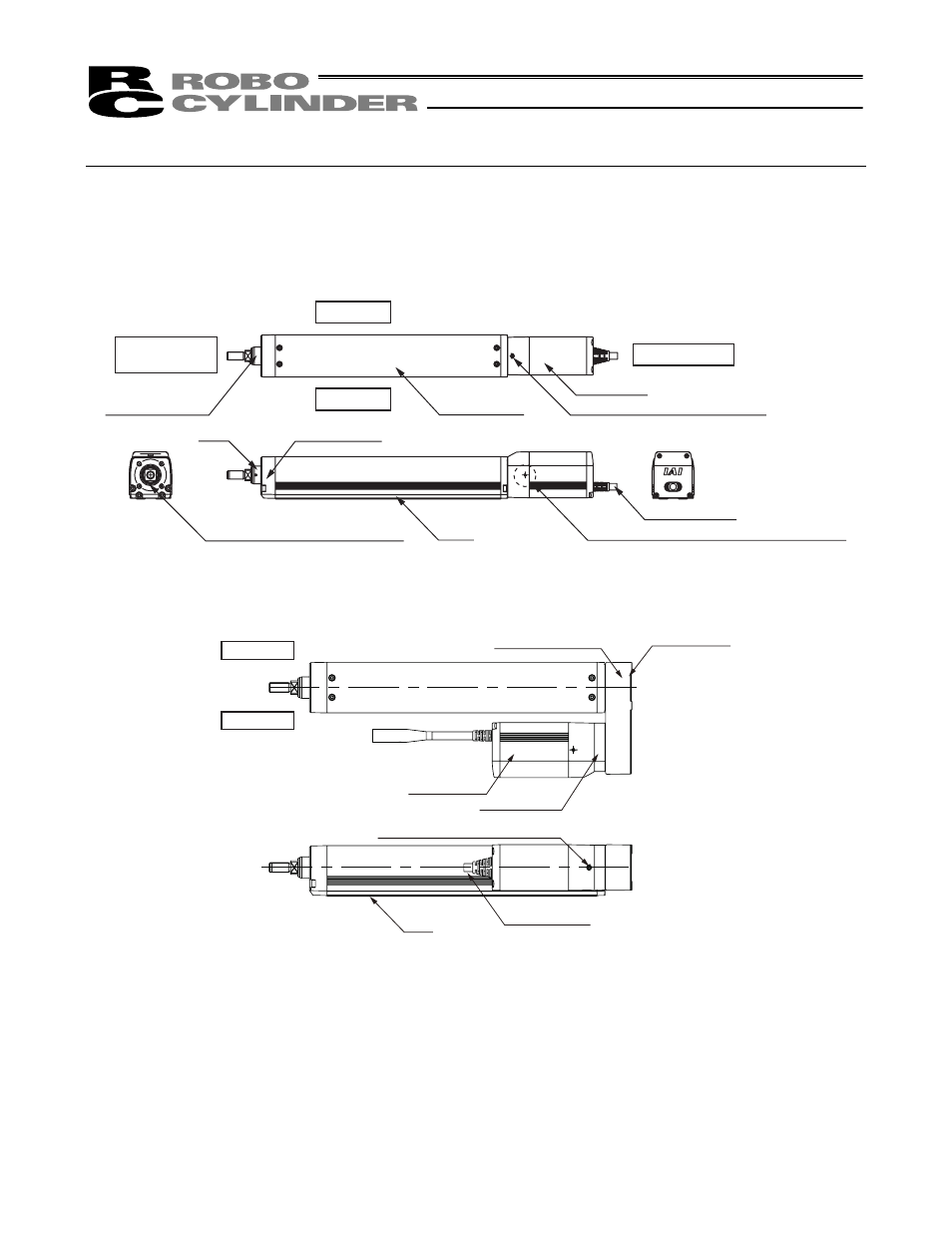

Names of the Parts
In this Operation Manual, the left and right sides are indicated by looking at the actuator from the motor end, with
the actuator placed horizontally, as shown in the figure below.
1. Motor Straight Type
Rod-Tip Adapter
Actuator Cable
Rod
Frame Cover
Base
Motor Unit
Screw for Motor Unit Attachment
Tapped Hole for Ground Cable Connection
Front Housing
Scraper (Oprtion equipped type)
Opposite Side
of the Motor
Motor Side
Right Side
Left Side
2. Motor Reversing Hollowed Shaft Type
Actuator Cable
Base
Motor Unit
Screw for Motor Unit Attachment
Pulley Cover
Right Side
Left Side
Reversing Bracket
Pulley Bracket
The direction of the motor is either left reversed: ML (shown in figure above) or right reversed: MR.
