3. Connecting with Controller
48

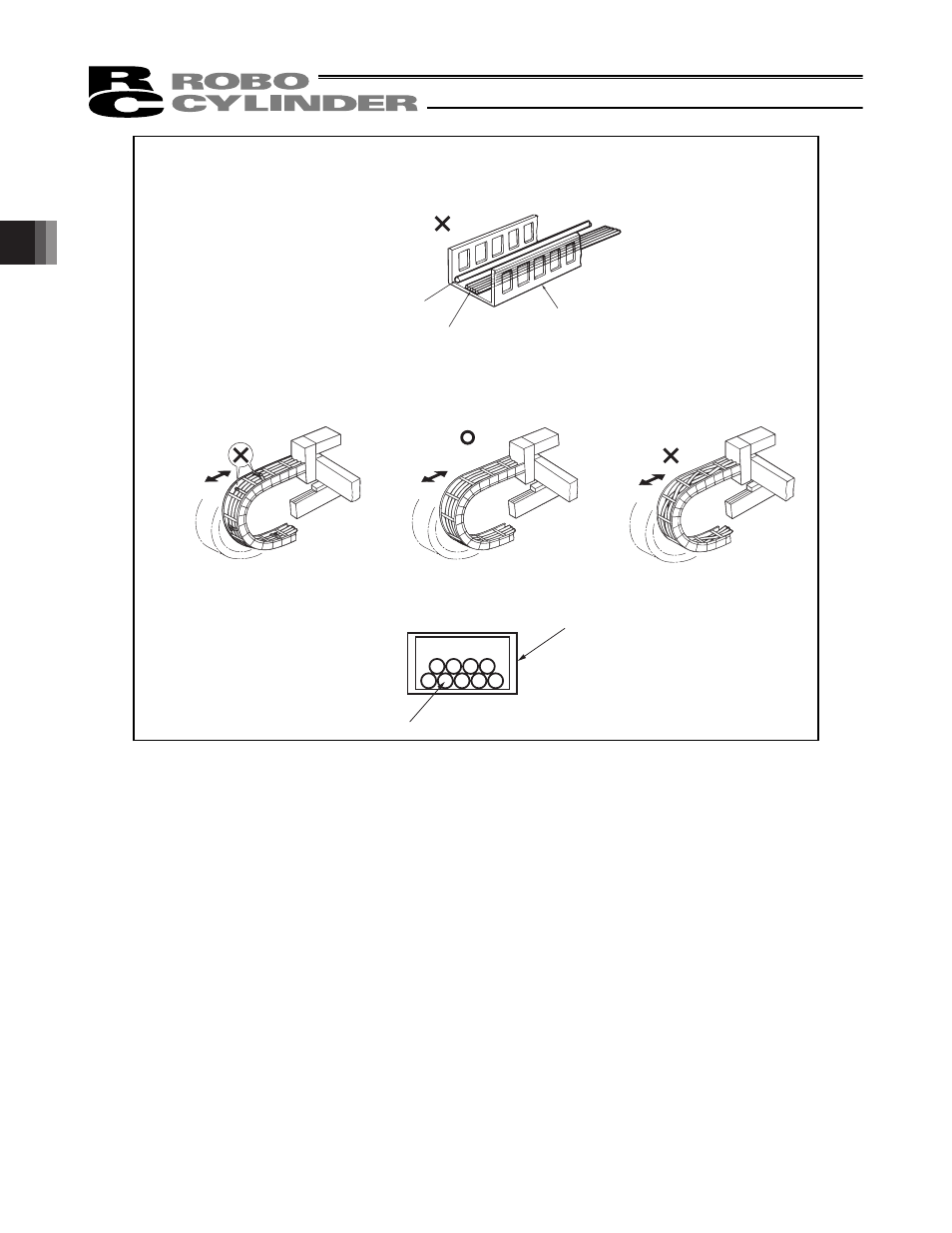

• PIO line, communication line, power and driving lines are to be put separately from each
other and do not tie them together. Arrange so that such lines are independently routed in
the duct.
Power Line
Duct
I/O Line
(Flat Cable, etc.)
• If using a cable track, arrange the wiring so that there is no entanglement or kink of the
cables in the cable carrier or flexible tube, and do not bind the cables so that the cables
are relatively free. (Arrange the wiring so the cables are not to be pulled when bent.)
• The occupied volume rate for the cables, etc., inside the cable track should be 60% or
less.
Cable
Cable Track
