2. Installation
38

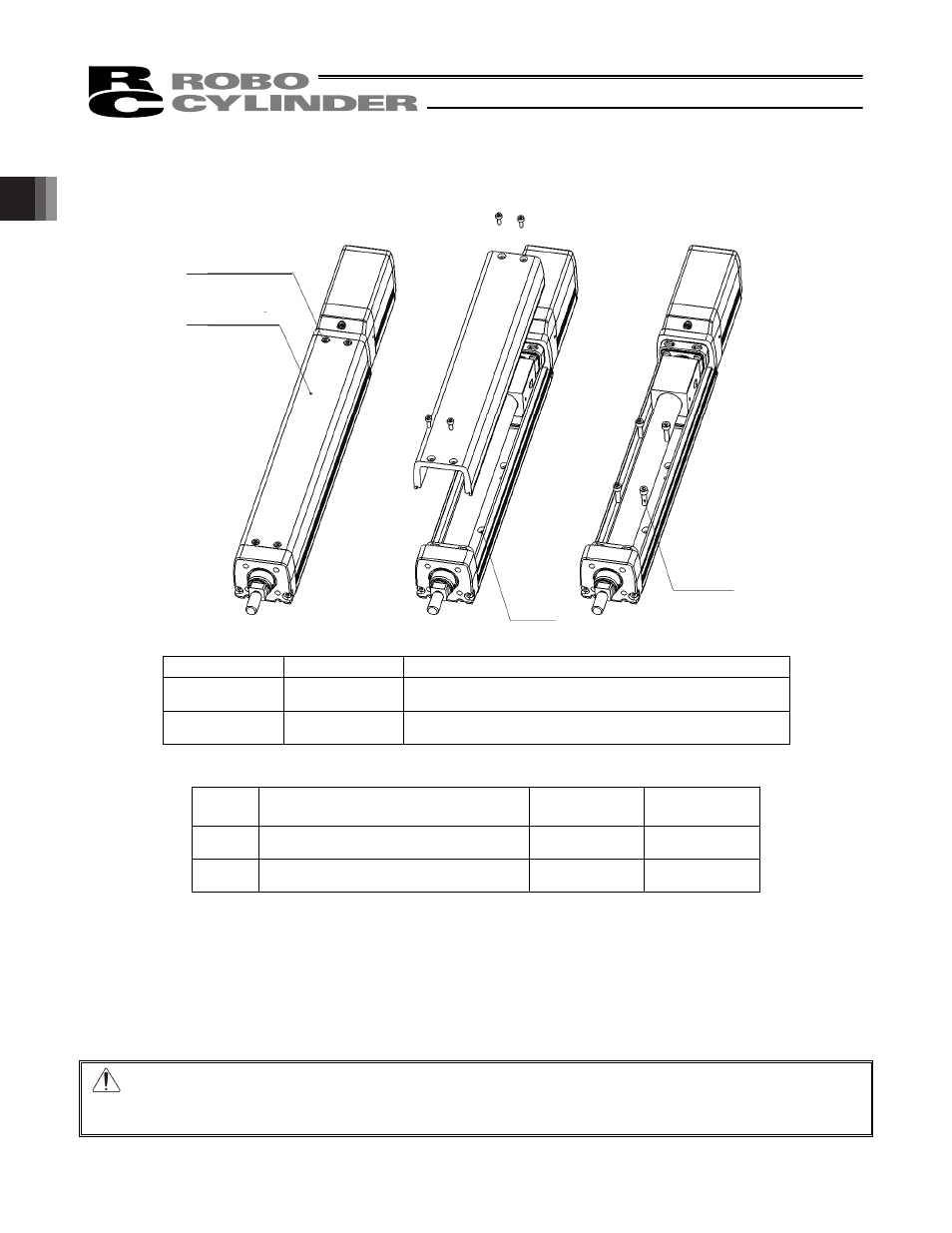

[2] Using the Mounting Holes on the Top of the Base
There are through holes equipped on the base so the unit can be attached from the top of the base.
Detach the side covers on both sides when installing.(Remove 4 hex socket head cap screws.)
Mounting Screw
Frame Cover
Frame Cover
Holes
Mounting
Screw
Mounting
䎃
When affixing the frame cover, tighten the screws with the tightening torque described below.
Model Name Screw Diameter Tightening Torgue
RA5C
RA5R
M3 0.89N㨯m (0.9kgf㨯m)
RA6C
RA6R
M4 2.07N㨯m (0.21kgf㨯m)
䎃
Apply the socket head cap screw indicated in the table below suitable for the platform material.
Model
Name
Through Holes Mounting Screw Tightening Torque
RA5C
RA5R
I 4.5 drilled hole, I8 counter boring depth 4.5 M4
1.76N㨯m
(0.18kgf㨯m)
RA6C
RA6R
I 4.5 drilled hole, I8 counter boring depth 4.5 M4
1.76N㨯m
(0.18kgf㨯m)
䎃
Tightening screws
x Use hexagonal socket head bolts for the male threads for installing the base.
x Use of high–tension bolts meeting at least ISO 10.9 is recommended.
x For the effective engagement length between the bolt and female thread, provide at least the applicable value
specified below:
Female thread is made of steel material ĺ Same length as the nominal diameter
Female thread is made of aluminum ĺ 1.8 times of nominal diameter
Caution: Pay attention when choosing the screw length. In case that insufficient length of screws is chosen,
it may cause such problems as the strength not being enough on the actuator attachment,
interference with driving part, drop in accuracy performance and unexpected accidents.
