2. Installation
36
2.3 How to Installation
This chapter explains how to install the actuator on your mechanical system.
2.3.1 General Rules on Installation
Follow the information below when installing the actuator, as a rule.
Do pay attention to these items (except with custom-order models).
{ : Possible ٌ : Daily inspection is required u : Not possible
Model
Horizontal
installation
Vertical installation Sideway installation
Ceiling mount
installation
RA5C, RA6C
RA5R, RA6R
{ { { {

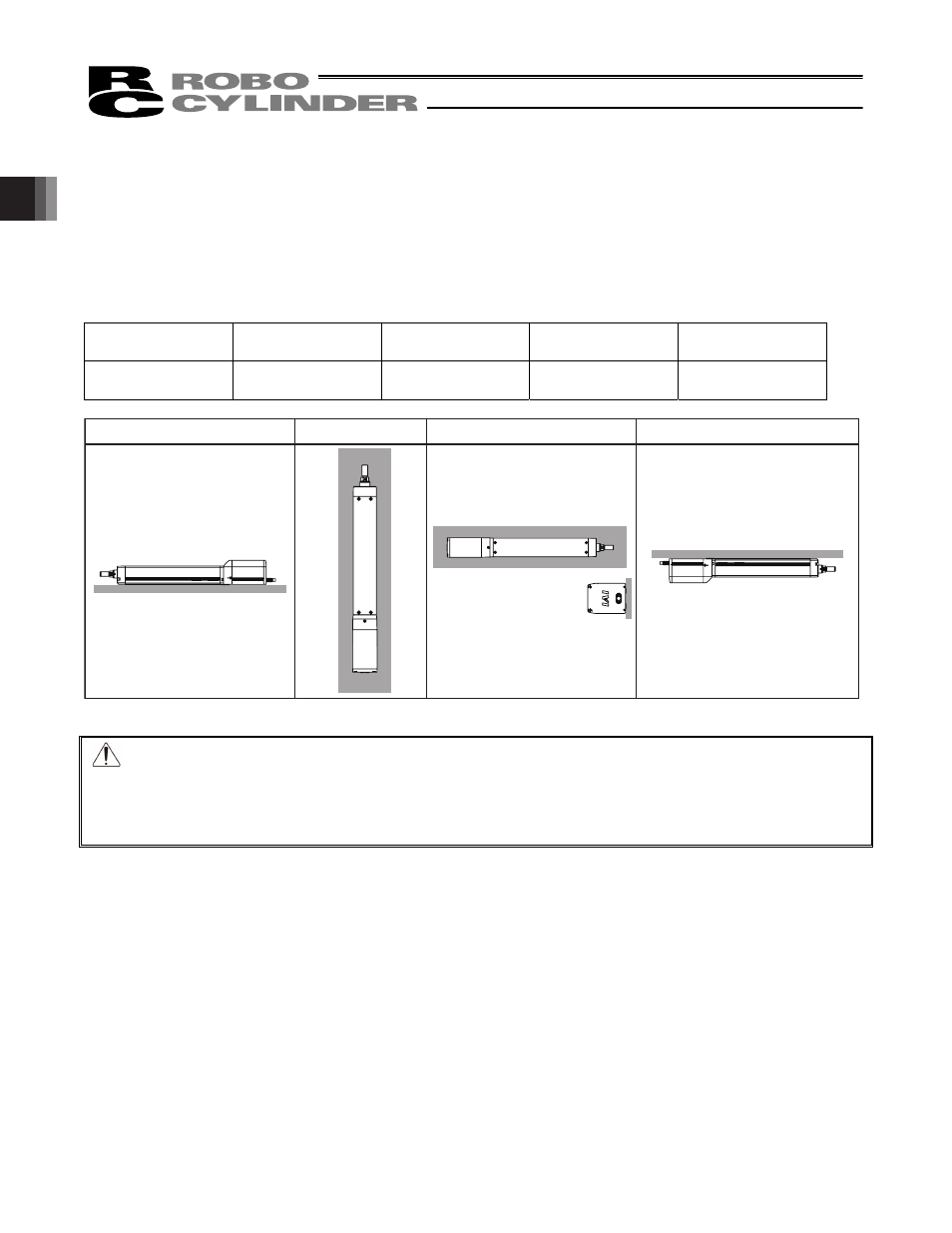

Horizontal Vertical Sideways Ceiling mount
Caution: When the unit is installed vertically oriented, attempt to put the motor up unless there is a special
reason. Putting the motor on the lower side would not cause a problem in an ordinary operation.
However, it may rarely cause a problem, when it is not operated for a long period, depending on
the surrounding environment (especially high temperature), caused by the grease being
separated and the base oil flowing into the motor unit.
