1. Checking the Product
27
Ɣ RA6C, RA6R
[N]
Current Limit Value Lead 4 Lead 8 Lead 16 Lead 24
20% 312 156 78 52
30% 469 234 117 78
40% 625 312 156 104
50% 781 391 195 130
60% 937 469 234 156
70% 1094 547 273 182
* These are the reference values at 20mm/s of pressing speed.

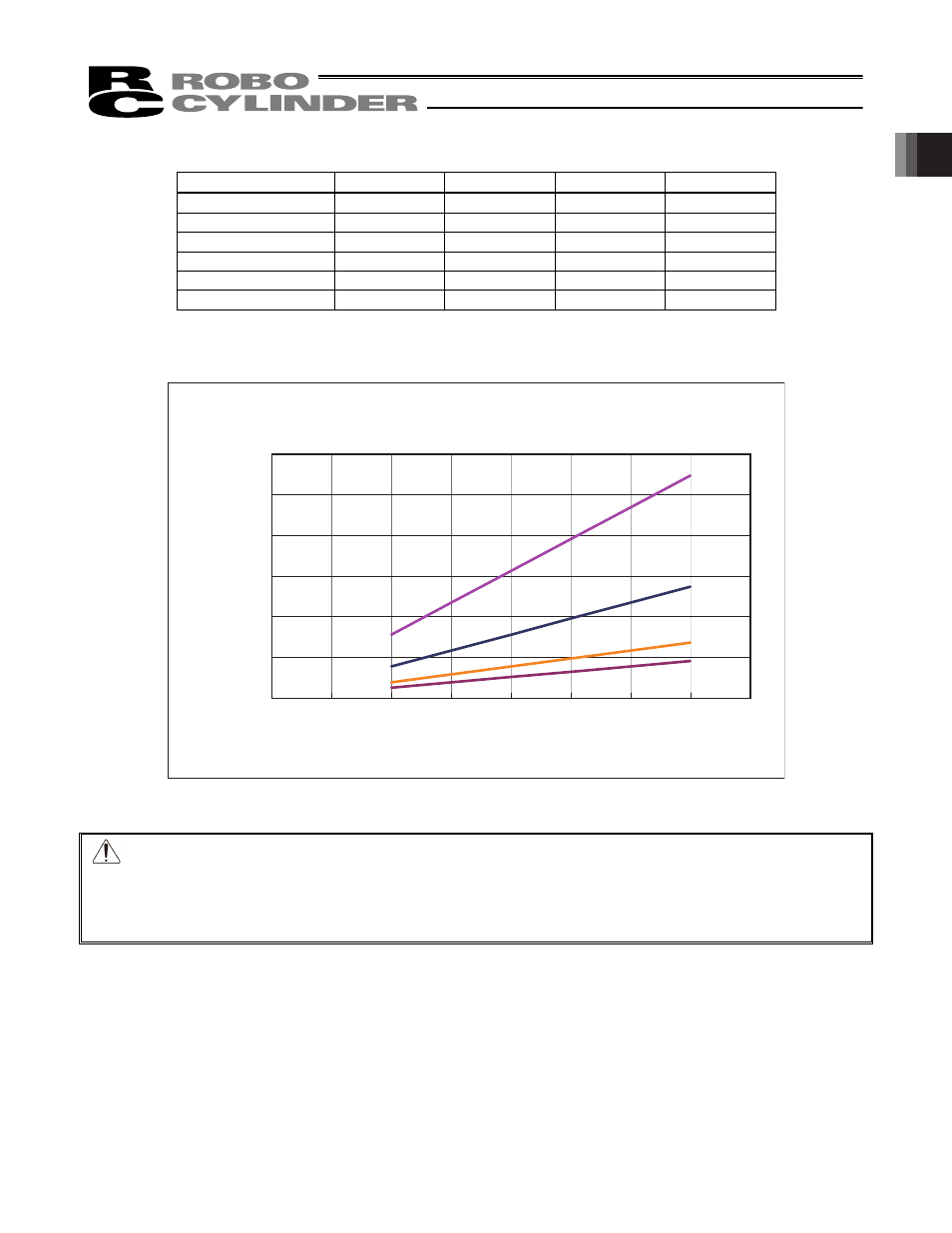

RA6C, RA6R Current Limiting Values and Pressing Force
Pressing Force [N]
Current-Limiting Value [%]
0
200
400
600
800
1000
1200
0 10 20 30 40 50 60 70 80
Lead 8
Lead 16
Lead 24
Lead 4
Caution: (1) The relation of the pressing force and current limiting value is a reference. There will be a little
variance in the actual pressing force.
(2) If the current limiting value is low, the pressing force may largely vary.
(3) The movement speed at the pressing operation is fixed to 20mm/s.
The graph shows the values when pressing with 20mm/s, and it differs if the speed changes.
