1. Checking the Product
26
1.2.5
Current Limit Value and Pressing Force
Ɣ RA5C, RA5R
[N]
Current Limit Value
Lead 3
Lead 6
Lead 12
Lead 20
20%
106
53
26
16
30%
159
79
40
24
40%
211
106
53
32
50%
264
132
66
40
60%
317
159
79
48
70%
370
185
93
56
* These are the reference values at 20mm/s of pressing speed.

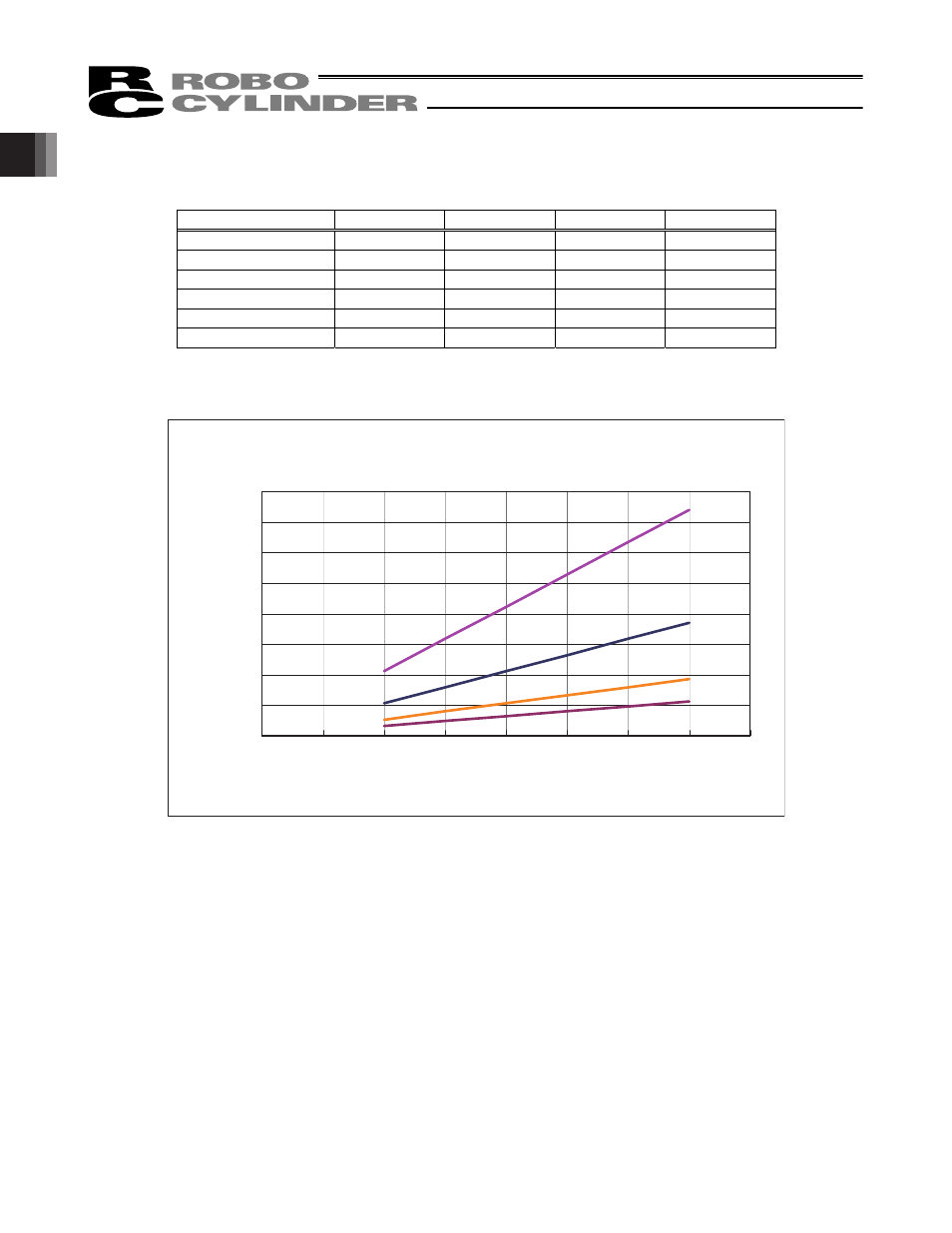

RA5C, RA5R Current Limiting Values and Pressing Force
0
50
100
150
200
250
300
350
400
Pressing Force [N]
Current-Limiting Value [%]
0 10 20 30 40 50 60 70 80
Lead 6
Lead 12
Lead 20
Lead 3
