4. Maintenance Inspection
56

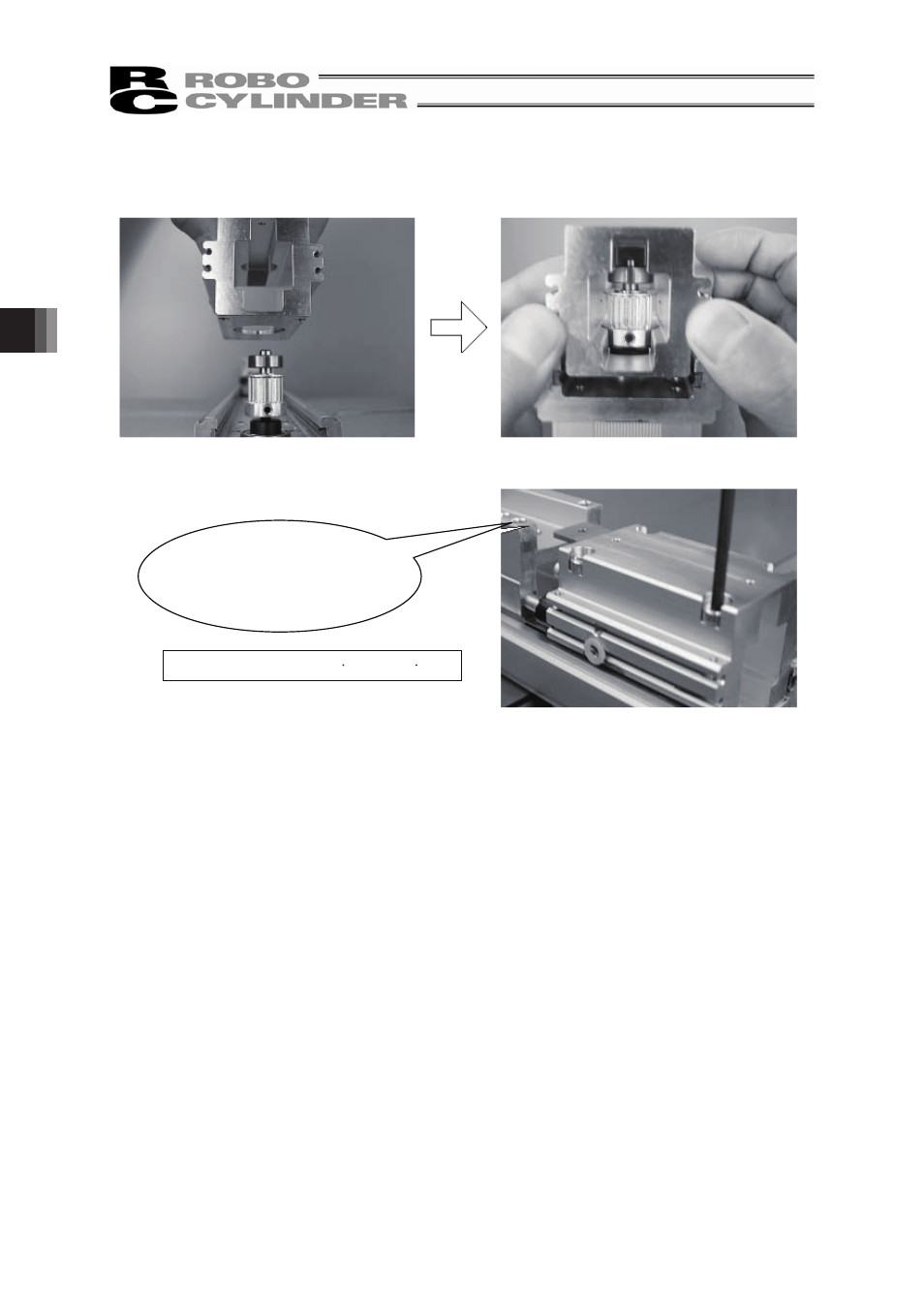

Tightening torque: 176N cm (18kgf cm)
Securely tighten the bolts with
the slider firmly pressed
against the motor bracket.
15) Install the motor bracket.
• Align the motor bracket with the pilot section of the bearing and insert the bracket carefully so as
not to damage the outer periphery of the bearing.
• Tighten the affixing bolts (M4 × 45, 4pcs) using a hex wrench of 3mm across flats.
16) Install the drive belt, adjust it to the specified tension, and then install the covers. Follow steps 9) to
17) in 4.7.4, “Replacing the Belt.”
