4.4 Interior Inspection
After turning off the power, remove the side covers and belt cover to conduct visual checks.
Check the following items during interior inspection.
Main unit Loose mounting bolts
Guides Lubrication appropriate Soiling
Drive belt Scratches Loose
Backside of belt cover Lubrication appropriate
The side covers and belt cover can be removed using a hex wrench of 2mm across flats.
Make a visual check of the interior to see if there is any dust or foreign matter in the unit and also check
the lubrication condition. Even if the grease you see around the parts is brown, the lubrication is fine as
long as the traveling surface appears shiny.
If the grease becomes dirty and dull or if the grease has worn away due to extended operating time,
lubricate the parts after cleaning them.
For details on how to check the drive belt, refer to the check items listed in 4.7.

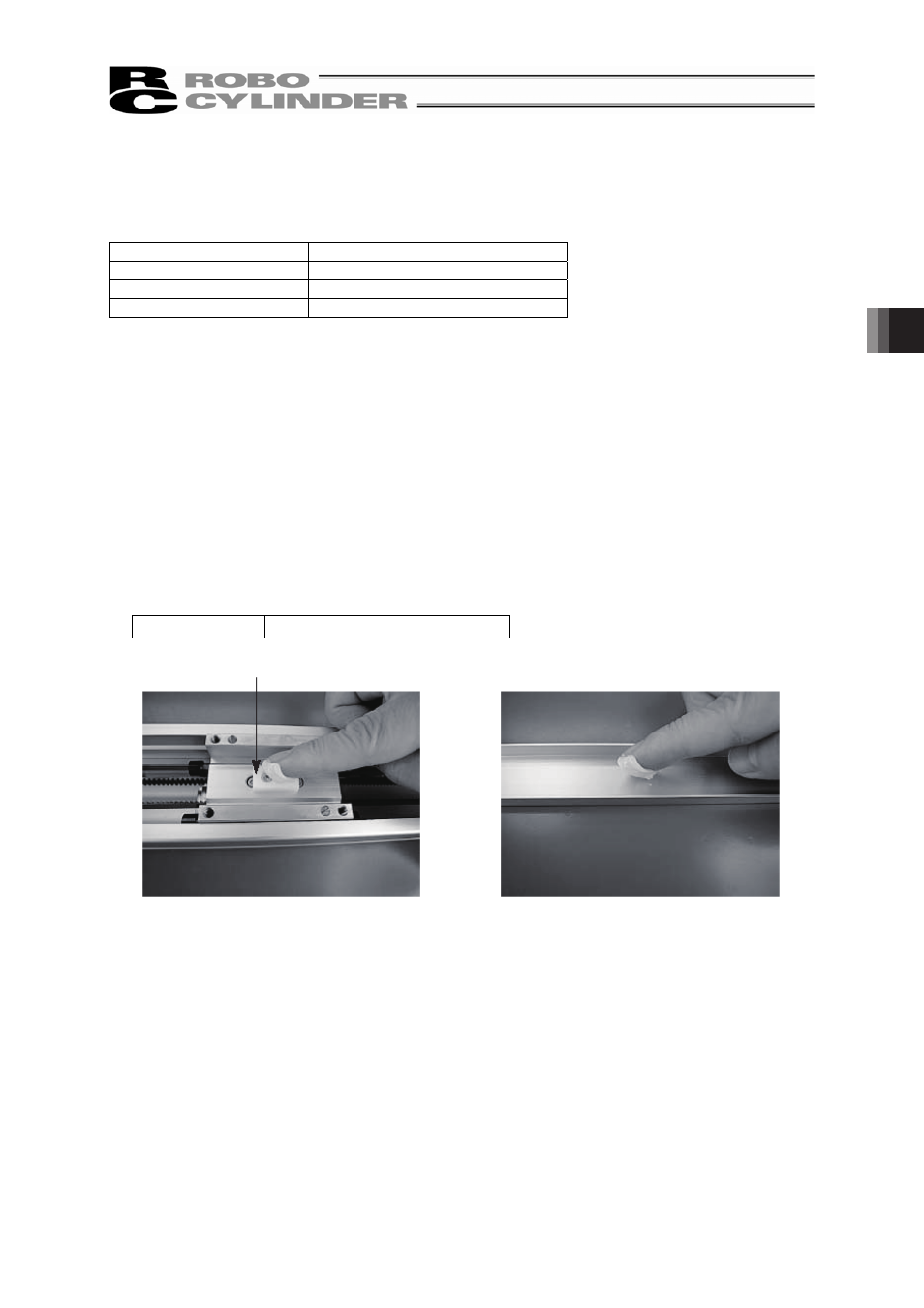

• Checking the lubrication of the backside of the belt cover
Check the lubrication condition of the backside of the belt cover and the belt-cover support (made of
resin) at the center of the slider to make sure the frictional resistance between the slider and belt
cover is minimized and the slider can move smoothly.
If lubrication is not enough, apply the following grease.
Kyodo Yushi Multemp LRL3 or equivalent
