4. Maintenance Inspection
43

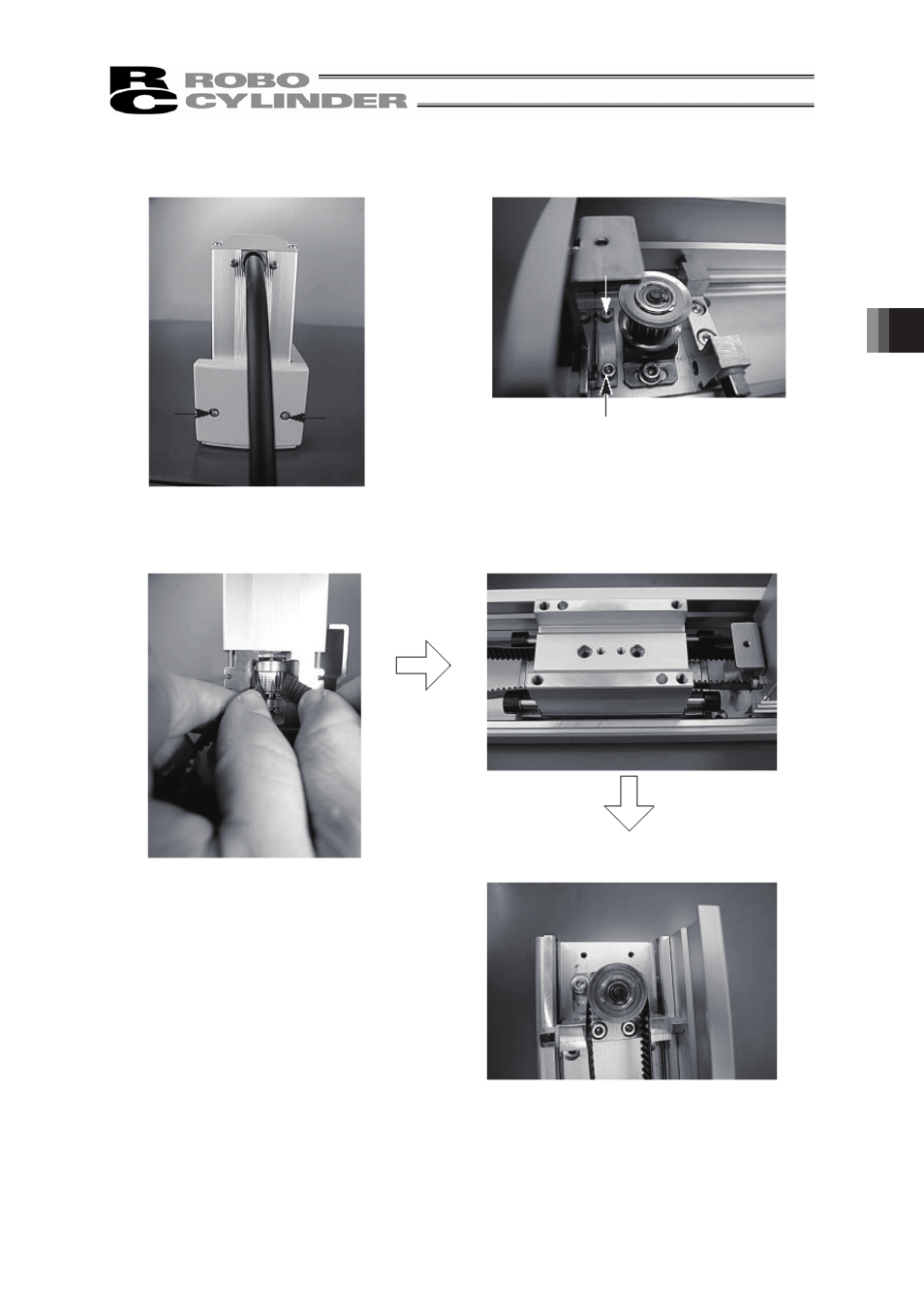

8) Remove the rear cover
(using a hex wrench of 2.5mm across flats).
9) Remove the front-cover affixing bracket
(using a hex wrench of 2.5mm across flats).
10) Install a new belt by guiding it around the pulleys.
• Insert the belt from the spaces provided on
both sides of the motor side pulley.
• Guide the belt through the slider.
• Guide the belt around the counter motor
side pulley (front side).
