4. Maintenance Inspection
42

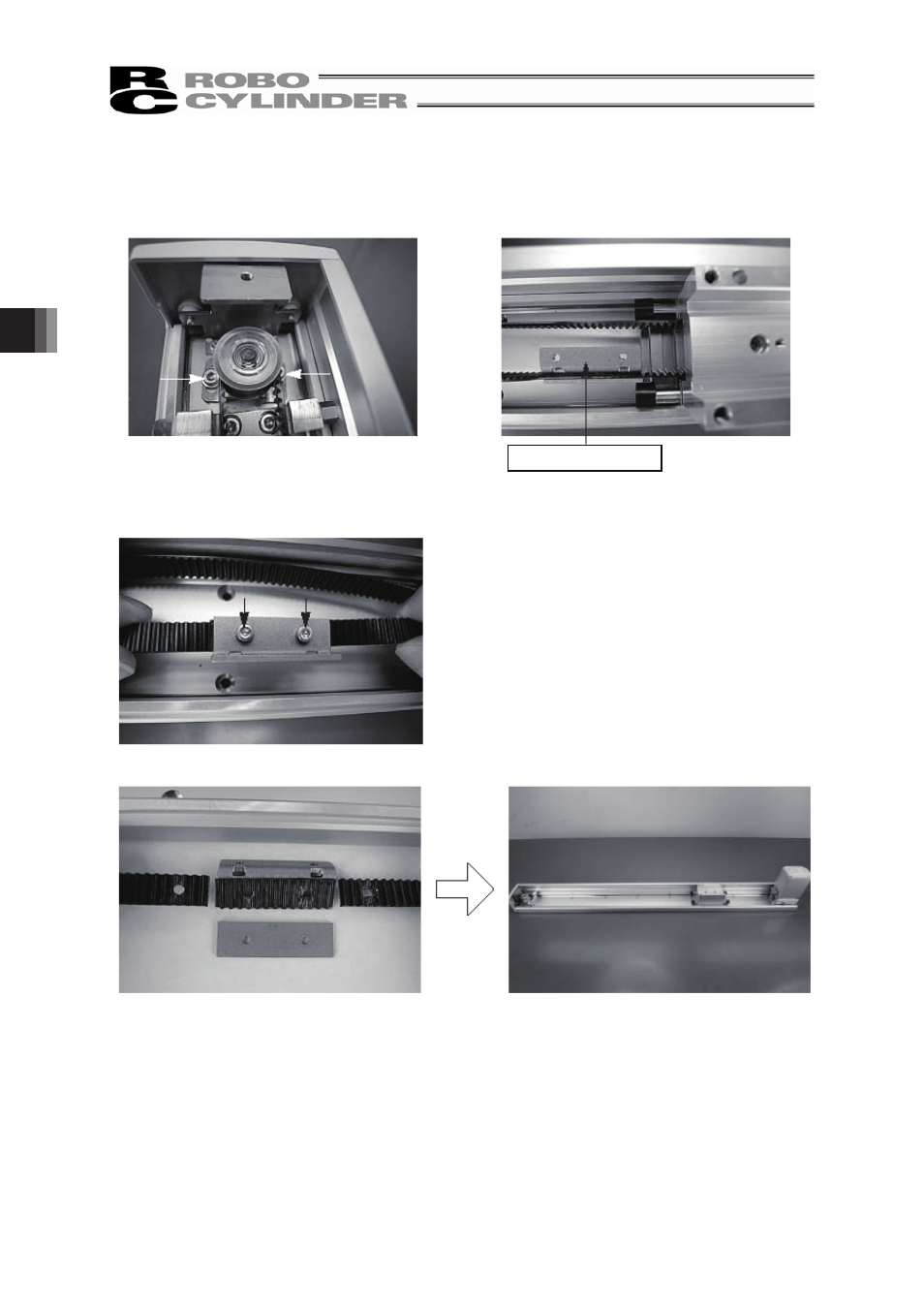

5) Loosen the tension adjustment bolts
(using a hex wrench of 3mm across flats).
If the bolts are not readily accessible, remove
the other side cover.
6) Move the slider to expose the belt holder.
Belt holder
7) Separate the belt and pull it out of the actuator.
• Remove the belt-affixing bolts (using a hex wrench of 2.5mm across flats) .
• Removed belt
• Actuator without belt
