2. Installation
27
2.3.3 Mounting Surface
• For the platform to install the actuator on, ensure the structure has enough stiffness to avoid vibration
being generated.
• The surface where the actuator will be mounted should be machined or be equally level and the
flatness tolerance between the actuator and the table should be within 0.05mm/m.
• Provide enough space around the actuator to permit maintenance work to be done.
• The slider traveling plane is the reference plane for the actuator base and the lower surface.
• When traveling precision is required, use this as the datum surface for mounting.

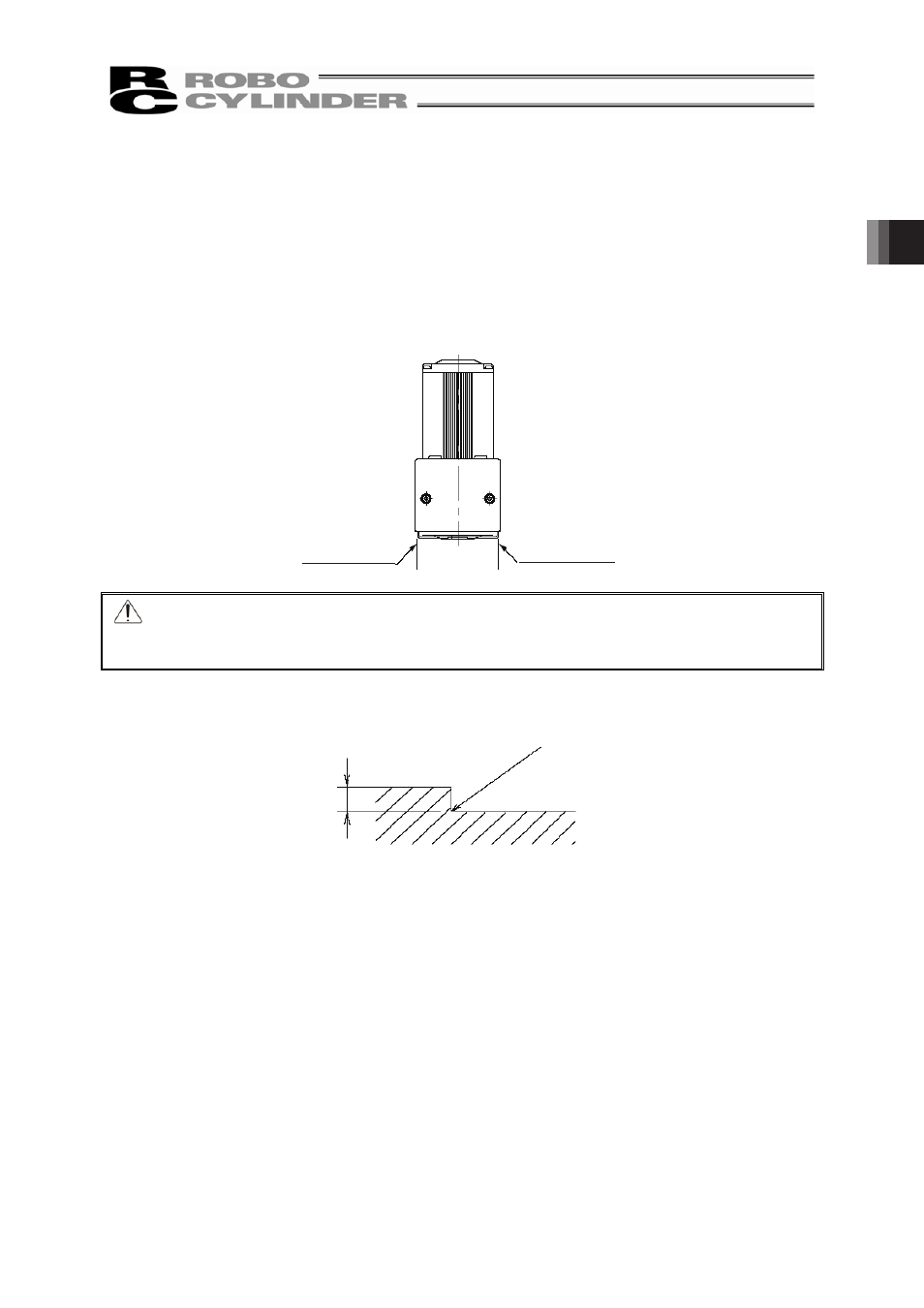

Datum surface Datum surface
Caution: As shown above, the side faces of the base provide the datum surfaces for slider
travel. When precision is required, use these surfaces as the datum surfaces for
mounting.
When using the base as the datum planes for mounting the actuator to the machine frame, follow the
machining dimensions shown below.
R0.3 or less
2 to 3.5
