4. Maintenance Inspection
49

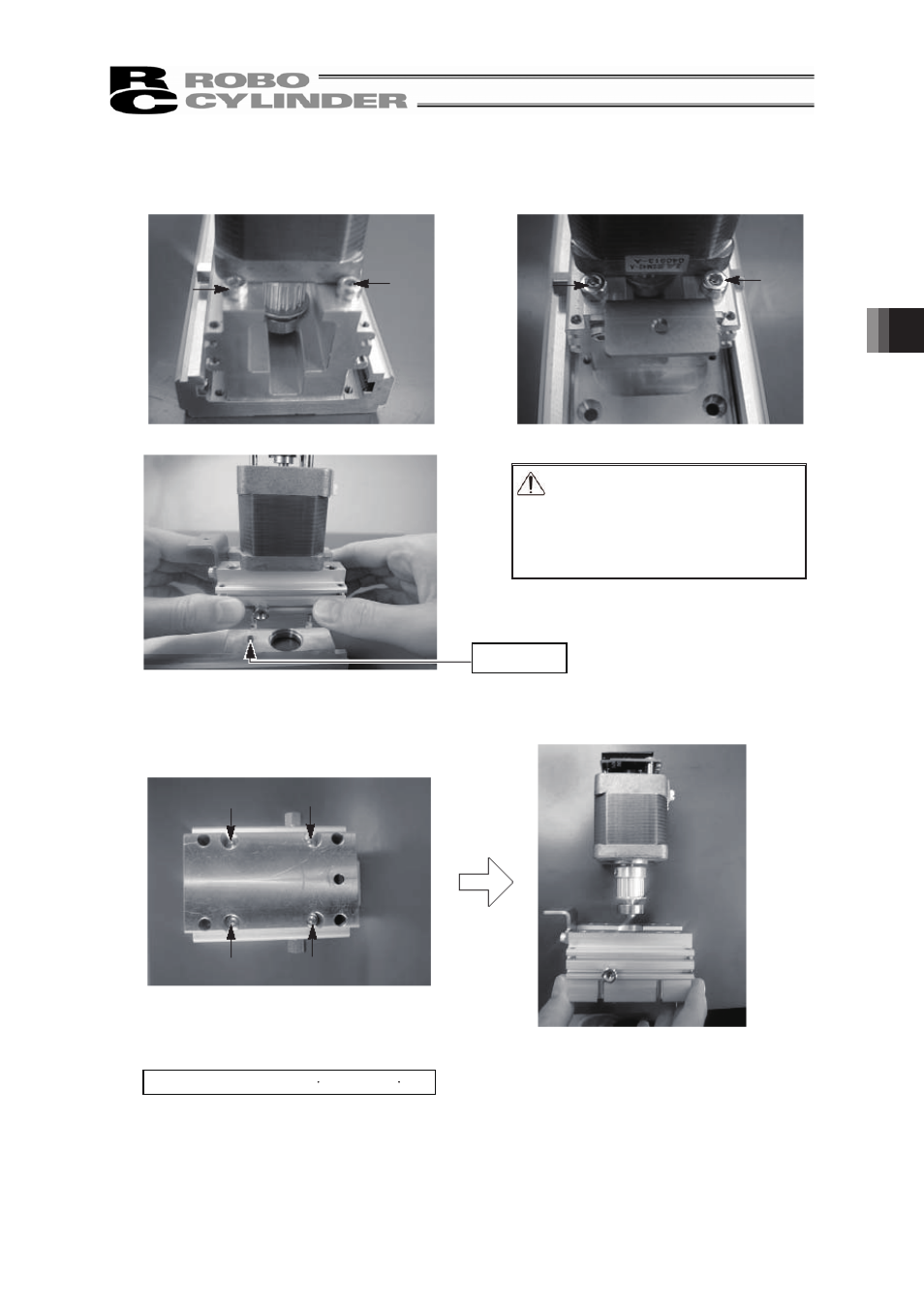

8) Remove the motor bracket.
• Remove the affixing bolts (M4 × 45, 4pcs) using a hex wrench of 3mm across flats.
[Rear cover side] [Slider side]
• Pull out the motor bracket by hand.
Caution: A parallel pin is pressed into
the base. If the motor bracket
does not come off easily,
slowly turn the motor bracket
by hand and pull it out.
Parallel pin
9) Remove the motor from the motor bracket.
• Remove the affixing bolts (M3 × 28, 4pcs)
using a hex wrench of 2.5mm across flats.
• After the motor has been removed
10) Install a new motor to the motor bracket.
When installing the motor, be careful not to damage the bearing at the end of the motor shaft.
Tightening torque: 90 N cm (9.2 kgf cm)
