10) Carry out again all the sequences described in Section 6.6 “Reeving and Adjustments”. Lubricate the Wire
Rope, the Rope Guide and Drum (see Section 6.2 ).
11) Retighten clamping plates. Torque the Screws to the value shown in Table 6-1 for your hoist (see Figure 6-8 ).
12) Run rope in with a partial load.
Table 6-1 Rope Clamp Torque Values
Hoist Capacity Code RHN02, RHN03 RHN05 RHN08, RHN10 RHN15, RHN20
Screw Dia (mm) M10 M10 M12 M16
Screw Torque
30 ft-lbs.
(40Nm)
39 ft-lbs.
(50Nm)
64 ft-lbs.
(87Nm)
155 ft-lbs
(210Nm)

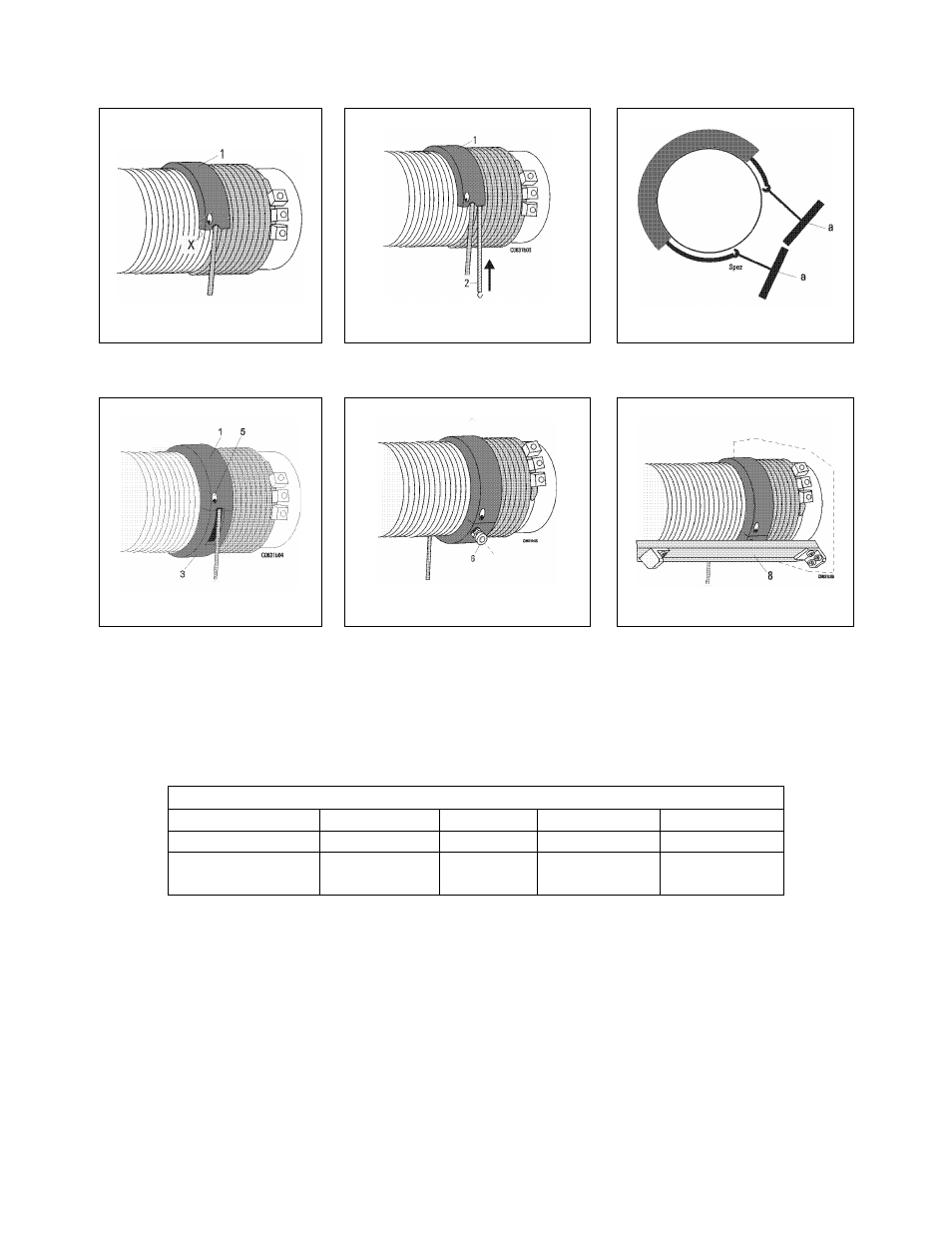

Figure 6-10 Figure 6-11
Figure 6-12
Figure 6-13
Figure 6-14
Figure 6-15
