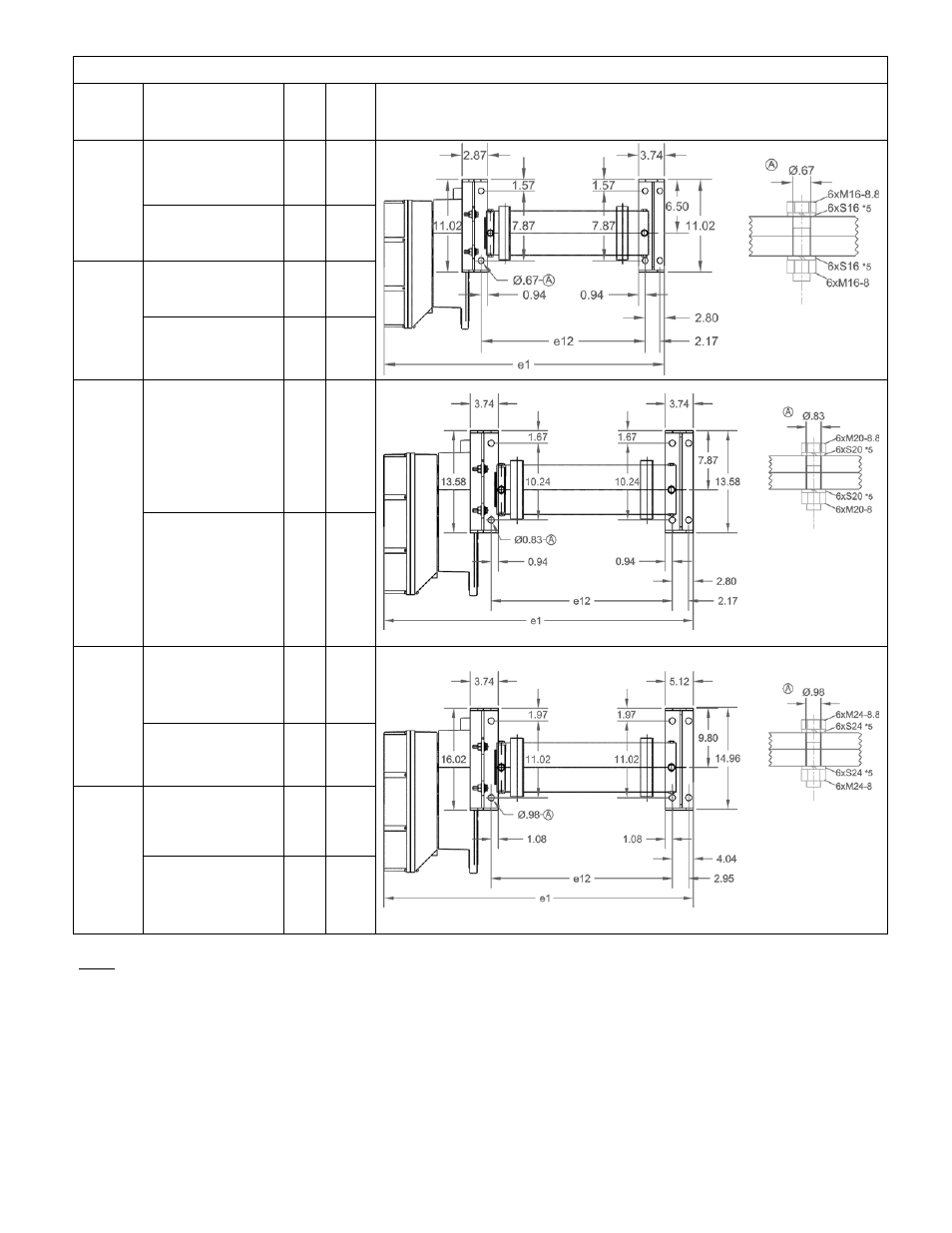

Table 2-10
Deck Mounted Hoist Attachment Point Dimensions (2-10 ton)
Capacity
(Tons)
Product Code*
e1
(in)
e12
(in)
Deck/Base Mounted
2
RHN02D-20A-20D-
40.9
24.2
RHN02D-33A-20D-
52.5
35.8
3
RHN03D-20A-20D-
40.9
24.2
RHN03D-33A-20D-
52.5
35.8
5
RHN05D-20B-20D-
41.3
24.2
RHN05D-33B-20D-
52.9
35.8
7 1/2
RHN08D-20C-20D-
48.0
26.8
RHN08D-33C-20D-
60.4
39.2
10
RHN10D-20C-20D-
48.0
26.8
RHN10D-33C-20D-
60.4
39.2
Notes:
*See Section 2.1.1 for place holder
designation
*5 – Lock washer
