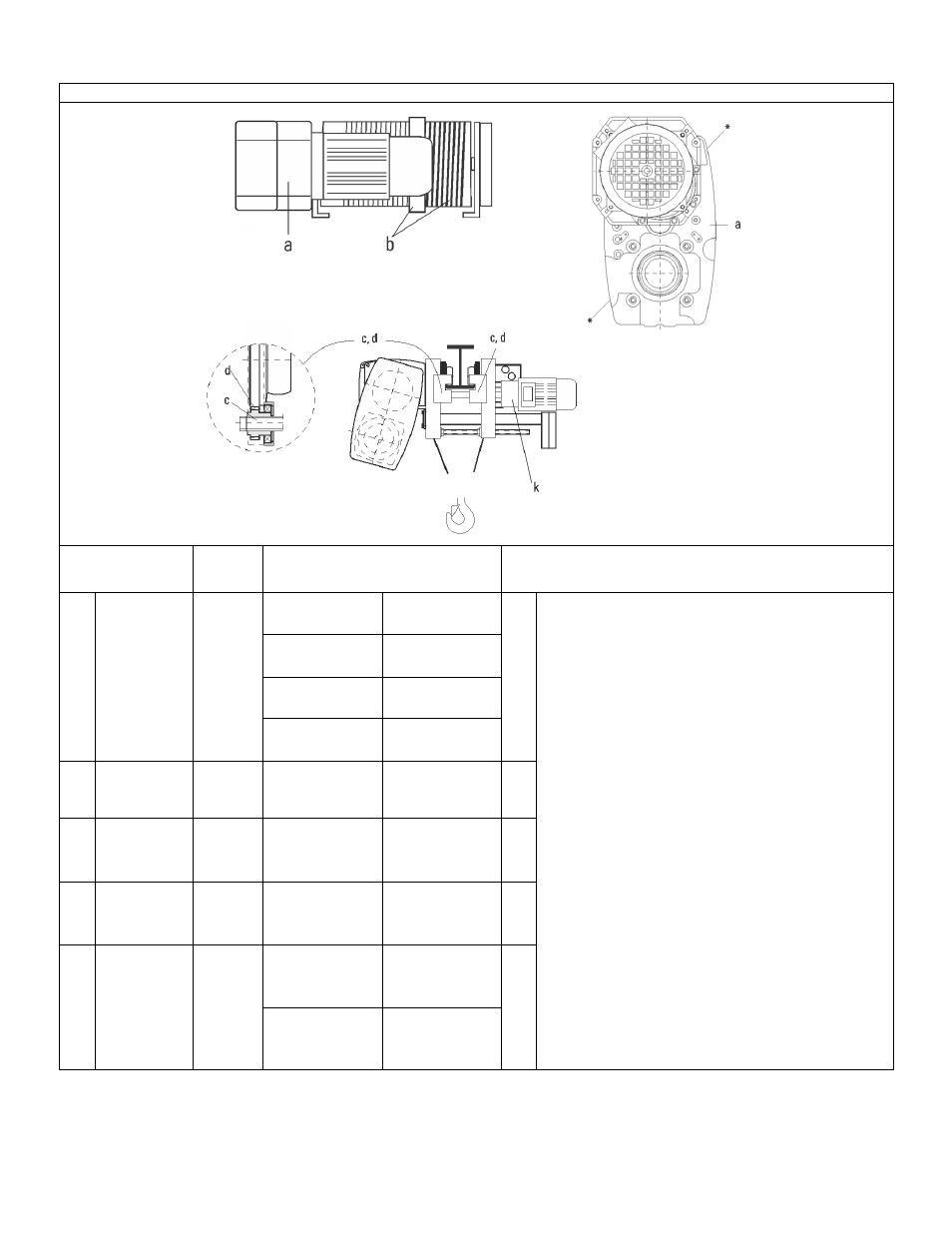

* - Oil filling/oil drainage screw. Depending on the installation position of gear, the filling screw is “at the top” and the drainage screw is “at the bottom.”
1 - If motor at top
2 – Factory filled
Table 6-1
Lubrication Point
Type of
Lubricant
Quantity of Lubricant
Oil - US quarts (ml)
Grease - Ounces (g)
Characteristics, Makes
a
Hoist Gear
Box
Oil
RHN02, RHN03
1.7 (1500)
1
1 Viscosity: 460 /s/40°C (220/s/40°C), pour point: -20°C (-
40°C) flash point: +265°C (+320°C), e.g.: Fuchs Renolin
CLP 460
2
, Aral Degol BG 460,BP Energol GR-XP 460,
Esso Spartan EP 460, Mobil Gear 634, Tribol 1100/460,
(Shell Tivela Oil WB)
2 Soap base: Lithium + MoS2, dripping point: approx. 185°C
penetration: 310-340, operating temperature: -20°to
+120°C e.g.: Aralub PMD1
2
, BP Multi-purpose Grease
L21M, Esso Multi-purpose Grease M, Mobilith SHC 460,
Shell Retinax AM, STABYL L-TS 1 Mo
3 Soap base: Synthetic (lithium), dripping point: approx
150°C penetration: 400-430 (400-430), operating
temperature: -20°to +80°C (-35°to +130°C), e.g.: Aralub
FDP00, BP Energrease HT-00 EP, Esso Liquid Gear
Grease, Shell Special, Gear grease H
2
, Mobilux Liquid
grease EP 004, (Tivela Compound A)
4 Soap base: Lithium + MoS2 (Synthetic + lithium), dripping
point: approx. +180°C, penetration: 355-385 (400-430),
operating temperature: -30°to +120°C (-35°to +130°C),
e.g.: Aralub LFZ 0, Renolit FLM 0
2
, Tribol Molub-Aloy MPG
00, (Tivela Compound A)
5 Soap base: Lithium, dripping point: approx. +170°C
(+260°), penetration: 220-250 (265-290), operating
temperature: -20°to +120°C (-40°to + 120°C), e.g.: Aralub
HL3, BP Energrease RBB3, ESSO Roller Bearing Grease
Andak C AC 205, Mobilux 3
2
(Mobil Mobilgrease 28)
6 Soap base: Lithium + MoS2, dripping point: ca. +180°C,
penetration: 355-385, operating temperature: -30°to
+130°C, e.g.: Aral Grease P64037
2
, Aralub PMD0, Tribol
Molub-Aloy Multi-purpose grease
RHN05
2.1 (2000)
RHN08,RHN10
6.3 (6000)
RHN15, RHN20
16.9 (16000)
19 (18000)
1
b
Rope/Rope
Guide/Drum
Grease
All Models
21-88 (600-2500)
3
c
Drive Shaft
Grease
All Models
3.5 (100)
2
d
Pinion
Grease
All Models
18-35 (500-1000)
5
k
Trolley Gear
Box
Grease
RHN02U-RHN05U
3.5 (100)
6
RHN08U-RHN15U
7.1 (200)
