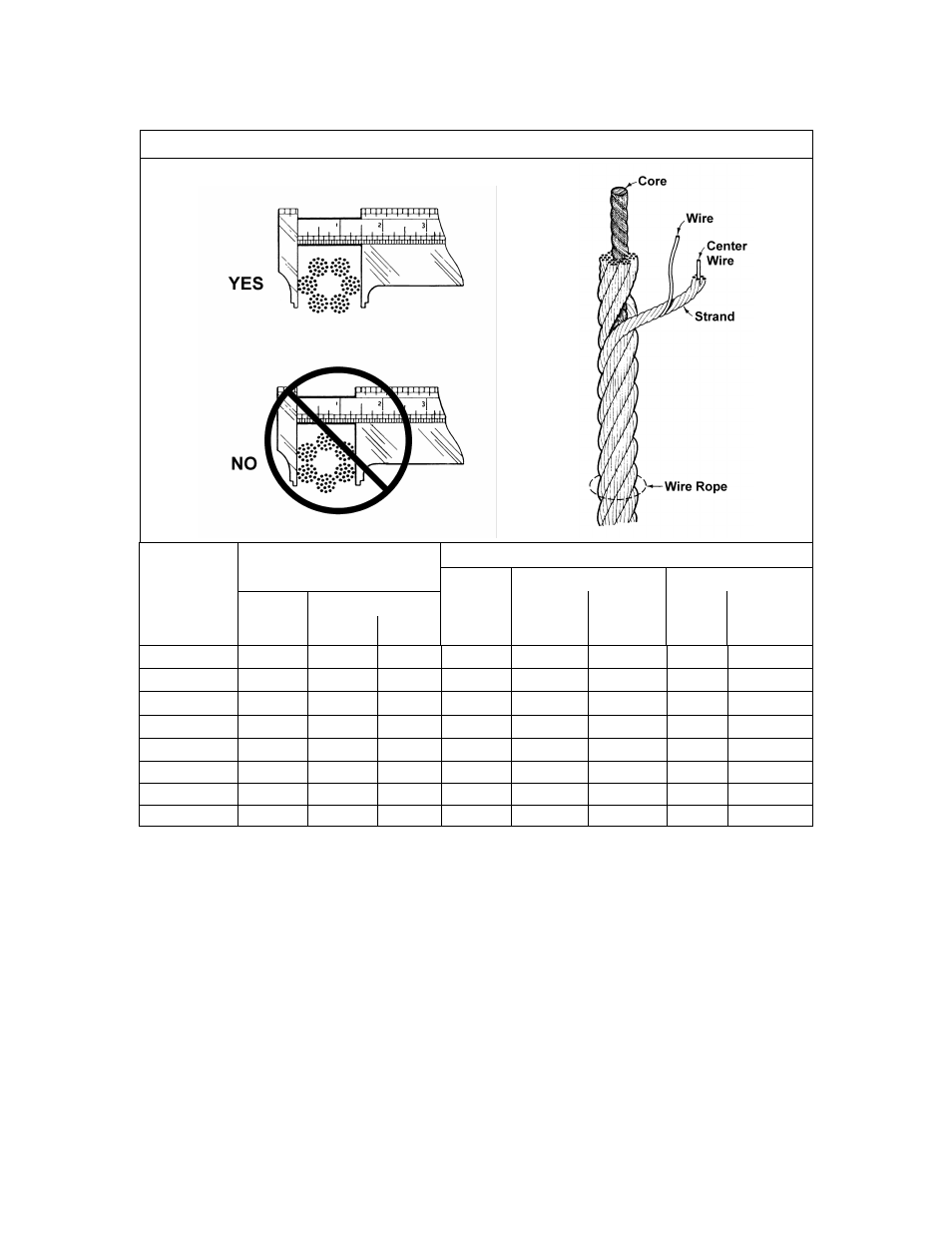

Table 5-7
Wire Rope Wear Dimensions
Hoist Capacity
(tons)
Rope Diameter
Maximum Allowable Number of Broken Wires
Rope
Diameter
(mm)
For 6xDia. Length
For 30xDia. Length
Standard
Discard
No.
Broken
Wires
Length
in. (mm)
No.
Broken
Wires
Length
in. (mm)
(mm)
(mm)
(in)
RHN02
(D/U)
7
6.3
0.25
7
13
1.65 (42)
26
8.27 (210)
RHN03
(D/U)
7
6.3
0.25
7
13
1.65 (42)
26
8.27 (210)
RHN05
(D/U)
9
8.1
0.32
9
13
2.13 (54)
26
10.63 (270)
RHN08
(D/U)
12.5
11.25
0.44
12.5
13
2.95 (75)
26
14.76 (375)
RHN10
(D/U)
12.5
11.25
0.44
12.5
13
2.95 (75)
26
14.76 (375)
RHN 15U
14
12.6
0.50
14
6
3.31 (84)
13
16.54 (420)
RHN 15D
20
18
0.71
20
24
4.72 (120)
48
23.62 (600)
RHN 20D
20
18
0.71
20
24
4.72 (120)
48
23.62 (600)
