Harrington Hoists and Cranes RHN - Rhino Wire Rope Hoist User Manual
Page 49
49

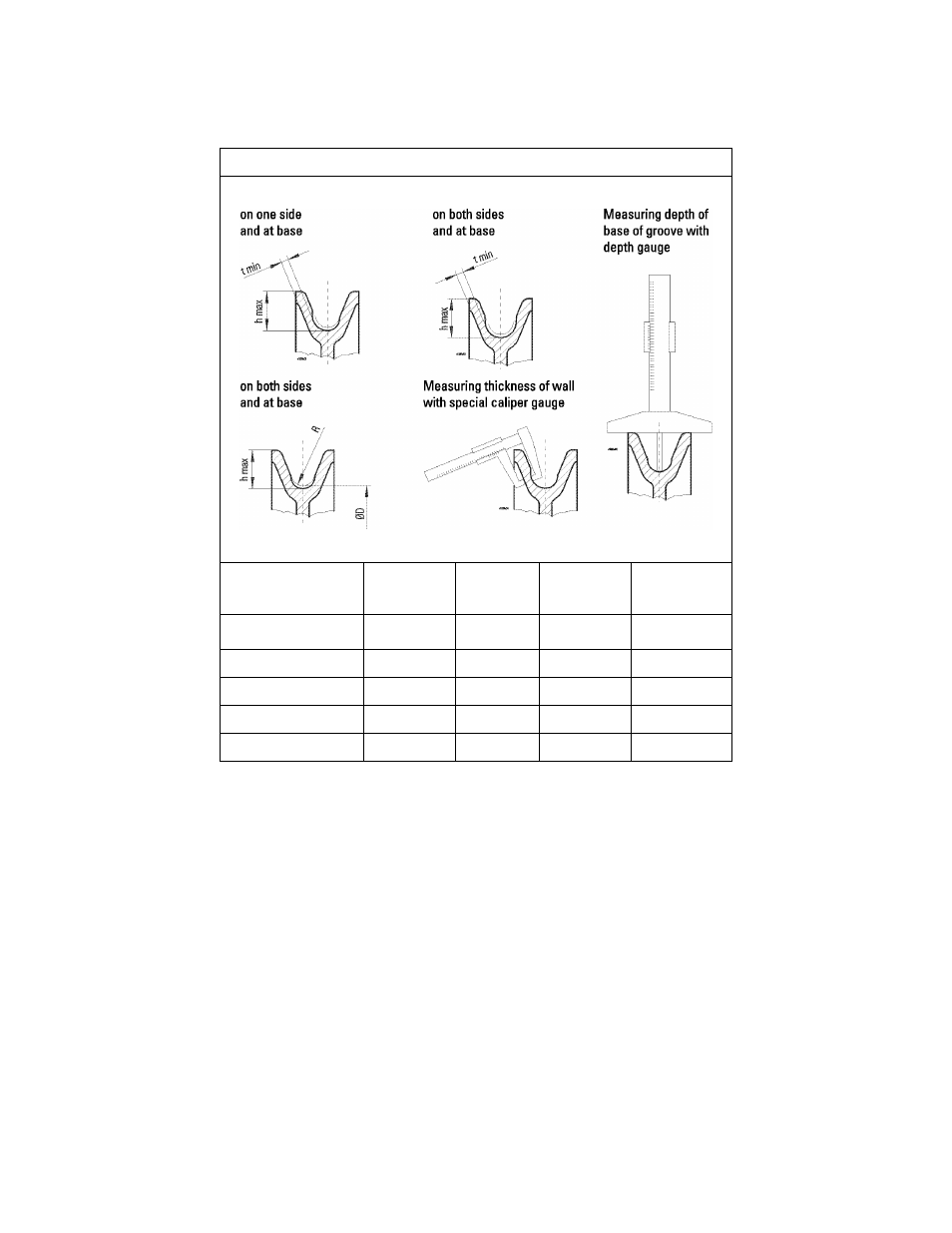

Table 5-9
Rope Sheave Dimensions
Part Number
Diameter
(mm)
t min
in. (mm)
h max
in. (mm)
h new
in. (mm)
RHN0032
125
0.16 (4)
0.55 (14)
0.47 (12)
RHN0129
160
0.16 (4)
0.75 (19)
0.65 (16.5)
RHN0191
225
0.22 (5.5)
0.94 (24)
0.83 (21)
RHN0327
250
0.22 (5.5)
1.10 (28)
0.98 (25)
RHN0260
375
0.26 (6.5)
1.48 (37.5)
1.34 (34)
