Table 2-12 Reaction Forces at Rated Load, Deck Mounted
Capacity
(Tons)
Product Code
F1
(lbs)
F2
(lbs)
F3
(lbs)
F4
(lbs)
Q1
(lbs)
Q2
(lbs)
Q3
(lbs)
Q4
(lbs)
Moment*,
M
T
(ft-lbs)
2
RHN02D-20A-20D-  1817 1902 654 1292 295 169 393 393
232*
RHN02D-33A-20D-  1950 2149 582 1122 328 147 393 393
3
RHN03D-20A-20D-  2700 3043 1038 2067 472 270 629 629
372*
RHN03D-33A-20D-  2906 3439 916 1795 524 235 629 629
5
RHN05D-20B-20D-  4171 4683 1618 3151 736 415 984 984
770*
RHN05D-33B-20D-  4480 5272 1435 2744 814 362 984 984
7 ½
RHN08D-20C-20D-  6989 5019 3625 5051 978 741 1475 1475
1514*
RHN08D-33C-20D-  7758 6054 3112 4278 1129 627 1475 1475
10
RHN10D-20C-20D-  9041 6692 4763 6735 1304 988 1967 1967
2019*
RHN10D-33C-20D-  10042 8072 4076 5703 1506 836 1967 1967
15
RHN15D-20D-16D-  9297 14086 5835 13988 1894 1684 3147 3147
**
RHN15D-33D-16D-  10384 16989 4931 12154 2227 1445 3147 3147
20
RHN20D-20D-16D-  12088 16707 7449 17186 2367 2105 3934 3934
**
RHN20D-33D-16D-  13494 20243 6316 14899 2784 1807 3934 3934
See Section 2.1.1 for place holder  designation

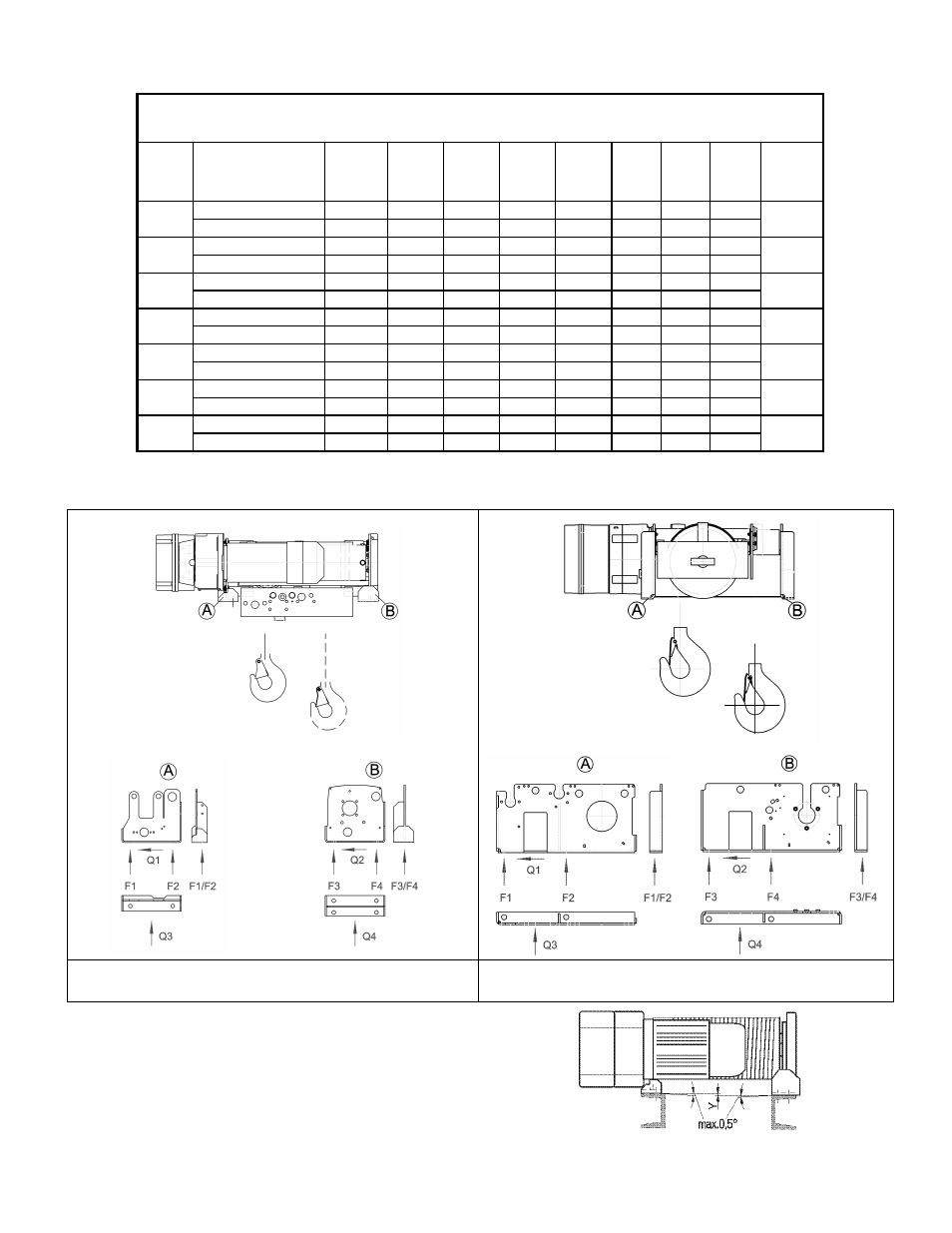

Figure 2-5 Deck Mounted Hoist, 2-10 Ton
Reaction Forces (See Table 2-12 )
Figure 2-6 Deck Mounted Hoist, 15-20 Ton
Reaction Forces (See Table 2-12 )
*For 2-10t capacities, the customer’s substructure must account for
the moment MT (torque) from the rope drum. Therefore it must be
torsion resistant and level, (max permissible offset, Y = .0787in.)
**For 15-20t capacities, the design structure accounts for the
moment, and the forces are diverted to the fixation points.
