26

Table 3-3

L3 and L4 Dimensions from

Fig 3-8 and 3-9

Hoist

L3+/- 2 in. (mm)

L4+/-2 in. (mm)

RHN02, RHN03,

RHN05

3.8 (96.4)

1.82 (46.4)

RHN08, RHN10

4.9 (124.6)

1.82 (46.4)

RHN15

See

Figure 3-11

Figure 3-11

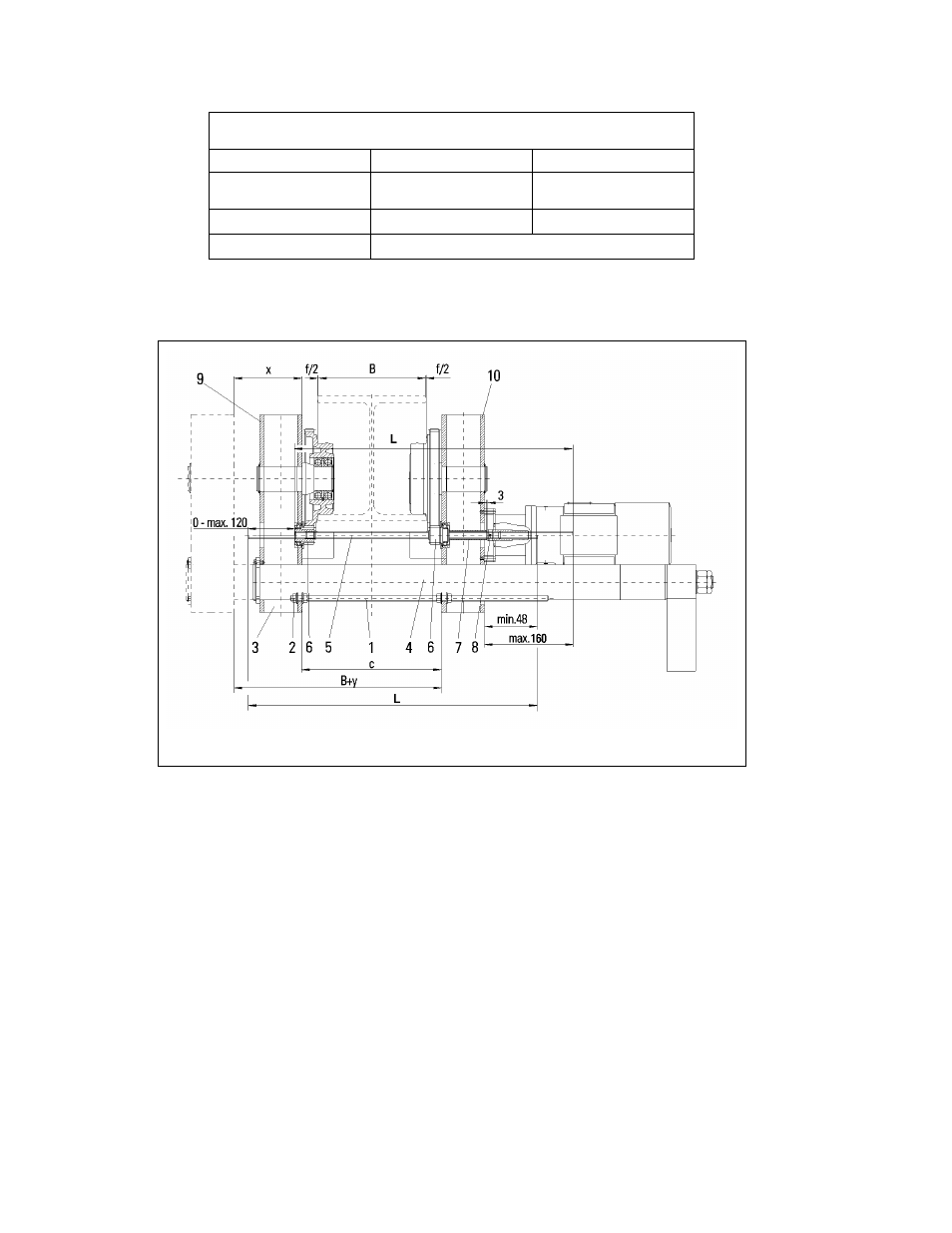

Trolley Hoist Clearances 15 Ton
