Harrington Hoists and Cranes RHN - Rhino Wire Rope Hoist User Manual
Page 16
16

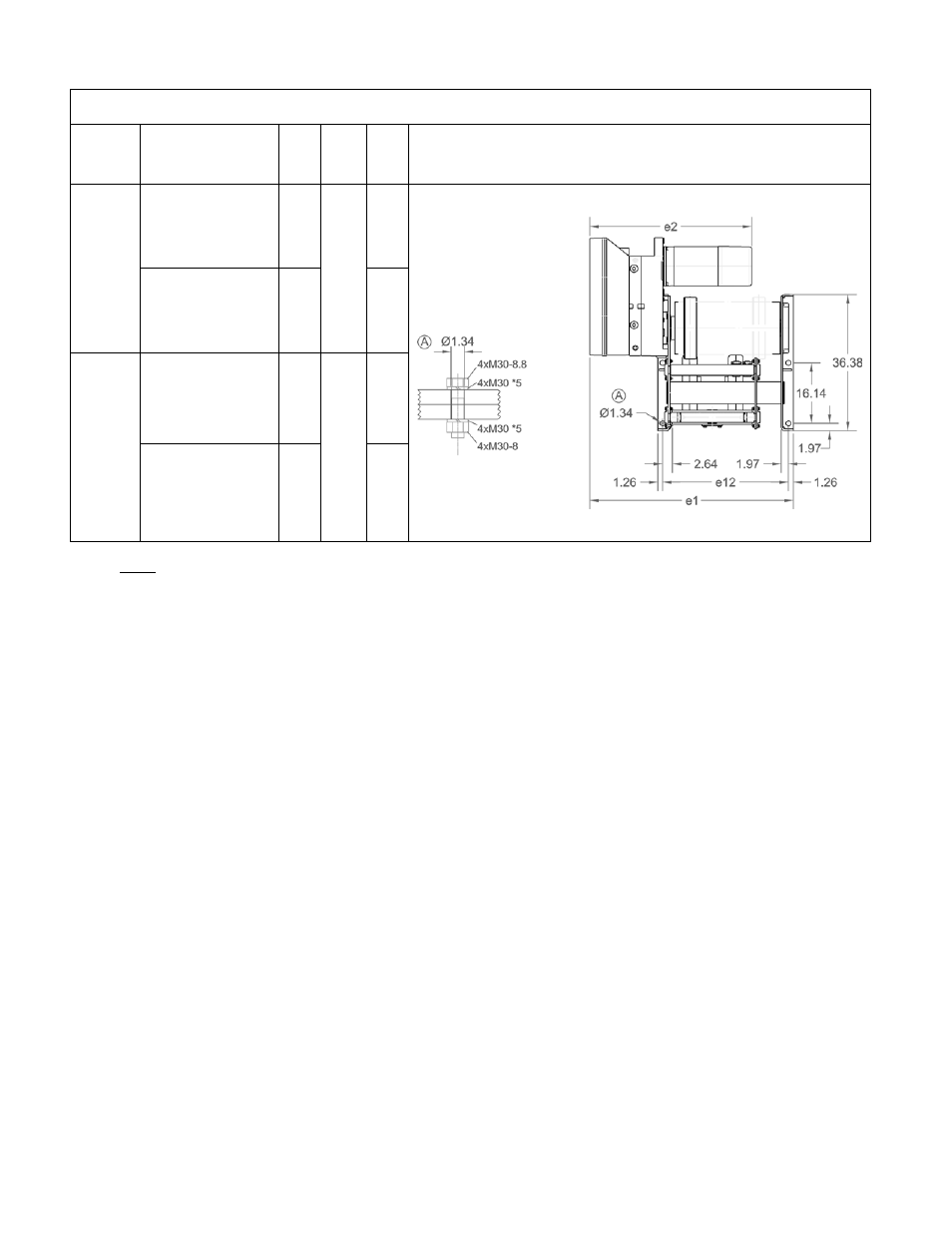

Table 2-11
Deck Mounted Hoist Attachment Point Dimensions (15 & 20 ton)
Capacity
(Tons)
Product Code*
e1
(in)
e2
(in)
e12
(in)
Deck/Base Mounted
15
RHN15D-20D-16D-
54.4
43.7
33.7
RHN15D-33D-16D-
66.6
45.9
20
RHN20D-20D-16D-
54.4
43.7
33.7
RHN20D-33D-16D-
66.6
45.9
Notes:
*See Section 2.1.1 for place holder
designation
*5 – Lock washer (Schnorr)
