Miscellaneous
Table 2-9

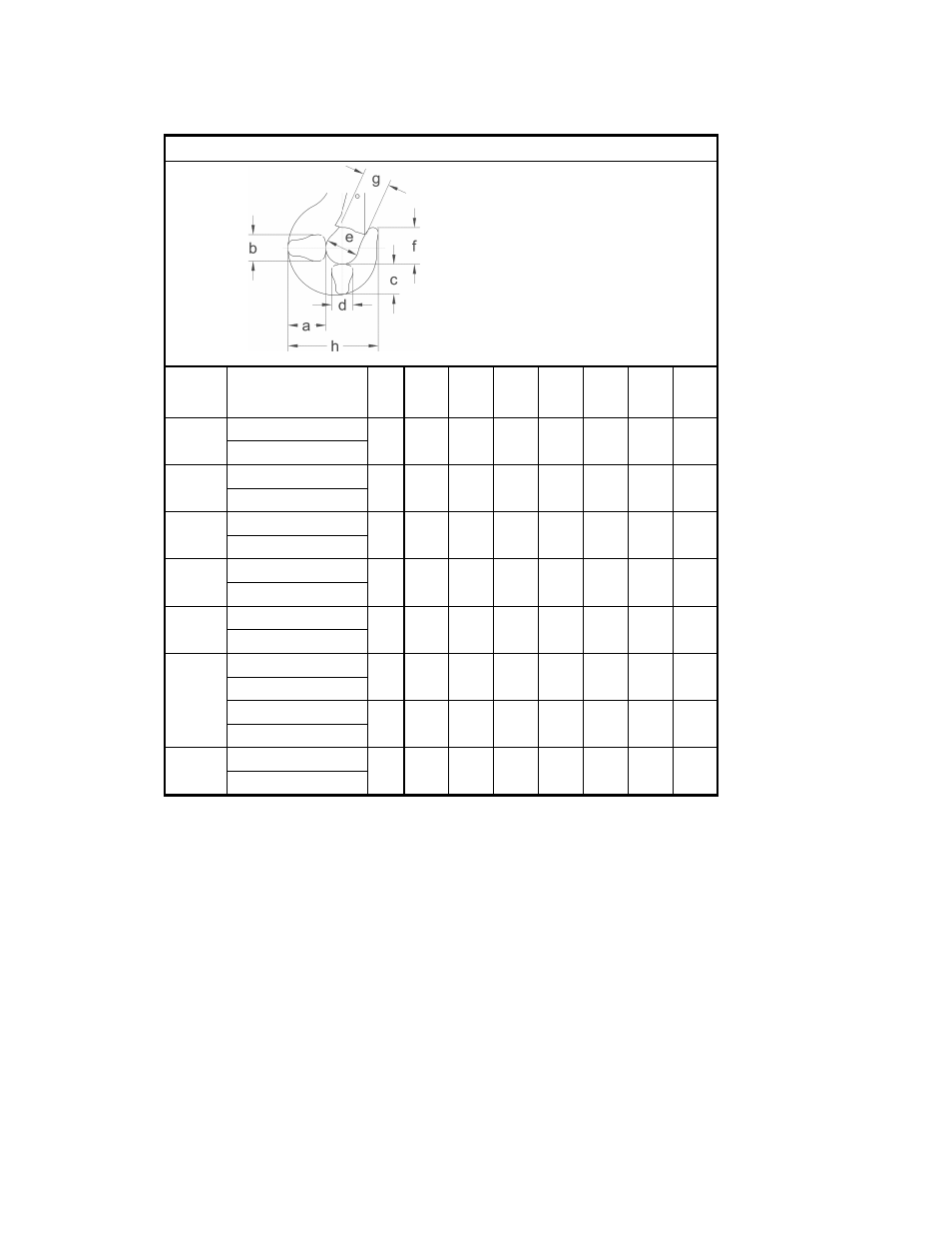

Hook Dimension*
Units = inch
Capacity
(Tons)
Product Code**
a
b
c
d
e
f
g
h
2
RHN02D-20A-20D-
2.2
1.8
1.9
1.5
2.2
2.5
1.6
5.8
RHN02D-33A-20D-
3
RHN03D-20A-20D-
2.2
1.8
1.9
1.5
2.2
2.5
1.6
5.8
RHN03D-33A-20D-
5
RHN05D-20B-20D-
2.6
2.1
2.3
1.8
2.5
2.8
1.7
6.6
RHN05D-33B-20D-
7 ½
RHN08D-20C-20D-
3.1
2.5
2.6
2.1
2.8
3.1
1.9
7.7
RHN08D-33C-20D-
10
RHN10D-20C-20D-
3.1
2.5
2.6
2.1
2.8
3.1
1.9
7.7
RHN10D-33C-20D-
15
RHN15U-28D-12DD-
3.9
3.1
3.3
2.6
3.5
4.0
2.4
10.1
RHN15U-46D-12DD-
RHN15D-20D-16D-
4.9
3.9
4.2
3.3
4.4
5.0
3.2
12.0
RHN15D-33D-16D-
20
RHN20D-20D-16D-
4.9
3.9
4.2
3.3
4.4
5.0
3.2
12.0
RHN20D-33D-16D-
*Refer to
Section 5.6
for inspection dimensions and limits.
**Product codes represent deck/base mounted hoists (except RHN15U), but hook dimensions also apply to ultra-low
trolley hoists. See Section 2.1.1 for place holder
designation
