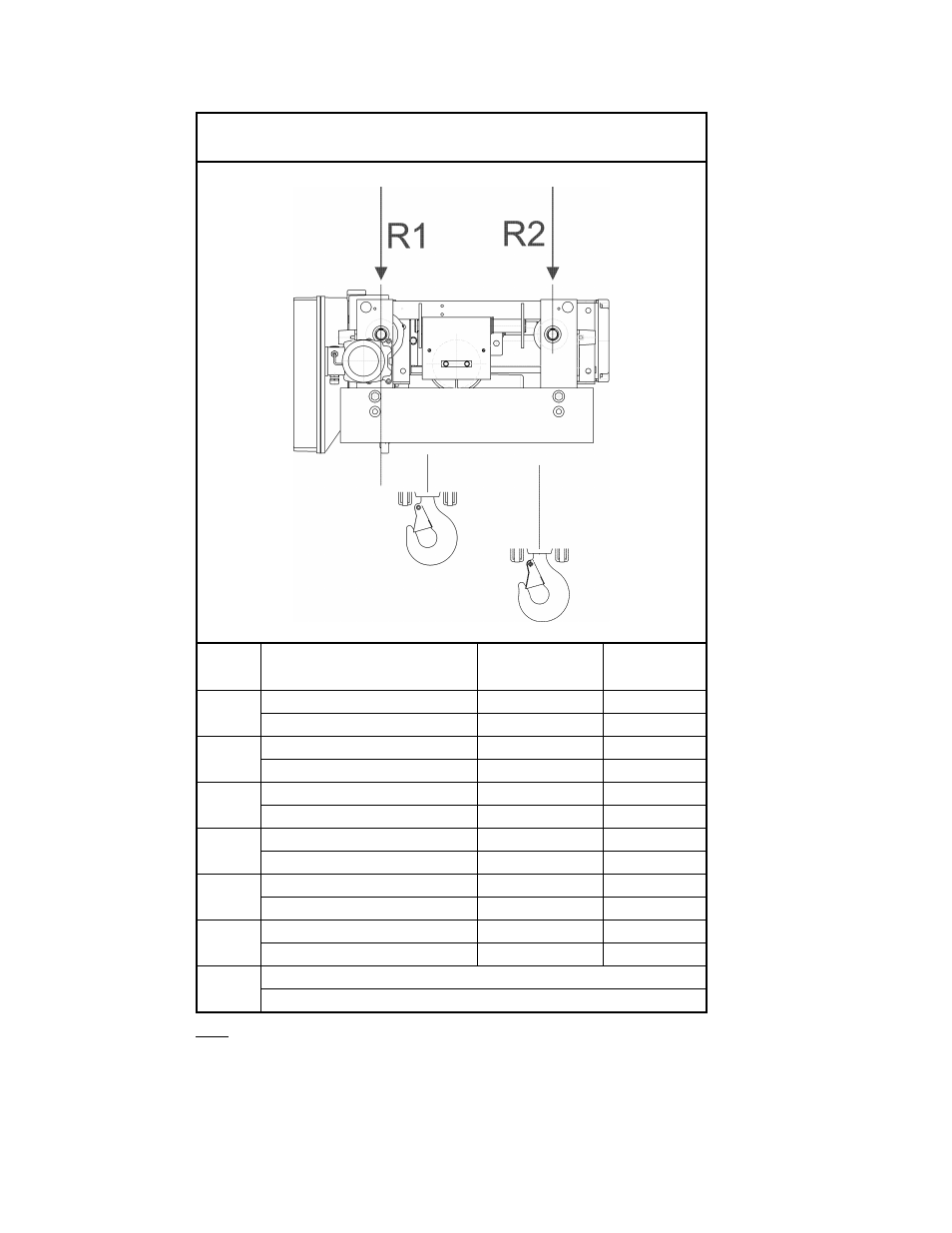

Table 2-13
Wheel Pair Reaction Forces at Rated Load,
Ultra-Low Headroom Monorail Trolley
Capacity
(Tons)
Product Code*
R1
(lbs)
R2
(lbs)
2
RHN02U-20A-20DD-
2985
2939
RHN02U-33A-20DD-
3632
2411
3
RHN03U-20A-20DD-
4292
4285
RHN03U-33A-20DD-
5253
3487
5
RHN05U-20B-20DD-
6629
7288
RHN05U-33B-20DD-
7167
6675
7 1/2
RHN08D-20C-20DD-
9102
12320
RHN08U-33C-20DD-
12011
9860
10
RHN10U-20C-20DD-
11783
16192
RHN10U-33C-20DD-
15641
12898
15
RHN15U-28D-12DD-
22045
17881
RHN15U-46D-12DD-
22226
18478
20
N/A
N/A
Notes:
*See Section 2.1.1 for place holder
designation
