57

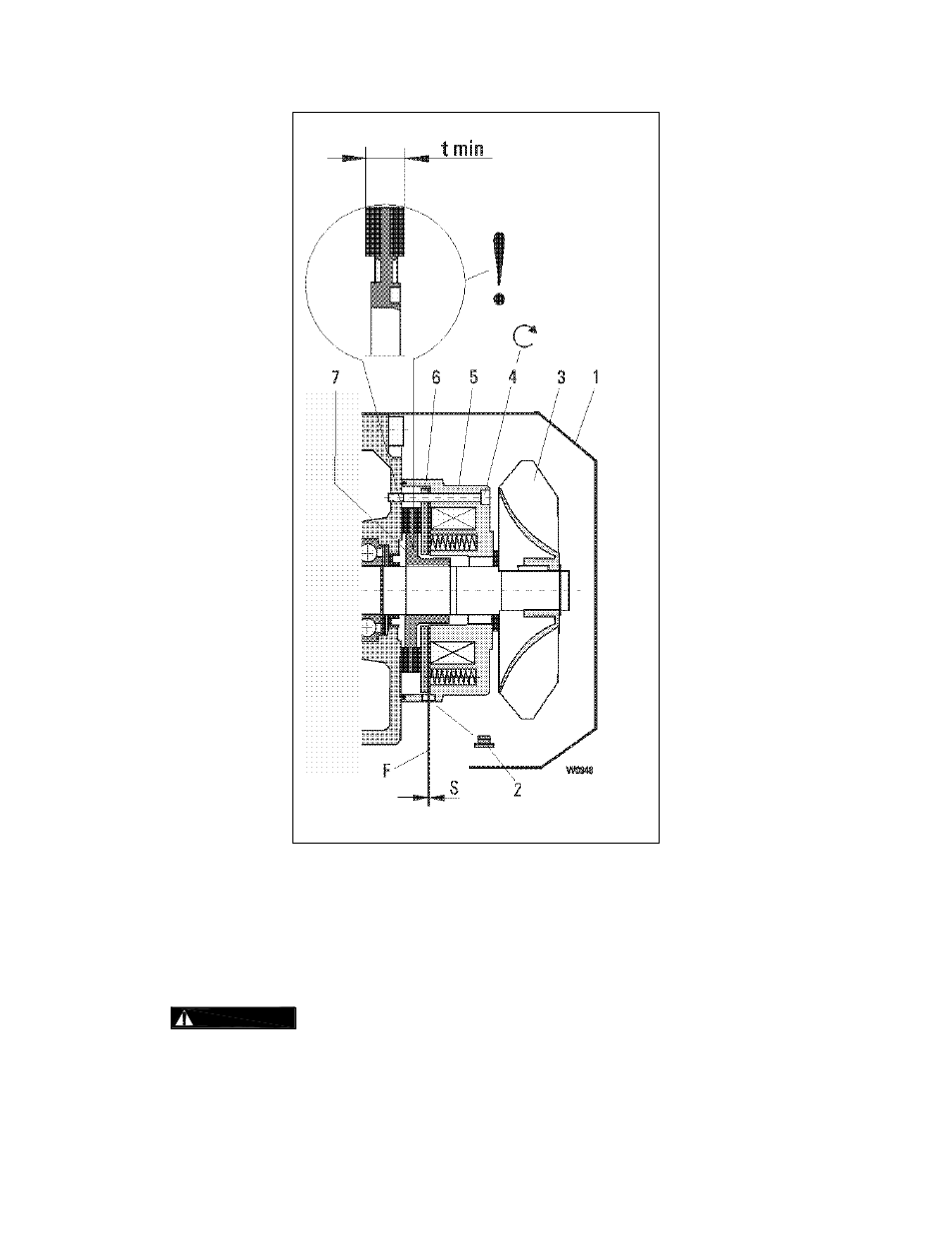

Figure 6-3
6.4.5 Motor brake reassembly – Reassemble the parts in reverse order of removal. Ensure that the check hole
for measuring the air gap is underneath. Observe tightening torques in
Table 5-11 .
6.5 Wire Rope
6.5.1 Lubrication and Cleaning – Refer to Section 6-2 .
6.5.2

Be certain that the replacement wire rope is obtained from Harrington Hoists, Inc. and
is the correct wire rope for the hoist. See factory certificate for part number of rope. Rope must be
replaced as required by DIN 15020, FEM 9.661 and ISO 4309. If the wire rope is being replaced due to
damage or wear out, destroy the old rope to prevent its reuse.
