Continuous Control Functions

RAMP SOAK BLOCK

3-20

3.4 TYPICAL BLOCK CONNECTIONS FOR RAMP/SOAK BLOCK

A typical Ramp/Soak Profile is used as the Remote Setpoint to the PID block. Whenever the
PID block Output Mode is not AUTO or the Setpoint Mode is LOCAL the PID block Track
Status is set TRUE. Therefore, the Ramp Soak block will go to the TRACKING state.

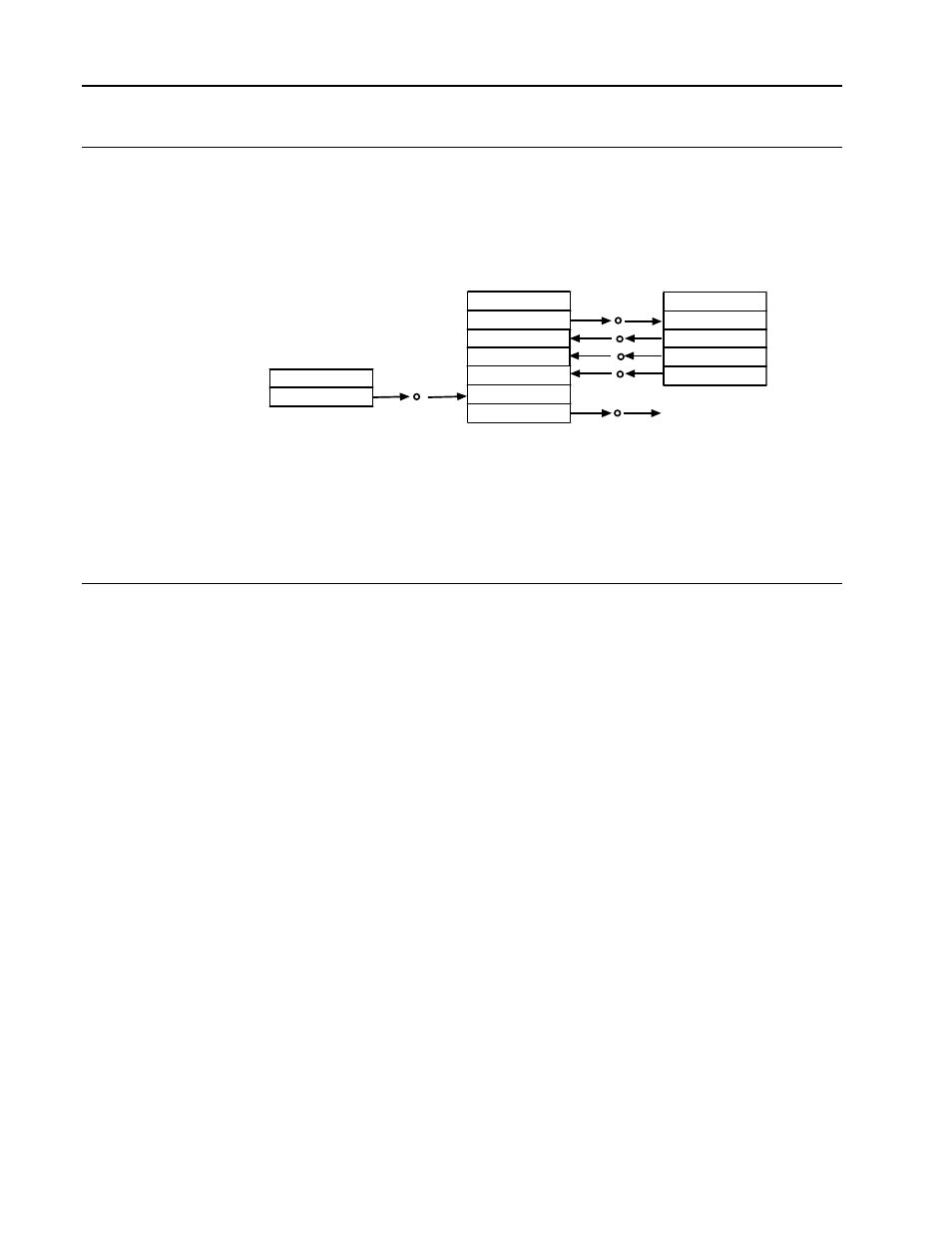

Connections between the Ramp Soak block and the PID block are shown in Figure 3-7.

Softwiring connections

to other blocks.

Typical Ramp/Soak and PID Block Connections

RSK

R

DI1

Result

TRKINP

TCMDINP

R

PID

RSPI

PVI

PROCINP

ARSP

TS

RESINP

SA

Figure 3-7. Typical Block Connections for Ramp/Soak Block

Note: You might also want the PID setpoint tracking enabled, and the PID setpoint track

input connected to the PID process input.

3.5 RAMP/SOAK BLOCK EVENTS

The event codes (and their suggested text messages) for the Ramp/Soak block are given
below. See the system event block for a description of event transitions.

Event
Code Type Text/Description
0 Info Only BLOCK STATE SET TO RUN
1 Info Only BLOCK STATE SET TO HOLD
2 Info Only BLOCK STATE SET TO OFF
3 Info Only BLOCK STATE SET TO DEBUG
