Continuous Control Functions

RAMP SOAK BLOCK

3-1

3

RAMP SOAK BLOCK (RSK)

DATA BASE PARAMETERS

3.1 GENERAL

The Ramp/Soak profile block can have up to 36 ramp or soak segments. The ramp function
changes the block result (setpoint) up or down at a linear rate over the specified period of
time. The soak function maintains the block result at a fixed value for the specified period of
time. A step function has a specified time of zero. Ramp/Soak features, Figure 3-1, include:
repeating a profile, tracking function, guaranteed ramps and soaks, four segment event states
(A, B, C and D set at either TRUE or FALSE for each state), and commands of reset, stop,
run, hold and skip. Figure 3-2 shows a functional diagram of the block.

Note that the profile can also be reset, stopped, set to RUN, set to HOLD or skipped to the
next segment by writing the value 1, 2, 3, 4 or 5, respectively, to the CMD attribute. The mode
can also be set to RUN or HOLD by writing the value 0 or 1, respectively, to the MODE
attribute.

Segment 1

Start of

Profile

Process

Adjustable Hysteresis

Bandwidth

Set-Point

Optional

Repeat,

Start Next Cycle

Seg. 6

Seg. 5

Seg. 4

Seg. 3

Seg. 2

Result

Adjustable Rate of Rise

(Controlled Heating)

Skip

Guaranteed Soak

with Adjustable

Soak Hysteresis

Adjustable Rate of Fall

(Controlled Cooling)

End of Profile

Segment 1

Guaranteed Ramp

with Adjustable

Ramp Hysteresis

Time

Hold

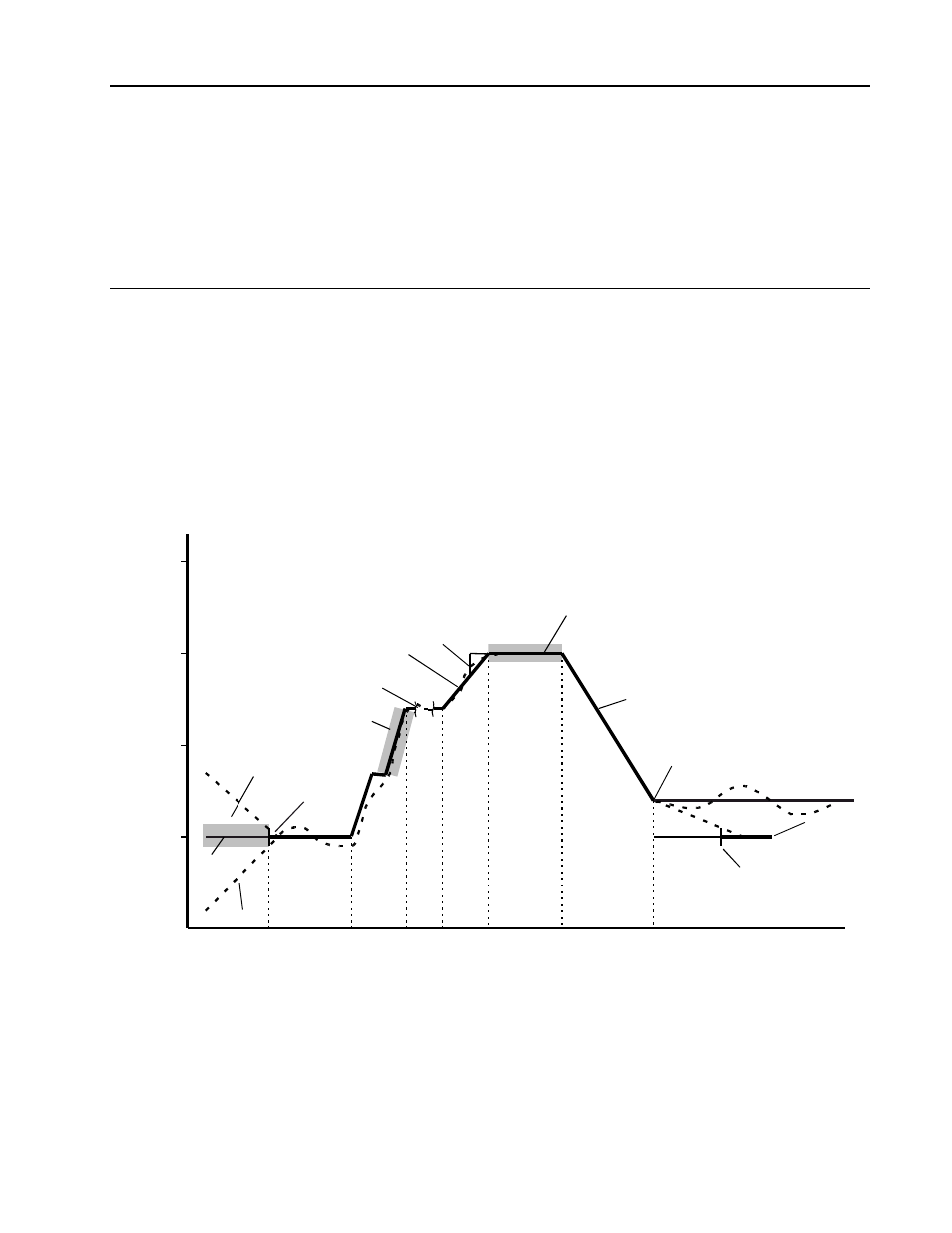

Figure 3-1. Ramp/Soak Profile Characteristics
