55
Operational and Maintenance Procedures
Annual Procedures
Replacing the Sample Probe Tube
The tube that connects the sample probe to the valve is subject to wear because of the
constant motion of the sample probe. Consequently, maintenance requires replacing it on
a yearly basis.

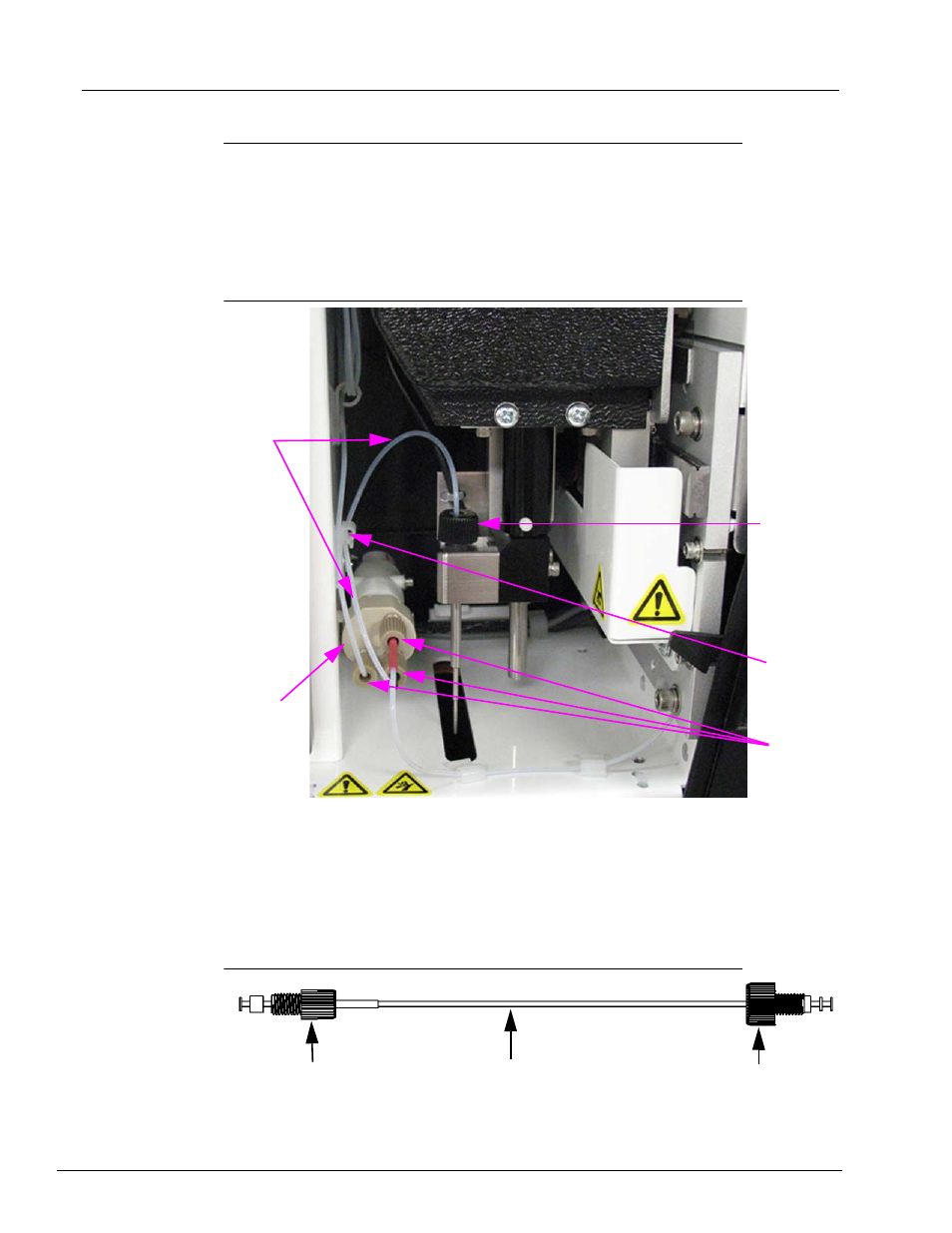

FIGURE 57. Sample Probe Tube
1
2
3
4
5
FIGURE 58. Sample Probe Tube Assembly
1 2
3
1 Sample probe tube (color-coded black at valve end)
2 Valve
3 1/4-28 flat-bottom fittings
4 Strain relief
5 Probe fitting
1 1/4-28 Flat-bottom fitting 2 Tube between probe and valve 3 Probe fitting
