25
Installation Procedure
7. Slide the container into the tray on the left side of the fluid compartment. The container
tray is constructed to hold the container in place.

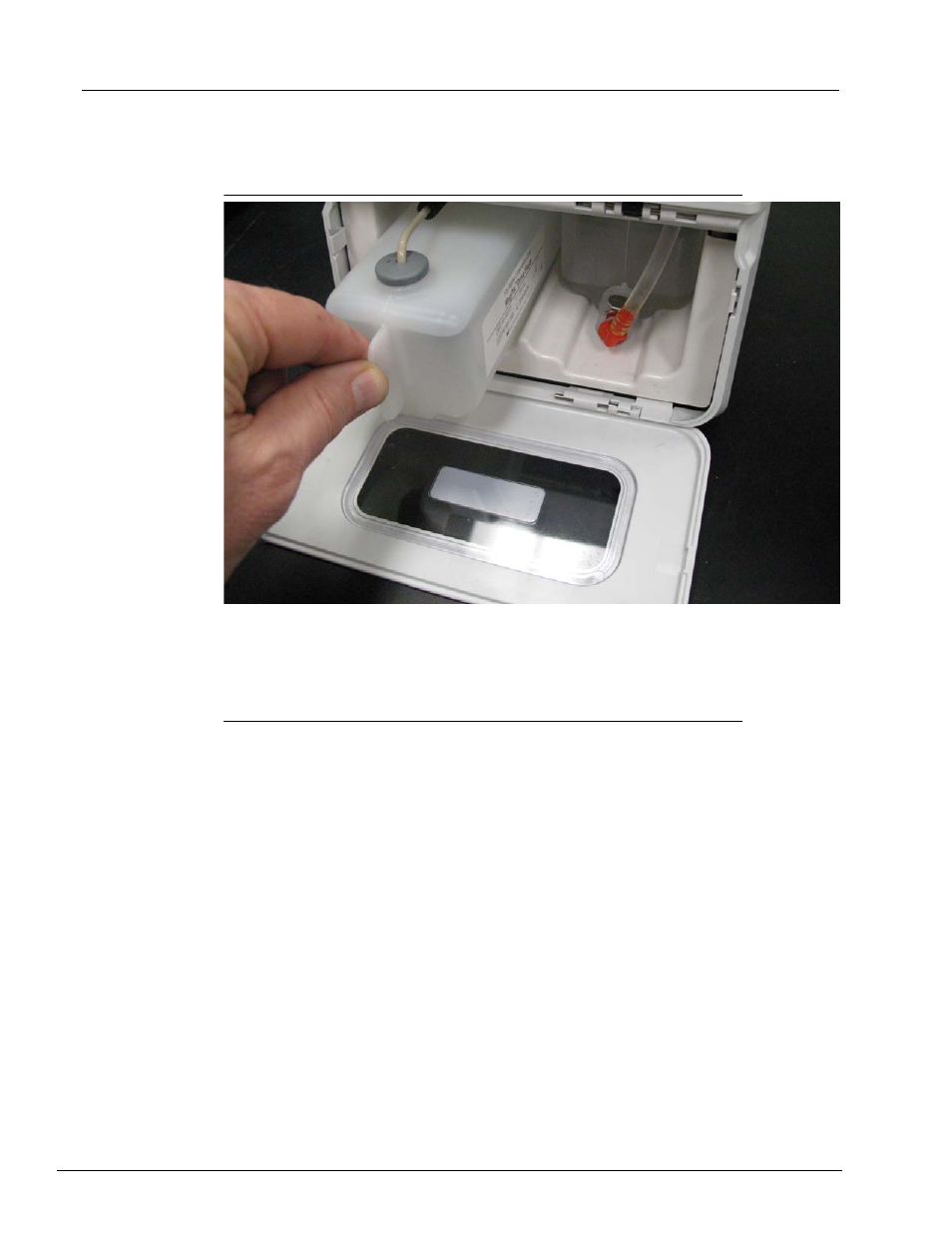

FIGURE 34. Sliding in the Drive Fluid Container
8. After the container is fully inserted, check the valve on the front of the waste fluid
container to make certain it is securely attached and close the door of the fluid
compartment.
Powering Up MAGPIX
MAGPIX has two on/off switches: a hard power switch and a soft power switch.
To power on MAGPIX:
1. Plug the power cord from the back of the instrument into a power outlet.
NOTE: Luminex recommends the use of a surge protector or UPS device
with MAGPIX. For more information, see “Uninterruptible Power
Supply (UPS) or Surge Protector” on page 44.
2. Turn on the hard power switch. This is the toggle switch at the lower right corner of the
back of MAGPIX.
NOTE: The hard power switch controls flow of power to the instrument.
