Luminex MAGPIX Installation and Hardware User (IVD) User Manual
Page 35
23
Installation Procedure
3. Open the door of the fluid compartment on the front of MAGPIX.

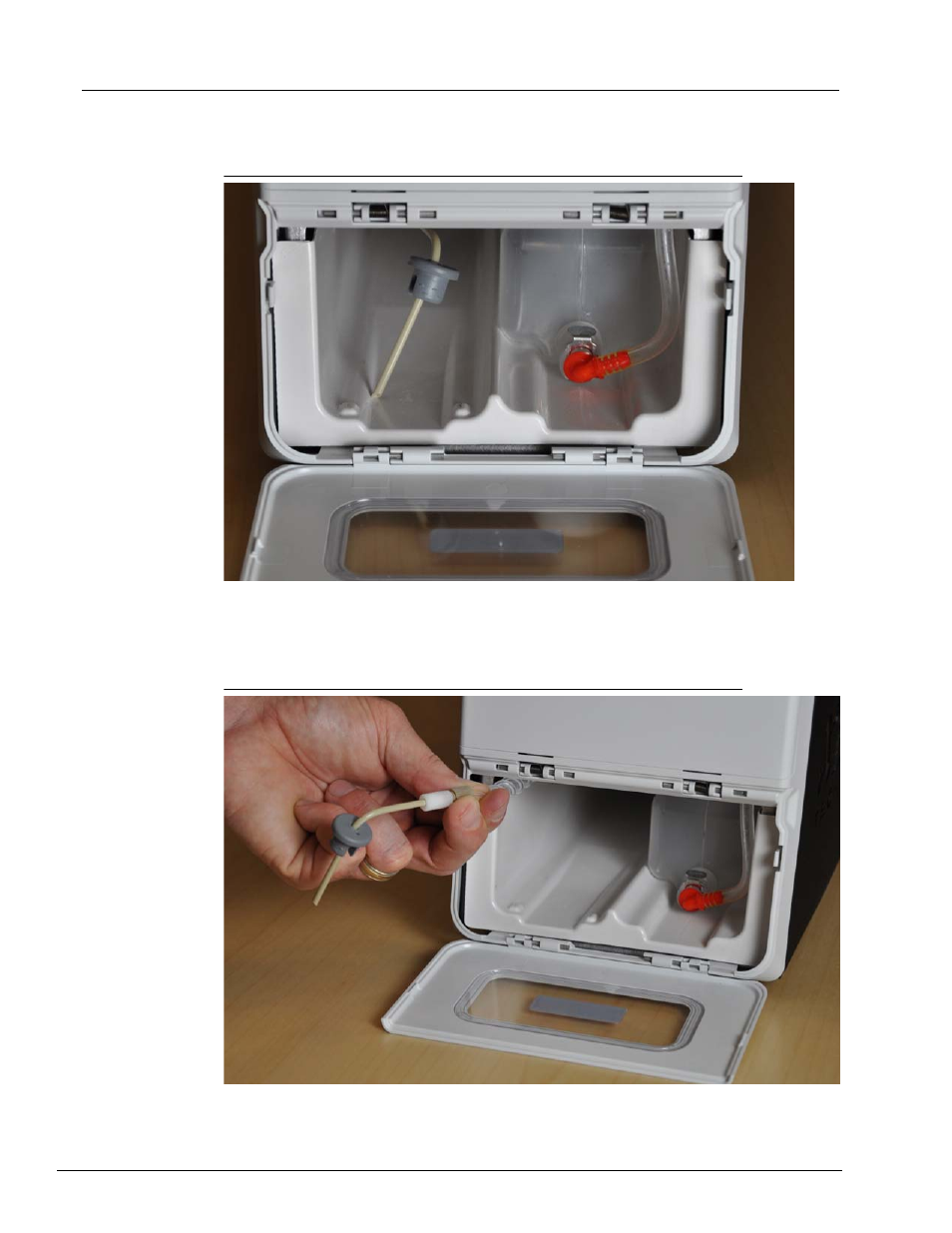

FIGURE 30.
The Fluid Compartment
4. Pull the Drive Fluid tube and plug in the left side of the fluid compartment forward until
it extends outside the compartment. Pull it to the left to allow room to insert the Drive
Fluid container.
FIGURE 31.
Pulling out the Drive Fluid Tube and Plug
