IntroductIon - lcr 600 InStrumentS and controlS
Text Buttons
Navigation Buttons

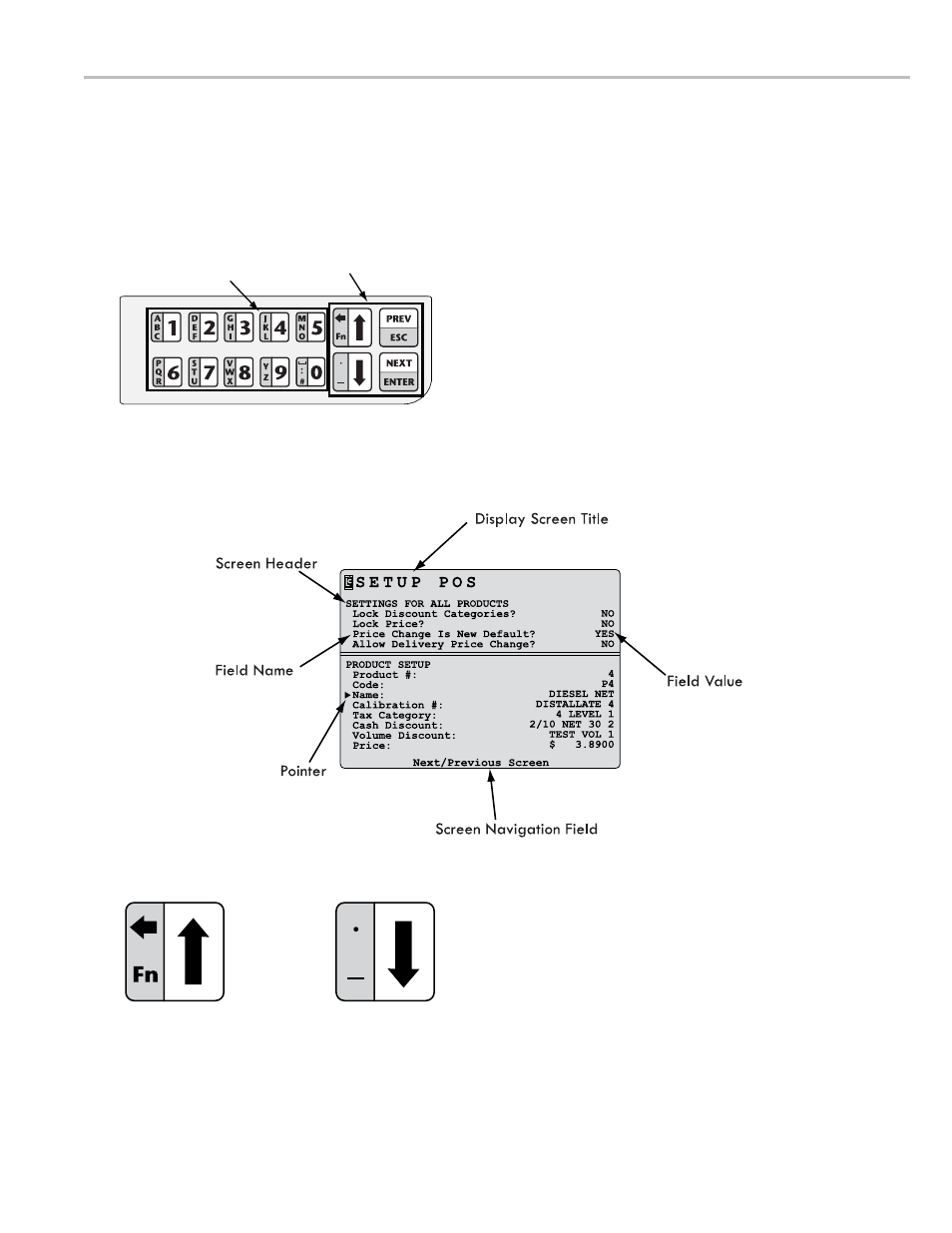

alphanumeric Keypad
The alphanumeric keypad serves as a navigation and data entry tool for the LCR 600. The four larger buttons on
the right side of the keypad are used primarily for navigating to fields on the display screen and navigating from one
display screen to the next. The ten smaller buttons on the left side are used to enter numbers, characters, and text
when changing the value of a field.
Arrow Button to scroll the
pointer up the left side of
the display
Arrow Button to scroll the
pointer down the left side of
the display
LCR 600 Alphanumeric Keypad
display Screens
LCR 600 display screens can contain up to 16 fields.
The values of most LCR 600 fields can be edited;
however, some fields are shown for data monitoring and
informational purposes only and can not be edited, for
example Temperature and Flow Rate.
SelectIng fIeldS
To select a field for editing, the LCR 600 display screens
use a pointer that scrolls up and down along the left side
of the screen. If the field is not editable, the pointer will
skip over it.
To select a field on a display screen:
1. Move the pointer  on the far left of the display to the
desired field using the  and  buttons.
2. Press the
EntEr button to open a list box or a field edit
box.
After a field is selected, the LCR 600 will bring up a list
box or a field edit box, depending on the field, where the
value of the field can be changed.
