33
calIbratIon Setup

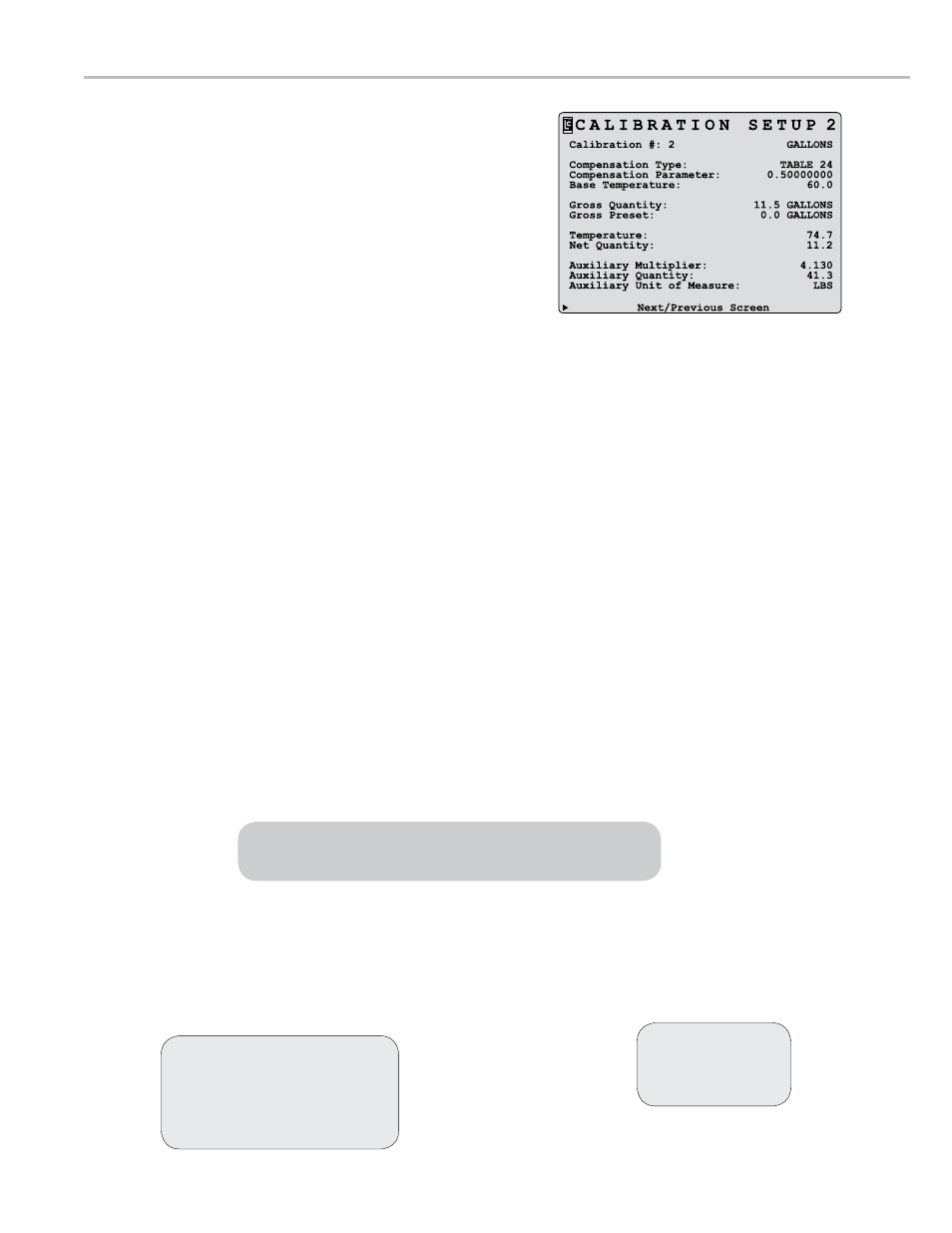

calIbratIon Setup 2
Calibration #:
(LB)
c - u - l
The active calibration of four possible calibrations (16
calibrations possible with POS upgrade). The fields shown
on the Calibration Setup 1 screen represent the values of the
Calibration #
shown. Any edits made to the fields are
attributed to the Calibration # shown.
Compensation Type: (LB)
c
The type of temperature volume compensation applied to
the active Calibration #. Refer to the Compensation
Types and Parameters table on page 28 to find the correct
compensation. If NONe is selected, deliveries will be in gross
quantities only.
Linear F • Linear C • API Table 24 • API Table 54 • API Table 6B • API Table 54B •
API Table 54C • API Table 54D • NH3 • NONE
Compensation Parameter: (fE)
c
The coefficient of expansion, the standard density, API gravity, or the specific gravity applied to the Compensation
Type
. This field has default values that are set when Compensation Type changes. Ensure the default value is
correct. Refer to the Compensation Types and Parameters table on page 30 for ranges.
Base Temperature: (fE)
c
The base temperature for temperature compensated deliveries. Although this field is editable for some
Compensation Type
values, it defaults to 60°F or 15°C according to the selected Compensation Type.
Gross Quantity: Display only
The gross volume of the latest calibration delivery.
Gross Preset: (fE)
c - u - l - p
The gross preset for the next calibration delivery.
Temperature: Display only
The current temperature reading of the RTD temperature probe.
Net Quantity: Display only
The net volume of the latest calibration delivery.
Auxiliary Multiplier: (fE)
c
The factor used to convert the measured volume of a delivery to an alternate volume or mass unit. If this field is 0, it
will not print on the delivery ticket. Users must furnish a conversion factor.
example
Auxiliary Multiplier = (SpGr) x (8.345 Ibs/gal)
SpGr =
specific gravity
Auxiliary Quantity: (fE)
c
The alternate volume or mass delivered using the Auxiliary Multiplier.
Auxiliary Unit of Measure: (LB)
c
The auxiliary unit of measure printed on the delivery ticket.
Gallons • Litres • Cubic M • LBS • KGS • Barrels • Other
fE - field Edit Box
LB - List Box
field type
l - locked
u - unlocked
c - Weights & measures calibration
p - Stop/pause
f - factory
Security clearance
