operation overview
After setting up the LCR 600 to your specifications, the
selector switch faceplate must be fastened and sealed
before the LCR 600 is ready for everyday use. While the
faceplate is on, the calibration position is not accessible.
Still, the LCR 600 can perform all necessary delivery
functions including: beginning deliveries, pausing
deliveries, ending and printing delivery tickets, setting
and making preset deliveries, printing duplicate tickets,
printing diagnostic tickets, ending shifts, and printing
shift tickets.
making a delivery
Making a delivery with the LCR 600 is a simple matter of
turning the selector switch to RUN, taking the nozzle to
the fueling point, and filling the tank. When the selector
switch is turned to RUN, the LCR 600 opens the control
valve, product flows through the meter (if the system
pump is on), and the LCR 600 displays the delivery
volume as it increases. When the delivery is completed,
turn the switch to PRINT to print the delivery ticket and
close the control valve. If you have an Epson slip printer,
make sure the printer has a new delivery ticket loaded
in the printer for each delivery. Epson roll printers do not
require paper replacement until the paper roll runs out.
To make a delivery with an epson slip printer:
1. Press RELEASE on the printer. Insert a blank delivery
ticket.
2. Press FORWARD on the printer to engage the ticket.
3. Turn the LCR 600 selector switch to RUN.
4. Take the nozzle to the fueling point and fill the tank.
5. Turn the LCR 600 selector switch to PRINT to print a
delivery ticket.
6. When the ticket finishes printing, press RELEASE on the
printer. Remove the ticket.
7. Insert a blank delivery ticket and press FORWARD on the
printer to engage the new ticket

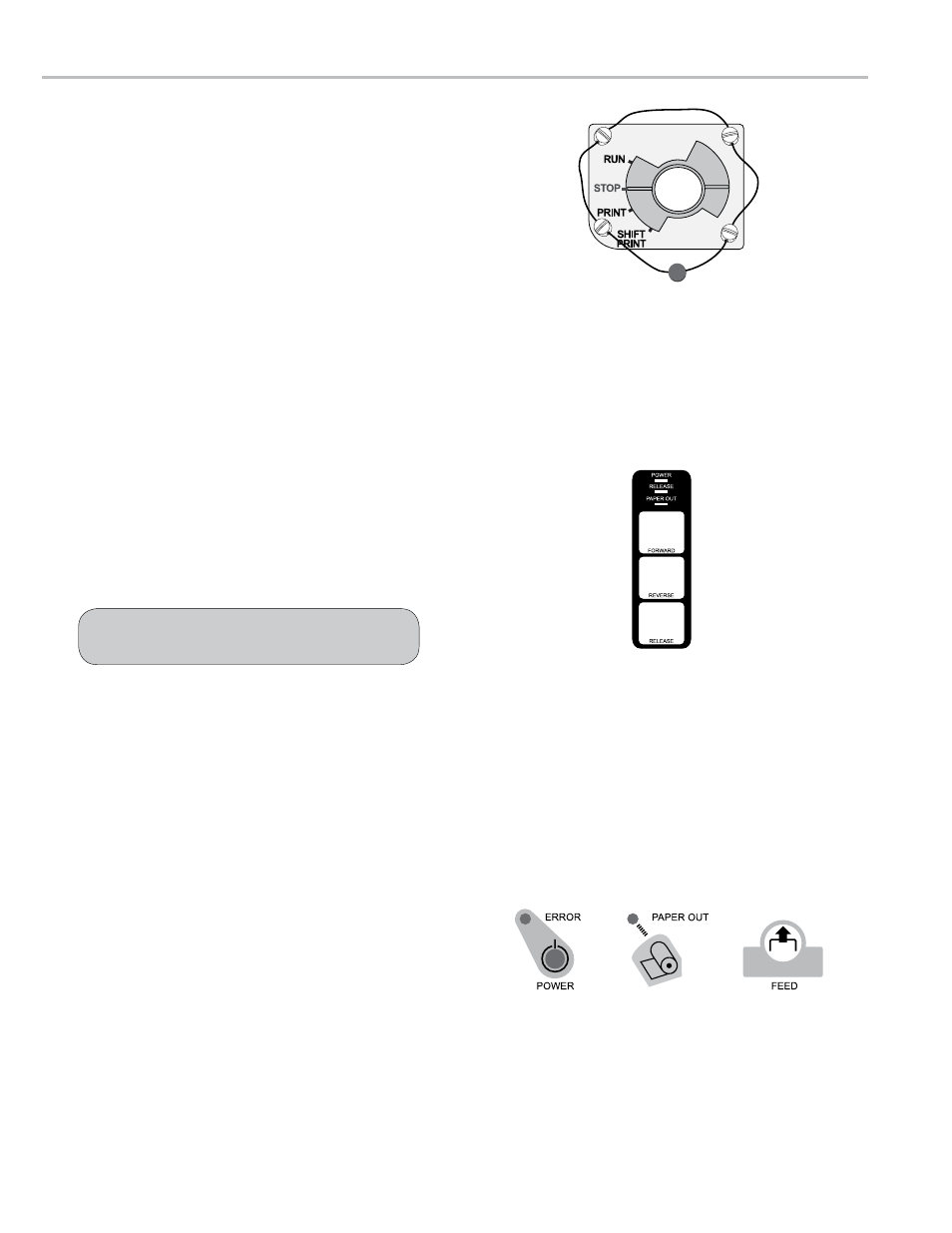

poSItIonS on the Selector SWItch
Run - opens the control valve to begin a delivery
Stop - closes the control valve to pause a delivery
pRint - ends a delivery and prints a delivery ticket
Shift pRint - ends a shift, prints a shift ticket, and resets
shift data in the LCR 600
SlIp prInter buttonS and IndIcator lIghtS
powER light - light indicates power is on
RELEASE light- light indicates ticket can be removed
pApER out light- light indicates no paper in printer
foRwARD button - moves paper forward
REvERSE button- moves paper backward
RELEASE button- release ticket for removal
roll prInter buttonS and IndIcator lIghtS
ERRoR light- light indicates printer unable to print (see
printer manual
powER light - light indicates power is on
pApER out light- light indicates no paper in printer
fEED button - moves paper forward
The LCR 600 will not begin a delivery without a ticket
engaged in the slip printer.
To make a delivery with an epson roll printer:
1. Check for paper in the roll printer.
2. Turn the LCR 600 selector switch to RUN.
4. Take the nozzle to the fueling point and fill the tank.
5. Turn the LCR 600 selector switch to PRINT to print a
record of the delivery.
operatIon - overvIeW/maKIng a delIvery
