52
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

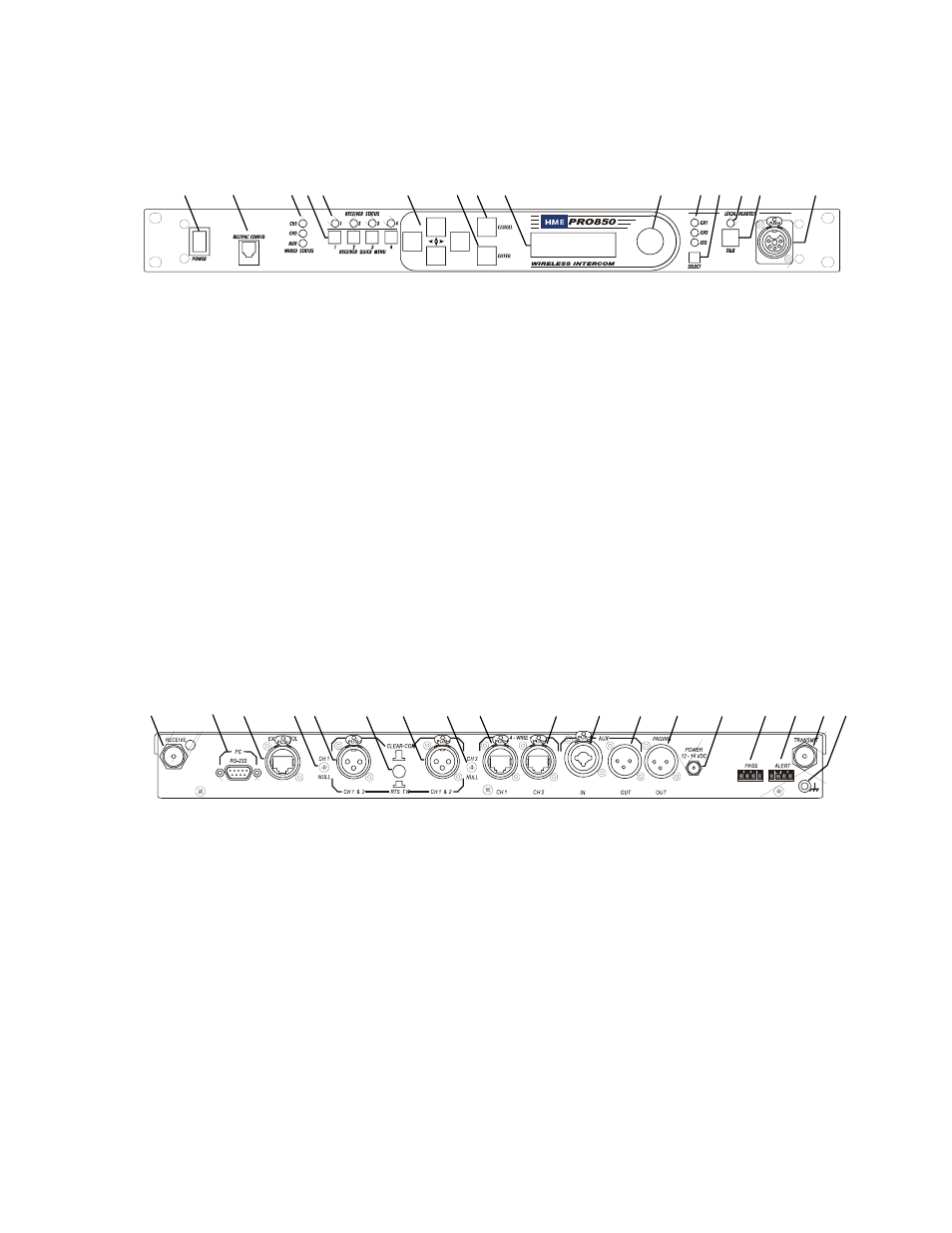

Base Station Front Panel Features:
1. POWER switch
2. BELTPAC CONFIGuration connector
(RJ10 telephone handset cable connector)
3. WIRED STATUS lights
CH1 = Channel 1 intercom status
CH2 = Channel 2 intercom status
AUX = ISO+ mode
4. RECEIVER QUICK MENU buttons
5. RECEIVER STATUS lights
6. Arrow buttons (move curser around on
menu)
7. ENTER button (selects function or setting)
8. CANCEL button (backs out of menus or
cancels operation)
9. Display screen
10. Multi-function knob (headset volume
control; adjustment for specific menu
selections)
11. Local headset function lights
12. Local headset function select switch
13. Local headset TALK indicator light
14. Local headset TALK switch
15. Local headset connector
Base Station Rear Panel Features:
16. Receiver antenna connector
17. 9-pin RS-232 computer connector
18. RS-422 interface
(for connecting two or more bases
together)
19. Channel 1 null adjustment
20. Channel 1 2-wire intercom interface
connector
21. Clear-Com/RTS select button
22. Channel 2 2-wire intercom interface
connector
23. Channel 2 null adjustment
24. Channel 1 RJ45 4-wire intercom interface
connector
25. Channel 2 RJ45 4-wire intercom interface
connector
26. Auxiliary input connector
(accepts XLR plug or standard phone plug)
27. Auxiliary output connector
28. Paging output connector
29. 12-14VDC power jack
30. Page relay connector
31. Alert relay connector
32. Transmitter antenna connector
33. Grounding screw
