Audio Mix Settings:
Each audio output in the system has a master output level adjustment and a set of mix-level
adjustments. The master sliders can be adjusted between –37.5 dB and +12 dB in 1.5 dB steps. In
each case, 0 dB is considered to be nominal. Each mix-level slider is an attenuator and has a range
from –90 dB to 0 dB in 0.25 dB steps.
You can change the Base Audio Mix levels from the Configure tab>Edit Advanced Base
Configurations

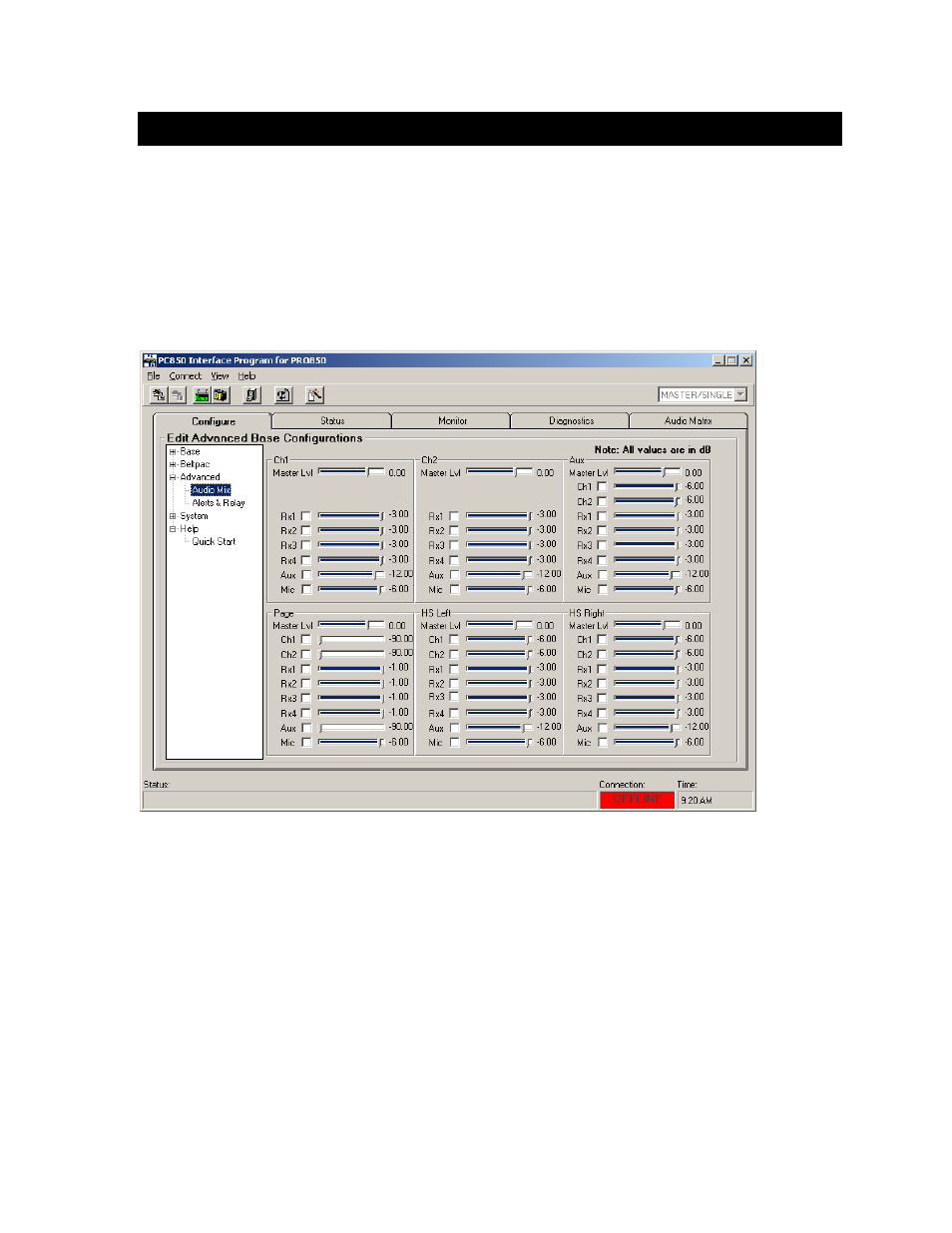

box> Advanced>Audio Mix path as shown below:
Intercom Output Mixing
Select Ch1 or Ch2 and then select the box next to Rx1-Rx4, Aux and/or Mic to enable input. Use the
corresponding slider to adjust output level in 0.25dB increments for the desired mix.
Check the boxes for Rx1-Rx4 only if you want receiver audio continuously fed to the Intercom
Output. Leave them unchecked for normal operation. Likewise, leave Mic unchecked for
normal operation.
Adjust the Master slider if necessary to match levels between the PRO850 and the external audio system.
Auxiliary Output Mixing
Select the box next to Ch1, Ch2, Rx1-Rx4, Aux and/or Mic to enable input and then use the
corresponding slider to adjust output level in 0.25dB or 2.25dB increments for the desired mix.
Check the boxes for Rx1-Rx4 only if you want receiver audio continuously fed to the Aux Output.
Leave them unchecked for normal operation.
Adjust the Master slider if necessary to match levels between the PRO850 and the external audio system.
NOTE: With the Master slider in the 0 dB position, a 0 dBFS signal will produce a +20 dBu level at the
output (unloaded).
