29
Installationandwiring
8.3.4. Wiring a version with a single m12 fixed connector and an
npn transistor output and a current output
1
2
3
4
V+ (14-36 V DC)
NPN transistor output (TR1)
Not connected
0V

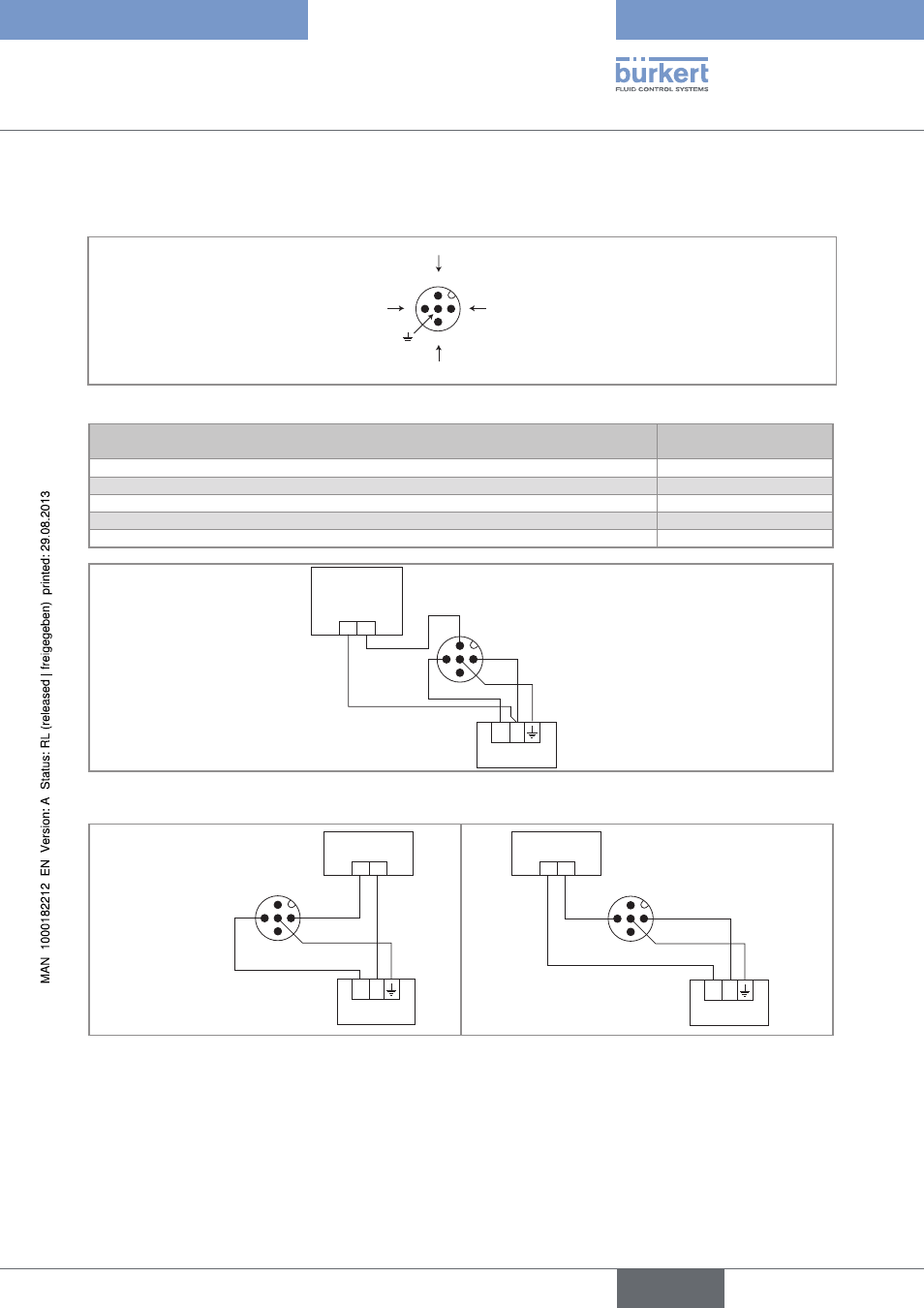

Figure 19 : Pin assignment of the male fixed connector on a version with 1 NPN transistor output and 1 current output
pin of the female m12 connector available as an accessory (order code
438680)
colour of the wire
1 brown
2 white
3 blue
4 black
5
grey
14-36 VDC
+ -
1
2
3
4
Power supply
Load (solenoid
valve for ins-
tance)
white
blue
brown
grey
Figure 20 : Wiring the NPN transistor output (parameter setting "NPN/sink", cannot be changed), of a version with 1 M12
fixed connector, 1 NPN transistor output and 1 current output
14-36 V DC
+ -
+ -
1
2
3
4
Power supply
4-20 mA input (external
instrument)
brown
blue
grey
14-36 V DC
+ -
+ -
1
2
3
4
Power supply
4-20 mA input (external
instrument)
brown
blue
grey
Figure 21 : Possible electrical connections of the current output only, on a version with 1 M12 fixed connector, 1 NPN
transistor output and 1 current output
English
Type 8026- 8036- 8076
