94 - 1150
R
ETROFITTING OF MODULES
Slot assignment
The slots for the individual modules are printed on the back panel of the housing:
Retrofitting of modules

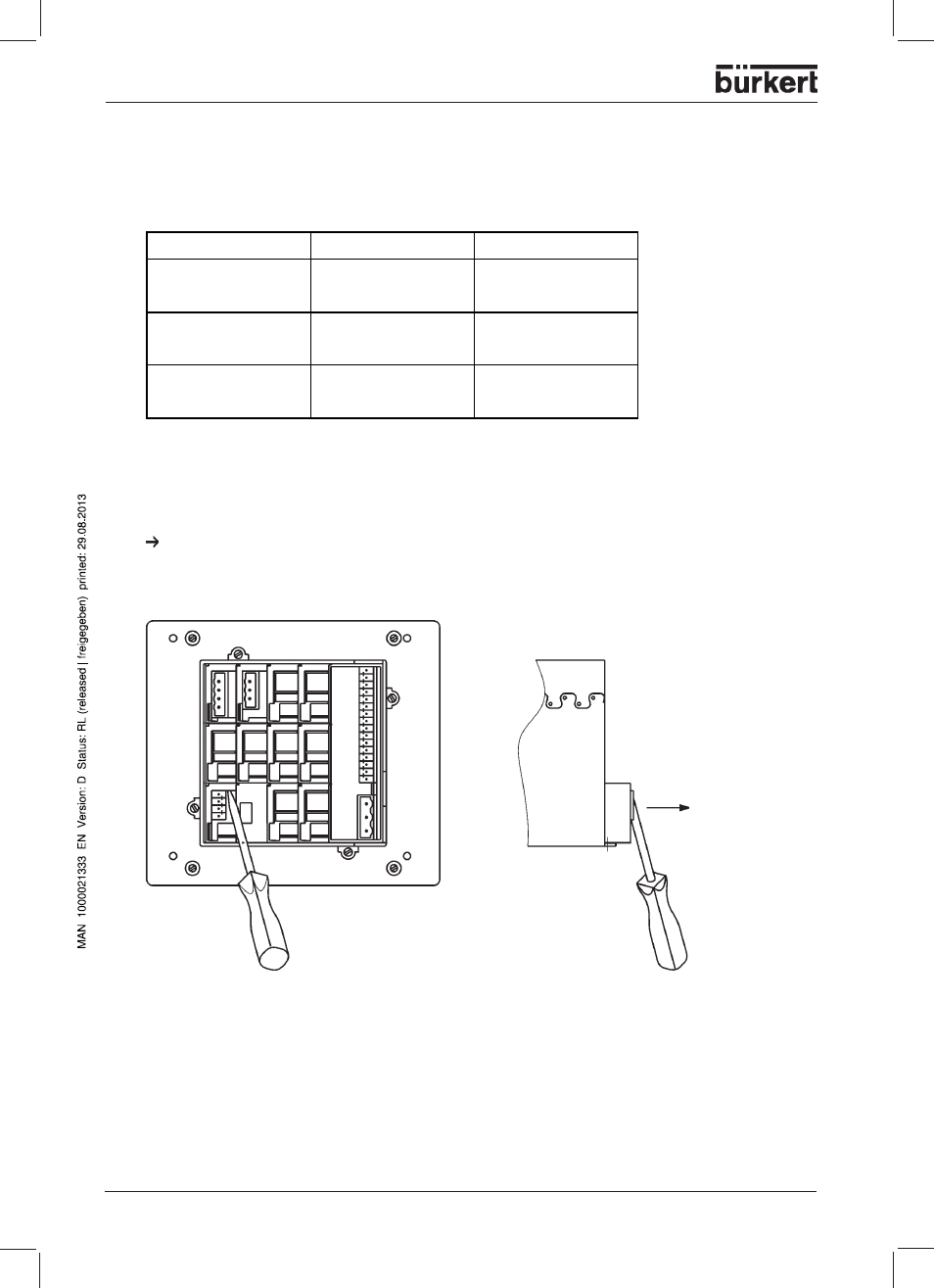

Remove dummy module or existing module by using a screwdriver or similar tool.
Slot Module Function
Input 1
...
Input 4 Universal input Analog input 1
...
Analog input 4
Output 1
...
Output 6
Outputs Output 1+7 1
...
Output 6+12 1
Com 2 RS422/485
PROFIBUS-DP
Ethernet Interface 2
1 Number of output, if two outputs are available on the board.
