40 - 1150
O
PERATION AND
C
ONTROLLER FUNCTIONS
Overview of operation

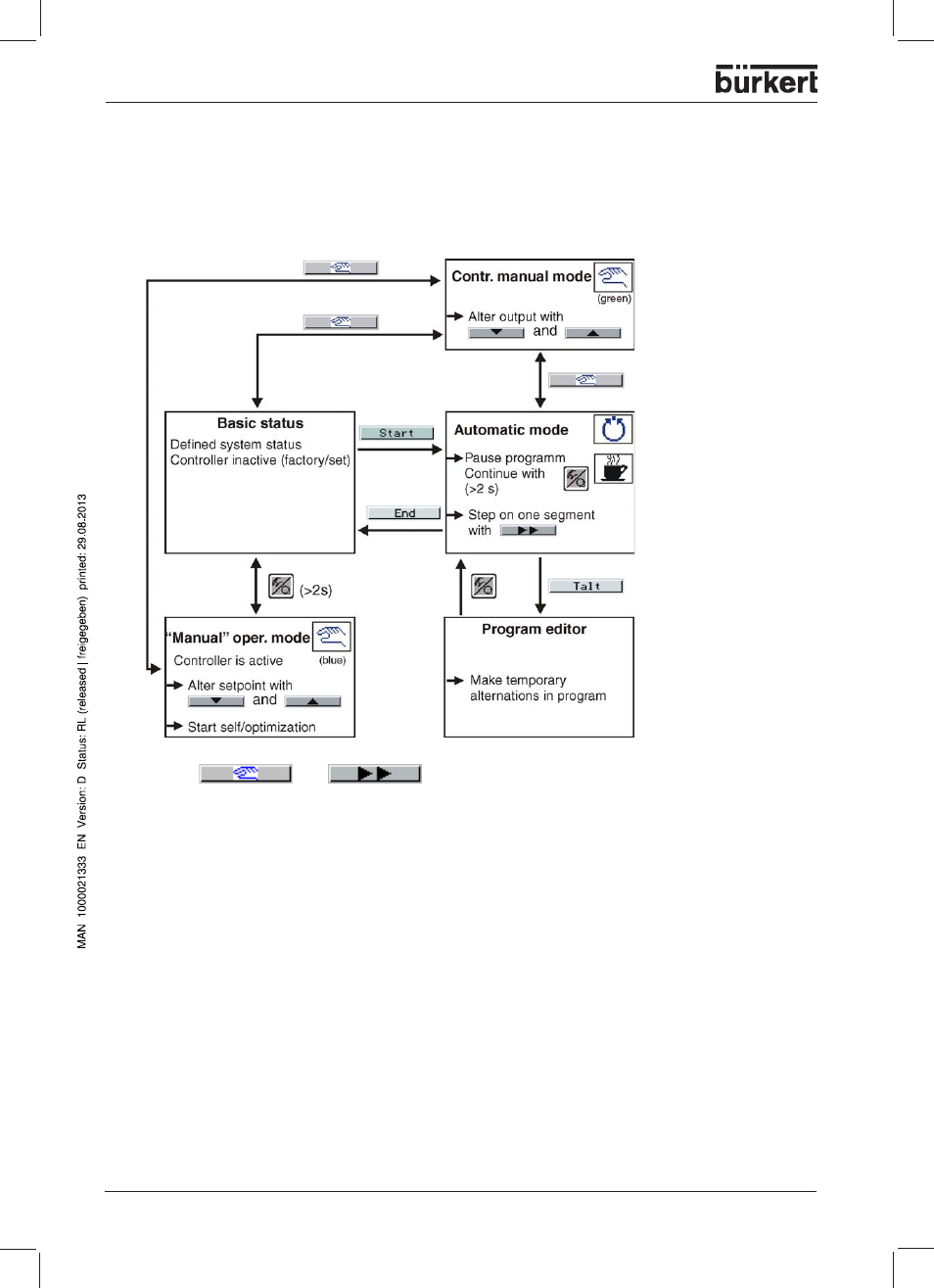

The diagram below provides an overview of the different operating modes and operating options of a pro-
gram controller.
Many operating options can also be implemented via the logic functions.
Buttons and can be accessed via “Details”.
In basic status the system state is defined, with the following factory settings for all program channels:
controller, control contacts and limit comparators are inactive
the controller setpoints are 0
parameter set 1 is active for all controllers
The system state can be modified via the setup program.
Basic status
Temporary alterations are modifications to the current program in the program editor. They are not stored in
the program memory, i.e. modifications will be lost after a restart.
In the case of alterations concerning the current segment, the setpoint sequence is automatically adapted.
Temporary alterations
