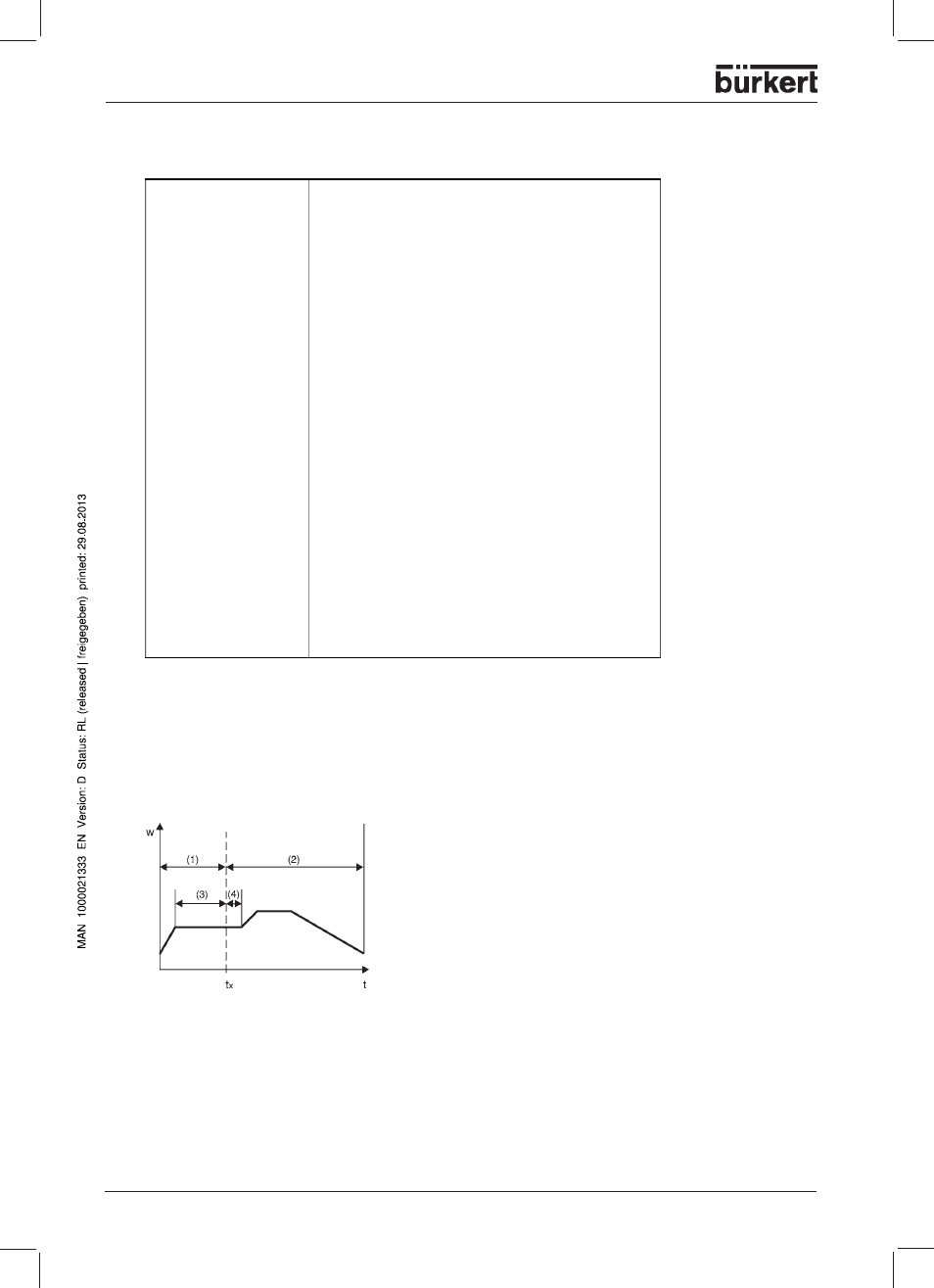

Definition of program times
Different times are defined for the program controller/generator, which can be internally processed and
displayed.
(1) Program time
(2) Remaining program time
(3) Segment time
(4) Remaining segment time
Switched off
Output 1 C1
Output 2 C1
Output 1 C2
Output 2 C2
Output 1 C3
Output 2 C3
Output 1 C4
Output 2 C4
Limit comp. 1
...
Limit comp. 16
Contr. contact 1
P
...
Contr. contact 8 P
Logic input 1
...
Logic input 6
Logic 1
...
Logic 8
Binary logic value
Program end
P
Ramp end 1 F
...
Ramp end 4
F
Tolerance band P
Manual mode C 1
...
Manual mode C
4
Transmitter
Logic OFF
Logic ON
Switched off
Controller output 1 for Controller 1
Controller output 2 for Controller 1
Controller output 1 for Controller 2
Controller output 2 for Controller 2
Controller output 1 for Controller 3
Controller output 2 for Controller 3
Controller output 1 for Controller 4
Controller output 2 for Controller 4
Controller output 1
...
Limit comparator 16
Control contact 1
...
Control contact 8
Logic input 1
...
Logic input 6
Result of logic linkage 1
...
Result of logic linkage 8
any binary logic value (from address)
Program end signal
Ramp end signal for controller 1
...
Ramp end signal for controller 4
Signal on going above/below tolerance band
Controller 1 in manual mode / program pause
...
Controller 4 in manual mode / program pause
Signal always active
Logic 0
Logic 1
