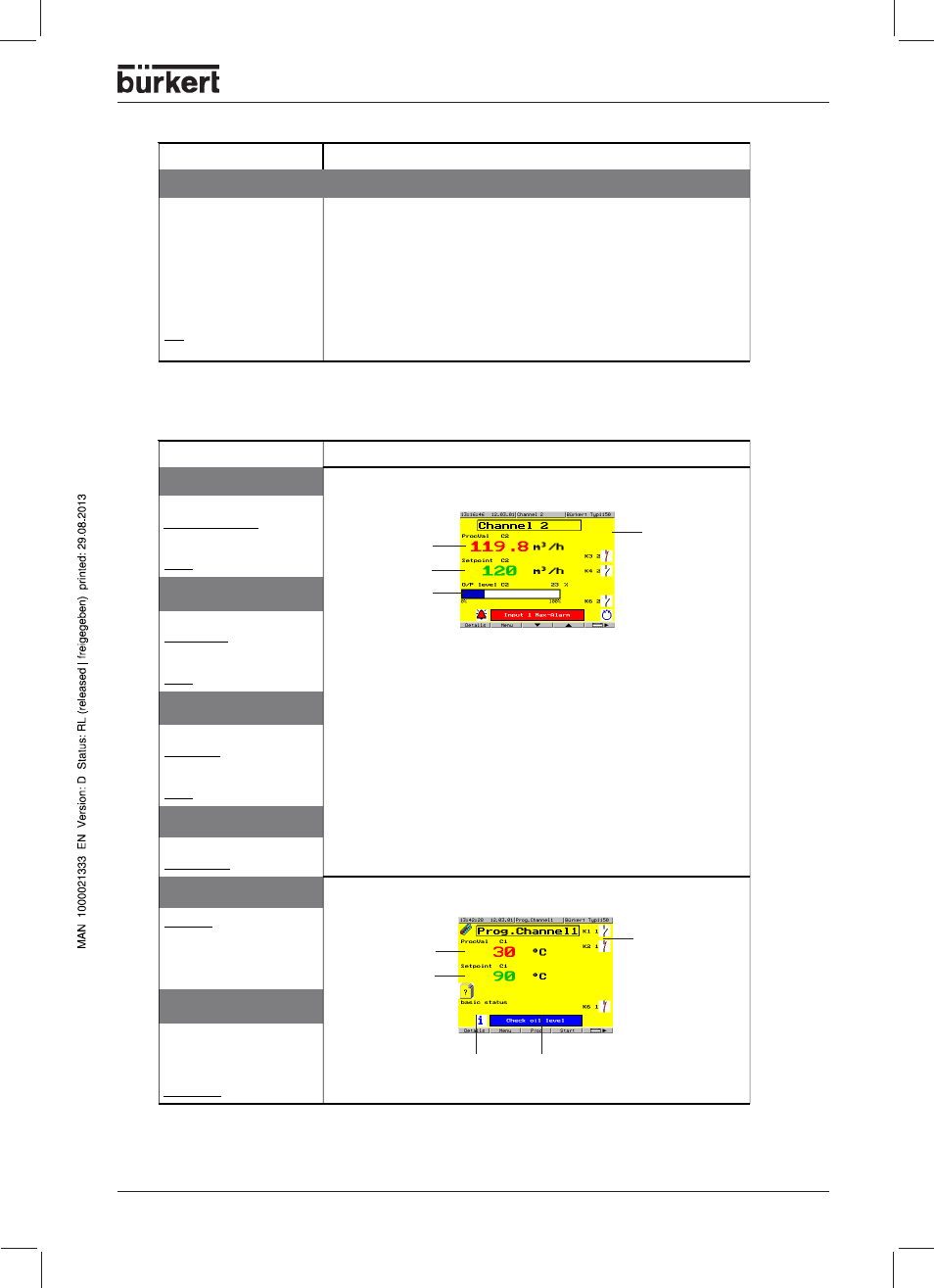

Analog value 1 Display for fixed-setpoint controller:
... / Display (Analog selector)
Process value C1
... / Decimal place
xxx.x
Analog value 2
... / Display (Analog selector)
Setpoint C1
... / Decimal place
xxx.x
Analog value 3
... / Display (Analog selector)
Output C1
... / Decimal place
xxxx.
Logic value 1 to 6
(Binary selector)
Output 1 C1
Program value 1 P Display for program controller:
Segment
RemSegT PCh1 to PCh4
SegTime PCh1 to PCh4
Program time
RemProgT
Program value 2 P
Segment
RemSegT PCh1 to PCh4
SegTime PCh1 to PCh4
Program time
RemProgT
Value / selection Description
Operation loop
... / Controller pic. 1
... /
Controller pic. 2
... / Controller pic. 3
... / Controller pic. 4
... / Collective pic.
... / Recording
... / Custom pic. 1
... / Custom pic. 2
Yes
No
The screen templates that are to appear in the screen operating loop can be
selected.
Controller pictures / Controller picture 1 (2 to 4) / ...
Analog value 3
Logic values
Analog value 1
Analog value 2
Logic value
Analog value 1
Analog value 2
Program
value 1 Program
value 2
