18 - 1150
I
NSTALLATION
, C
OMMISSIONING AND
M
AINTENANCE
General notes
Location and climatic conditions
Close mounting
• The conditions at the location must meet the requirements specified in the technical data.
• The ambient temperature at the location should be - 5 to + 50 °C with a relative humidity below 75%
• Minimum spacing of panel cut-outs
horizontal
min. 54 mm
vertical min. 54 mm

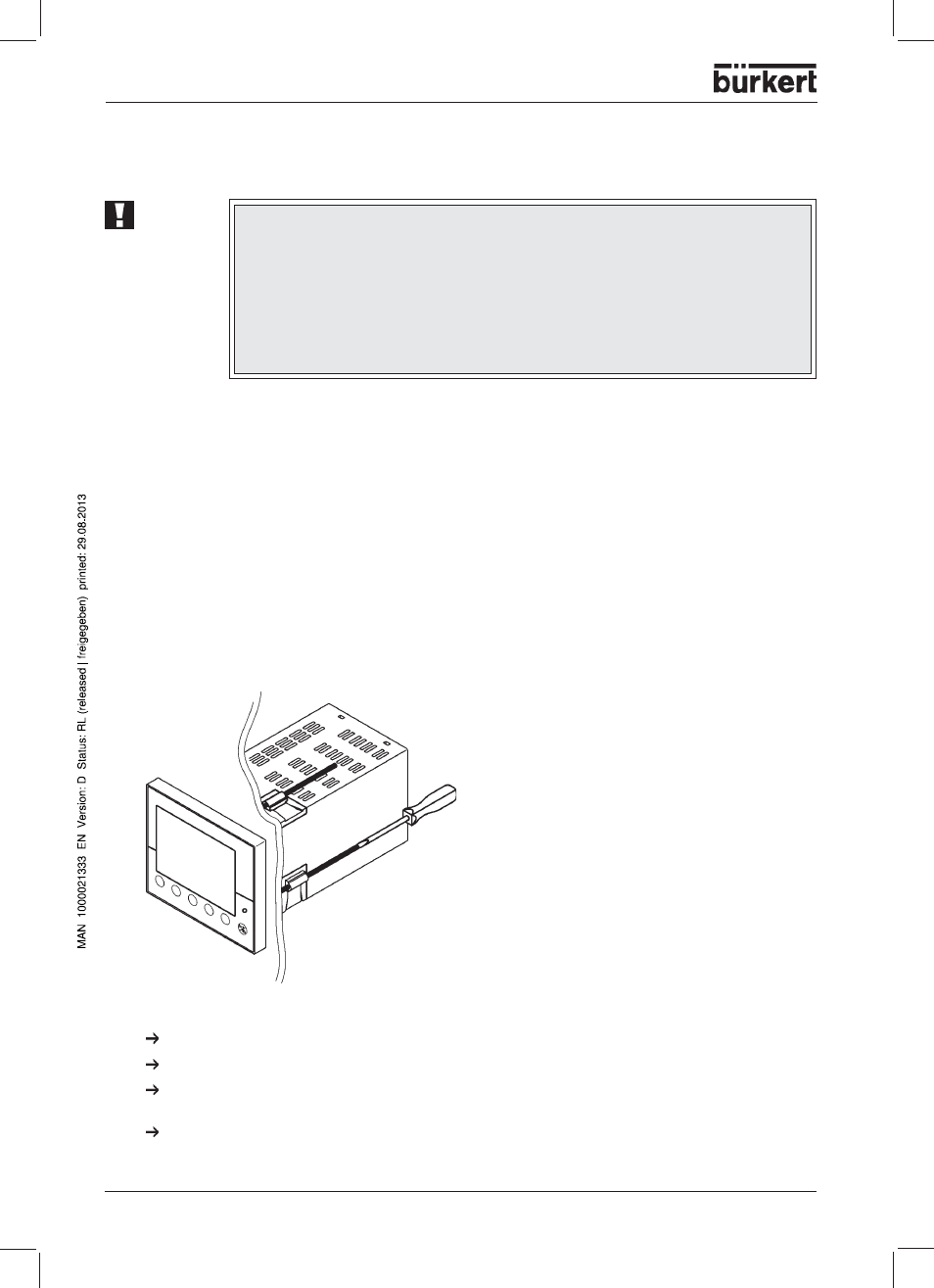

Assembly
From the back, fit the seal that is supplied onto the instrument.
Insert the instrument from the front into the panel cut-out.
From behind the panel, slide the mounting brackets into the guides on the sides of the housing. The flat
faces of the mounting brackets must lie against the housing.
Push the mounting brackets up to the back of the panel, and tighten them evenly with a screwdriver.
• This device should only be installed or repaired by qualified personel using the correct
tools!
• Always disconnect the power this device before servicing or changing signal
connections!
• Failure or interference may result from contamination, short circuit, voltage interruption
or faulty/missing wiring termination.
• Check for loose or improper electrical connections or under voltage if unit does not
power up.
ATTENTION!
