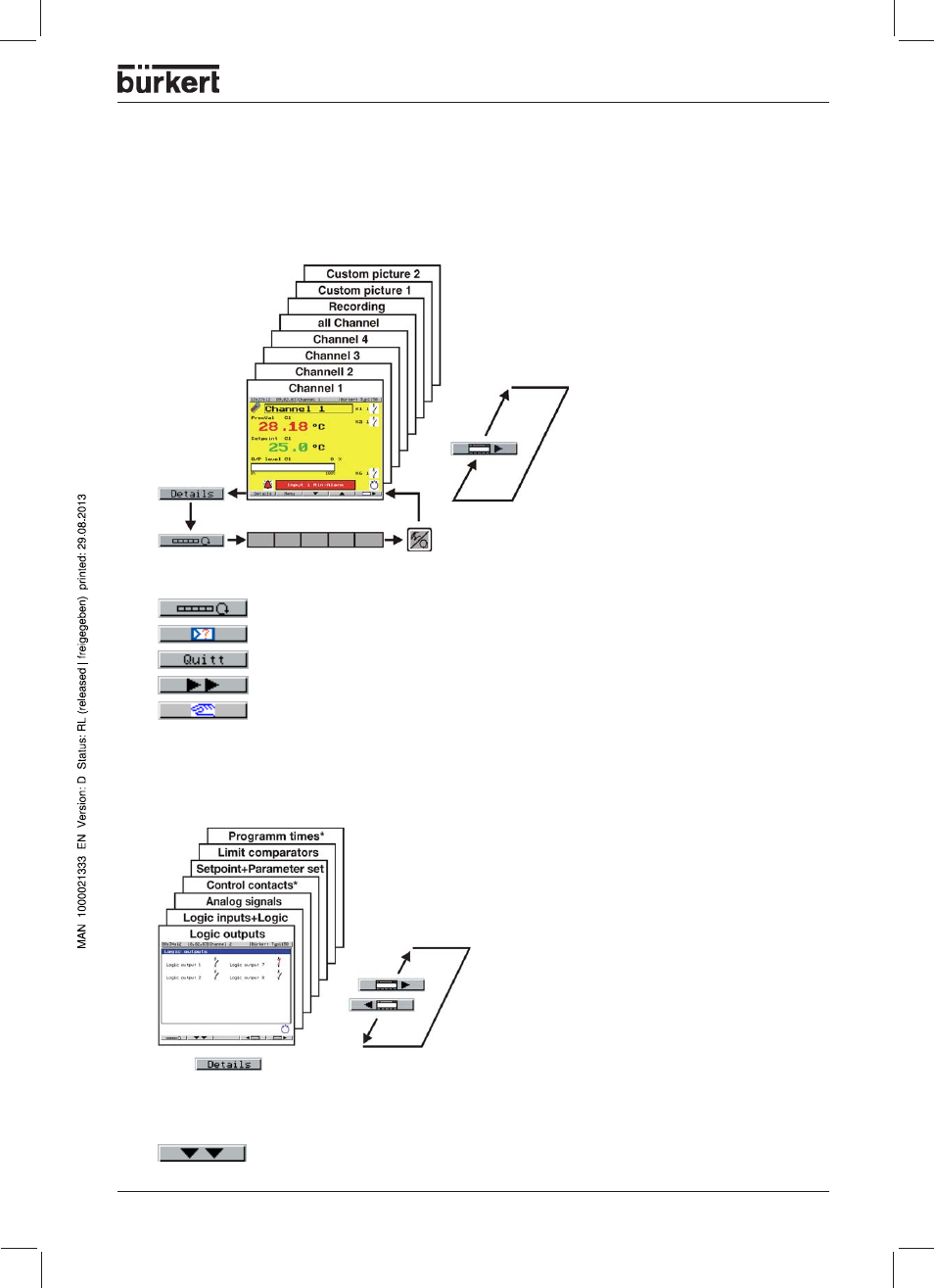

Screen operating loop
The operating loop contains the screen templates for a maximum of four controller channels, the collective
picture of all the active controller channels, the recording function as well as two freely definable screen
templates. The screen templates can be individually switched into display.
(see Chapter Configuration/Display)
Meaning of the keys :
- additional functions of the softkeys
- start/cancel self-optimization for the channel that is displayed
- acknowledge alarm messages and limit comparators
- step on one segment (program controller)
- controller manual mode (program controller)
Details
- scroll screen down
The states and values of the various process variables are presented in a clear and structered manner.
* Screens only available for process controllers
