The segments are edited in sequence when creating a new program.
Append a new segment to the last segment of the profile trace with
Entering a new program
Existing segments can be copied and inserted in another position in the program. The segment that was
copied is inserted above the cursor position.
Position the cursor on the segment to be copied
Copy segment with
Position the cursor on the desired position
Insert segment with
Copying segments
A new segment can be inserted above the cursor position into an existing sequence of segments.
Insert segment with
Inserting segments
Delete marked segment with
Removing segments

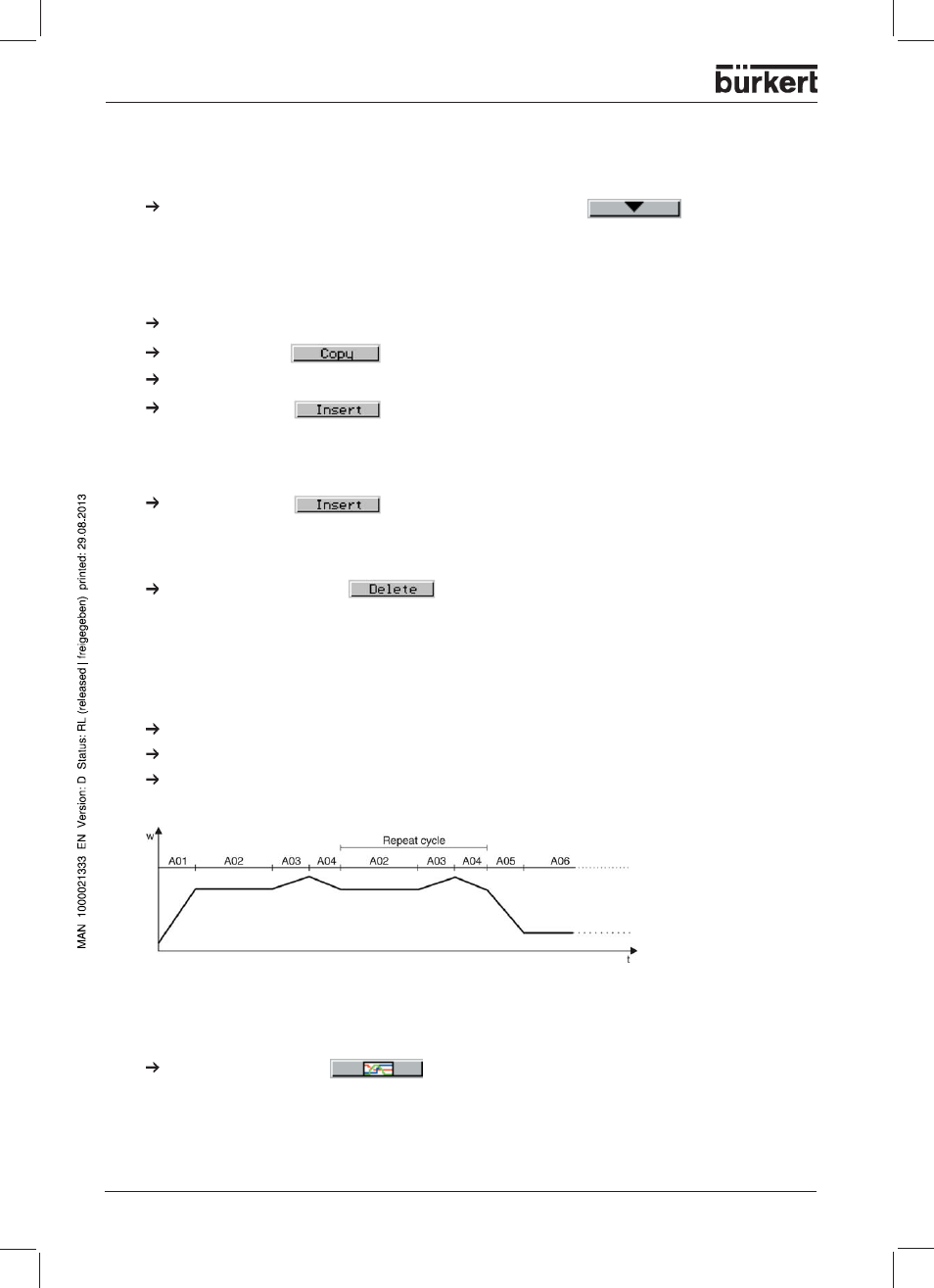

A group of segments that are arranged in sequence can be repeated up to 99 times or repeated endlessly
(input: -1). The repeat cycles are programmed in the last segment of the group.
Example: S02 - S04 are to be repeated once.
Edit segment 4
Set number of repeat cycles to Cy=1
Set start segment of repeat to No.=2
Entering repeat cycles
The program segments entered in the table can be graphically displayed and checked. Repeat cycles are
not taken into account for the display.
Show program profile with
Checking the program profile
