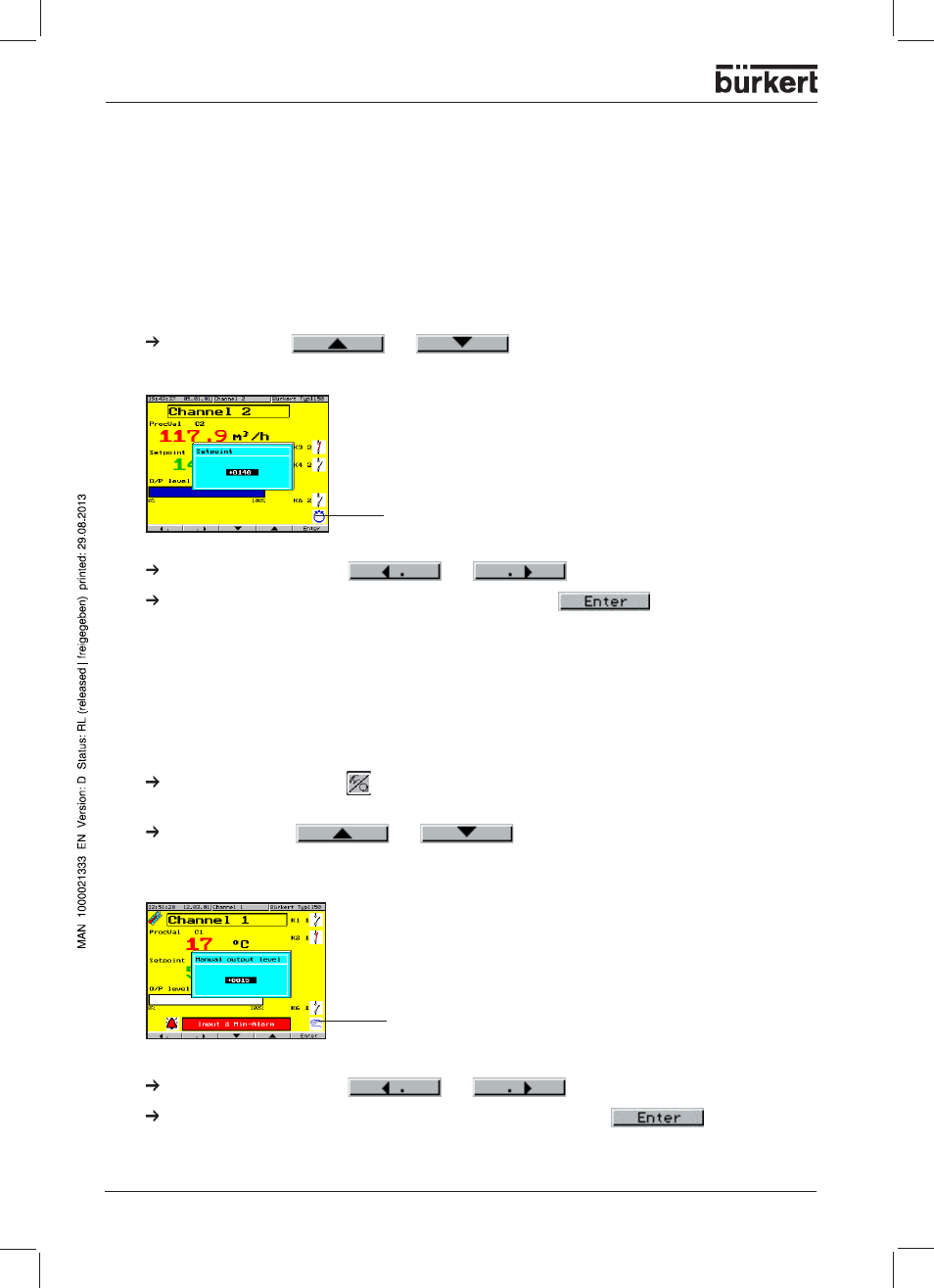

Operation “Controller“

Altering the setpoint

The active setpoint of a controller channel can be altered in the corresponding screen template. The
controller must be in automatic mode.

Alter setpoint using

and

(the meaning of the softkeys changes, an input window appears)

If the instrument has been configured as a fixed-setpoint controller, the following actions can be performed
in automatic/manual mode:

automatic mode

Shift the decimal point using

and

New setpoint is automatically accepted after 2 sec or by using

Manual mode

The control loop of the controller channel that is displayed can be interrupted by switching to manual
mode.

Switch to manual mode with

(hold key down for at least 2 sec!)

(the symbol for manual mode appears in the operating mode display)

Alter the output with

and

(the meaning of the softkeys changes, an input window appears)

Altering the output

manual mode

Shift the decimal point using

and

The new output is automatically accepted after about 2 sec or by using
