36 - 1150
O
PERATION AND
C
ONTROLLER FUNCTIONS
Operating „program controller/generator“
Program editor
50 programs with up to 99 segments can be programmed; a total of 1000 segments can be implemented.
Programs are created by programming setpoints and segment times, segment by segment.
Furthermore, the states of the control contacts 1 — 8 and the active parameter set can be defined for
each segment.
The setpoint profiles can be output either as a ramp or a step (configurable).

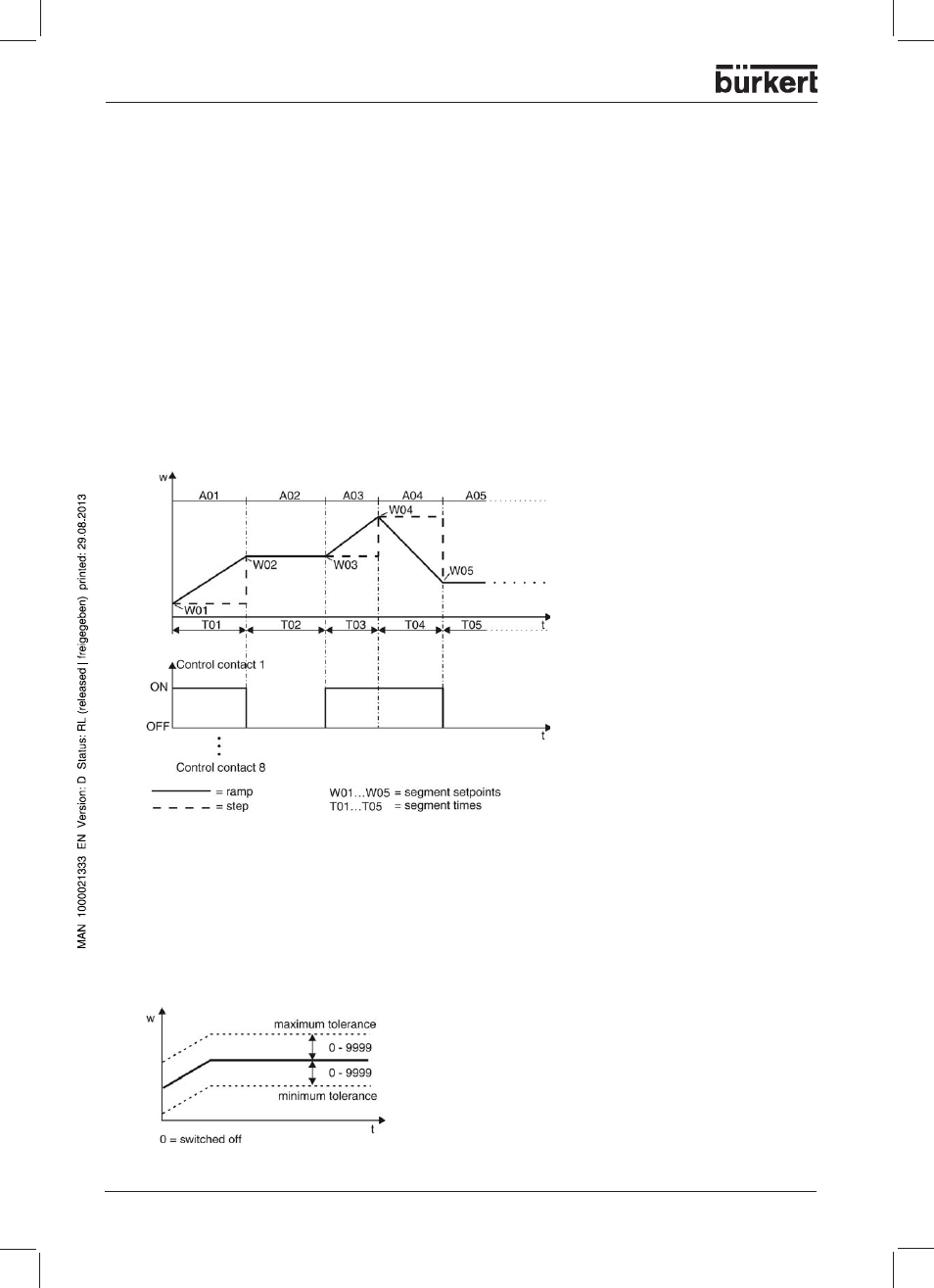

Output as a ramp has been chosen for the following diagrams.
If the instrument is configured as a program controller/generator, programs have to be created first, by
using the internal program editor or the setup program.
General
To monitor the process value, a tolerance band can be applied around the setpoint profile for each
segment.
If the upper or lower limit is infringed, a tolerance band signal is generated, which is internally processed
or produced via an output.
(see Chapter “Outputs and Logic functions“)
Tolerance band
