1150 - 37

O

PERATION

AND

C

ONTROLLER

FUNCTIONS

Call up with

edit program

Select program using the cursor keys

Select program channel using the cursor keys

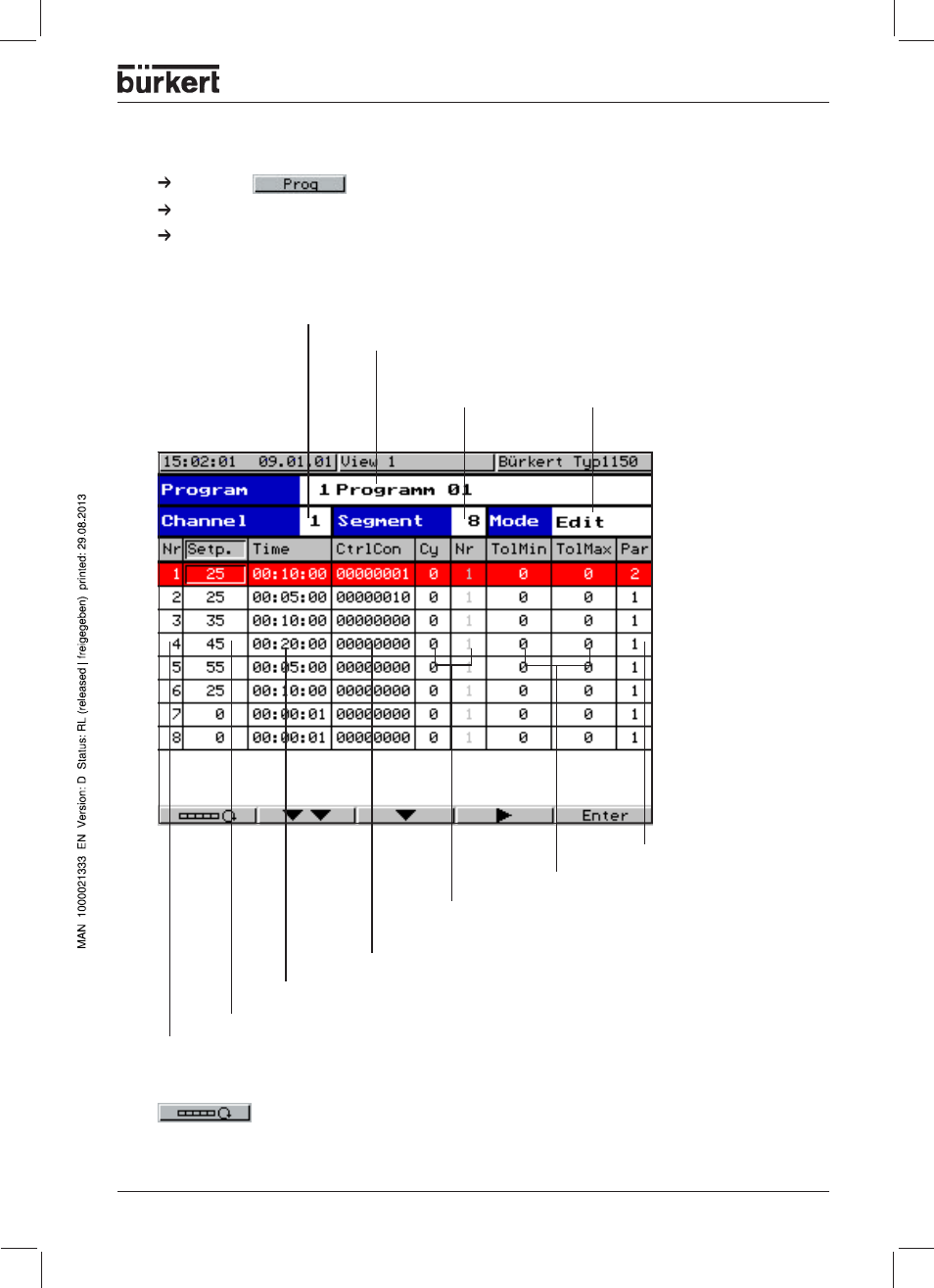

Program editor

Parameter set number

Lower and upper tolerance band

Number of repeat cycles (Cy) with

start segment (No.)

Control contacts 8 — 1 (1=On)

Segment time

Segment setpoint

Segment number

- call up additional softkey functions

Number of program channel

Program number and name

Number of program

segments

Entry mode

- edit

- temporary alteration
